ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ for BMW MINI Clubman F54 One
This ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ชุดปั๊มสุญญากาศน้ำมัน | 1 | 11417624135 | Shop at ECS Tuning | ||||||
| หากจานโซ่ 8600425 | ||||||||||
| กรุณาดูที่ คู่มือการซ่อม | ||||||||||
| 02 | จานโซ่ | 1 | 11418600425 | Shop at ECS Tuning | ||||||
| หากปั๊ม 7624135 เป็น AI รุ่นที่เก่ากว่า | ||||||||||
| 03 | สกรู Isa | M8X35-PHR | 1 | 11417823426 | +core | Shop at ECS Tuning | ||||
| 04 | โซ่ | 1 | 11418482270 | Shop at ECS Tuning | ||||||
| 05 | โบลท์ ASA | M8X35 | 4 | 11418612615 | Shop at ECS Tuning | |||||
| 06 | ท่อไอดีพร้อมปะเก็น | 1 | 11418513665 | Shop at ECS Tuning | ||||||

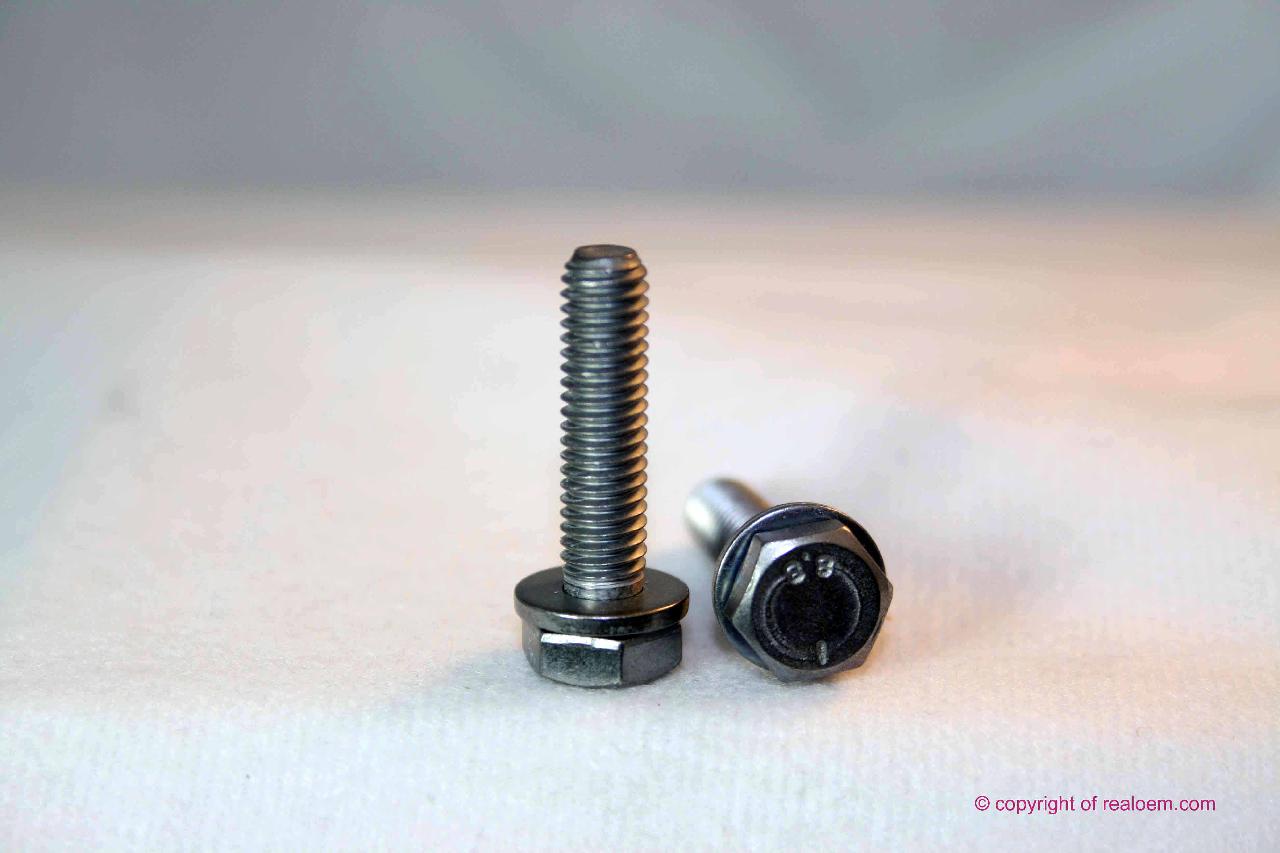

| 07 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
