ท่อร่วมไอเสีย for BMW 3 Series E36 318ti (1999)

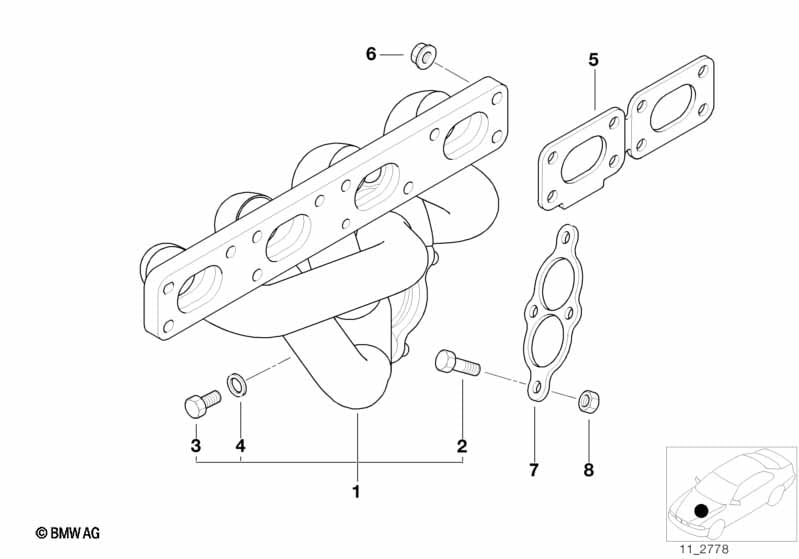

This ท่อร่วมไอเสีย technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ท่อร่วมไอเสีย | TLEV | 1 | 01/1997 | 11621433967 | $350.60 | ENDED | Shop at ECS Tuning | ||
| 02 | โบลท์หัวหกเหลี่ยม | M10X40-SW16 | 4 | 09/1996 | 11621427586 | $21.57 | Shop at ECS Tuning | |||
| 03 | ปลั๊กสกรู | CM8X1 | 2 | 09/1996 | 07119919210 | $2.24 | Shop at ECS Tuning | |||
| 04 | ปะเก็นวงแหวน | D8X11,5-CU | 2 | 09/1996 | 07119963045 | $0.47 | Shop at ECS Tuning | |||
| 05 | ปะเก็นปลอดแร่ใยหิน | 2 | 09/1996 | 11621435366 | $10.94 | Shop at ECS Tuning | ||||
| จำเป็นสำหรับการซ่อม | ||||||||||
| -- | น็อตหกเหลี่ยม | 8 | 09/1996 | 11721437202 | $0.72 | Shop at ECS Tuning | ||||
| 06 | น็อตหกเหลี่ยม | X | 09/1996 | 11721437202 | $0.72 | Shop at ECS Tuning | ||||
| 07 | ปะเก็นปลอดแร่ใยหิน | 1 | 09/1996 | 18301711969 | $18.21 | Shop at ECS Tuning | ||||
| จำเป็นสำหรับการซ่อม | ||||||||||
| -- | น็อตหกเหลี่ยม | M10 | 4 | 09/1996 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| 08 | น็อตหกเหลี่ยม | M10 | 4 | 09/1996 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
