ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ for BMW XM G09 XM (2025)

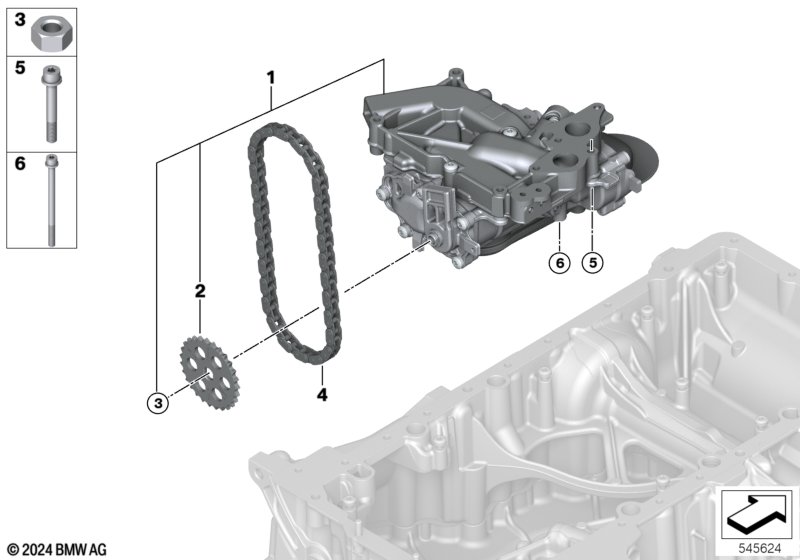

This ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ปั๊มน้ำมันเครื่อง | 1 | 11419847199 | Shop at ECS Tuning | ||||||
| 02 | จานโซ่ ปั๊มน้ำมันเครื่อง | 1 | 11415A5A755 | Shop at ECS Tuning | ||||||
| 03 | น็อตหกเหลี่ยม | M10 | 1 | 11417555245 | $0.68 | Shop at ECS Tuning | ||||
| 04 | โซ่ | 1 | 11415A19C97 | Shop at ECS Tuning | ||||||
| 05 | สกรู Isa | M6X50-U1-8.8 | 4 | 07129904832 | $1.93 | Shop at ECS Tuning | ||||
| 06 | สกรู Isa | M6X100 | 1 | 07129904839 | $5.92 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ?
- This technical diagram illustrates the ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ within the เครื่องยนต์ group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the ปั๊มน้ำมันเครื่อง (Part #11419847199).
- Which models use the hardware listed in this ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ?
- The hardware and components featured in the ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the ปั๊มน้ำมันเครื่อง (11419847199) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ assembly?
- Each item in the ระบบหล่อลื่น/ปั๊มน้ำมันพร้อมตัวขับ corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the ปั๊มน้ำมันเครื่อง by locating its position on the schematic, which then links to the official BMW part number 11419847199 for the เครื่องยนต์ section.
