เครื่องอัดอากาศไอเสียระบบหล่อเย็น for BMW XM G09 XM (2025)

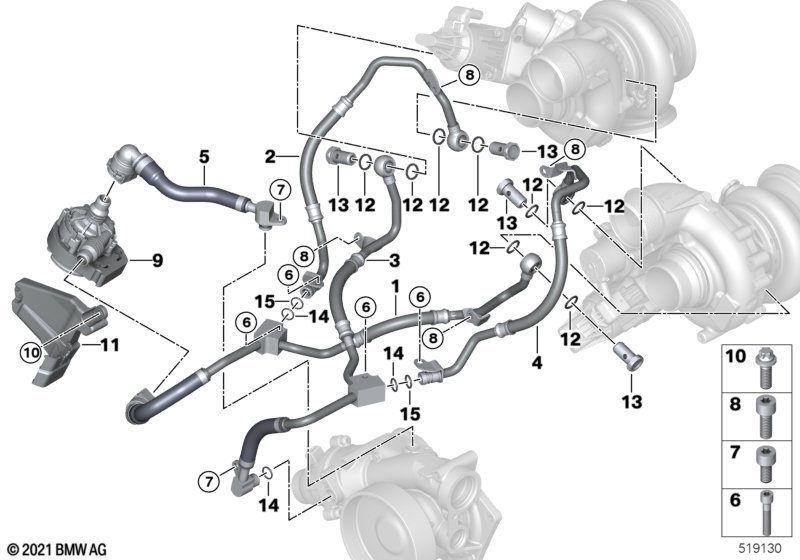

This เครื่องอัดอากาศไอเสียระบบหล่อเย็น technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ท่อจ่ายน้ำหล่อเย็น, เทอร์โบชาร์จเจอร์ | ZYL. 5-8 | 1 | 11539797653 | Shop at ECS Tuning | |||||
| 02 | ท่อจ่ายน้ำหล่อเย็น, เทอร์โบชาร์จเจอร์ | ZYL. 1-4 | 1 | 11539797652 | Shop at ECS Tuning | |||||
| 03 | ท่อน้ำหล่อเย็น,ท่อไหลกลับ,เทอร์โบชาร์จฯ | ZYL. 1-4 | 1 | 11539797655 | Shop at ECS Tuning | |||||
| 04 | ท่อน้ำหล่อเย็น,ท่อไหลกลับ,เทอร์โบชาร์จฯ | ZYL. 5-8 | 1 | 11539797656 | Shop at ECS Tuning | |||||
| 05 | ท่อน้ำหล่อเย็น | 1 | 11539797657 | Shop at ECS Tuning | ||||||
| 06 | สกรู | M6X35 | 2 | 07129905944 | $1.27 | Shop at ECS Tuning | ||||
| 07 | สกรู Isa | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 08 | สกรู Isa | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | ปั๊มน้ำหล่อเย็นเสริม | 1 | 11519455014 | Shop at ECS Tuning | ||||||
| 10 | โบลท์หกเหลี่ยม | M6X16-ZNNIV SI | 2 | 07119907463 | Shop at ECS Tuning | |||||
| 11 | ตัวยึดปั๊มน้ำหล่อเย็นไฟฟ้า | 1 | 05/2025 | 11515A0BB41 | Shop at ECS Tuning | |||||
| 11 | ตัวยึด, ปั๊มน้ำหล่อเย็นไฟฟ้า | 1 | 11515B6D4D5 | Shop at ECS Tuning | ||||||
| 12 | ปะเก็นวงแหวน | A14X18-CU | 8 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 13 | โบลท์กลวง | M14X26 | 4 | 07148839110 | Shop at ECS Tuning | |||||
| 14 | โอริง | 12X1,5 | 4 | 07148854461 | Shop at ECS Tuning | |||||
| 15 | โอริง | 12X1,5 | 2 | 07148854462 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM เครื่องอัดอากาศไอเสียระบบหล่อเย็น?
- This technical diagram illustrates the เครื่องอัดอากาศไอเสียระบบหล่อเย็น within the เครื่องยนต์ group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the ท่อจ่ายน้ำหล่อเย็น, เทอร์โบชาร์จเจอร์ (Part #11539797653).
- Which models use the hardware listed in this เครื่องอัดอากาศไอเสียระบบหล่อเย็น?
- The hardware and components featured in the เครื่องอัดอากาศไอเสียระบบหล่อเย็น are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the ท่อจ่ายน้ำหล่อเย็น, เทอร์โบชาร์จเจอร์ (11539797653) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the เครื่องอัดอากาศไอเสียระบบหล่อเย็น assembly?
- Each item in the เครื่องอัดอากาศไอเสียระบบหล่อเย็น corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the ท่อจ่ายน้ำหล่อเย็น, เทอร์โบชาร์จเจอร์ by locating its position on the schematic, which then links to the official BMW part number 11539797653 for the เครื่องยนต์ section.
