ฝาครอบวาล์ว/ชุดจับยึด for BMW MINI F66 JCW

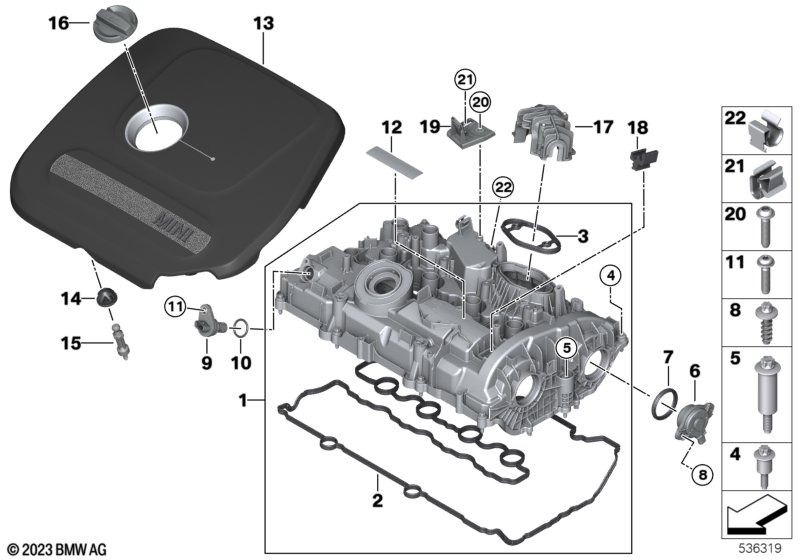

This ฝาครอบวาล์ว/ชุดจับยึด technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี เทคโนโลยีไอเสีย C6B RDE หรือ มาตรฐานการปล่อยไอเสีย EU6 rde II หรือ เทคโนโลยีไอเสีย, EU7 หรือ มาตรฐานการปล่อยไอเสีย JPN-WLTP 2024 |
S1DDA=ใช่ S1DFA=ใช่ S1DGA=ใช่ S1DXA=ใช่ |
|||||||||
| 01 | ฝาครอบฝาสูบ | 1 | 11121022607 | Shop at ECS Tuning | ||||||
| สำหรับรถยนต์ที่มี เทคโนโลยีไอเสีย C6B RDE และ มาตรฐานการปล่อยไอเสีย EU6 rde II และ เทคโนโลยีไอเสีย, EU7 และ มาตรฐานการปล่อยไอเสีย JPN-WLTP 2024 |
S1DDA=ไม่ S1DFA=ไม่ S1DGA=ไม่ S1DXA=ไม่ |
|||||||||
| 01 | ฝาครอบวาล์ว | 1 | 11127952875 | Shop at ECS Tuning | ||||||
| 02 | ชุดปะเก็น, ฝาครอบวาล์ว | 1 | 11121021391 | Shop at ECS Tuning | ||||||
| 03 | ปะเก็นโครงรอบนอก | 1 | 11129847198 | Shop at ECS Tuning | ||||||
| 04 | โบลท์ ASA | M6X29 | 14 | 08/2024 | 11128576309 | Shop at ECS Tuning | ||||
| 04 | โบลท์ ASA | M6X29 | 14 | 11121033473 | Shop at ECS Tuning | |||||
| 05 | สกรูแบบปลอก | M6X59 | 1 | 11129847204 | Shop at ECS Tuning | |||||
| 06 | แอ๊คทูเอเตอร์ของตัวควบคุมเวลาผันแปรเพลา | 2 | 11369470457 | Shop at ECS Tuning | ||||||
| 07 | ซีล | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 08 | สกรู ASA แบบเกลียวฝัง | M6X18 | 4 | 11367609963 | Shop at ECS Tuning | |||||
| 09 | เซ็นเซอร์เพลาลูกเบี้ยว | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 10 | โอริง | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 11 | โบลท์ทอกซ์สำหรับวัสดุพลาสติก | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 12 | ป้ายแนะนำคอยล์จุดระเบิด/น้ำมันเชื้อเพลิง | 1 | 71228656625 | ENDED | Shop at ECS Tuning | |||||
| 13 | แผ่นปิดเครื่องยนต์ | 1 | 11147935411 | NoS | Shop at ECS Tuning | |||||
| 14 | กันชน | 4 | 11127614138 | Shop at ECS Tuning | ||||||
| 15 | สลักลูกปืน | 4 | 11127848457 | Shop at ECS Tuning | ||||||
| 16 | ฝาซีล, คอที่เติมน้ำมัน | 1 | 01/2024 | 11121028899 | Shop at ECS Tuning | |||||
| 16 | ฝาซีล, คอที่เติมน้ำมัน | 1 | 11128654637 | Shop at ECS Tuning | ||||||
| 17 | ฝาครอบปั๊มแรงดันสูง | 1 | 11148483903 | Shop at ECS Tuning | ||||||
| 18 | ยางรองรับแรงสะเทือน | 1 | 13539469318 | Shop at ECS Tuning | ||||||
| 19 | ตัวยึด | 1 | 11785A5EBA0 | NoS | Shop at ECS Tuning | |||||
| 20 | สกรูหัวทรงกระบอก | 1 | 07149272649 | Shop at ECS Tuning | ||||||
| 21 | คลิป | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 22 | แคลมป์ยึด | D=12-14/B=5 | 1 | 12527578321 | $1.08 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี มาตรฐานการปล่อยไอเสีย EU6 rde II และ มาตรฐานการปล่อยไอเสีย JPN-WLTP 2024 |
S1DFA=ไม่ S1DXA=ไม่ |
|||||||||
| 22 | ตัวยึดสาย | 1 | 07146976165 | $0.66 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (ไม่มีการเก็บชิ้นส่วนที่อยู่ตรงกลาง)
