เครื่องอัดไอเสีย, ตัวป้องกันความร้อน for BMW MINI F66 JCW

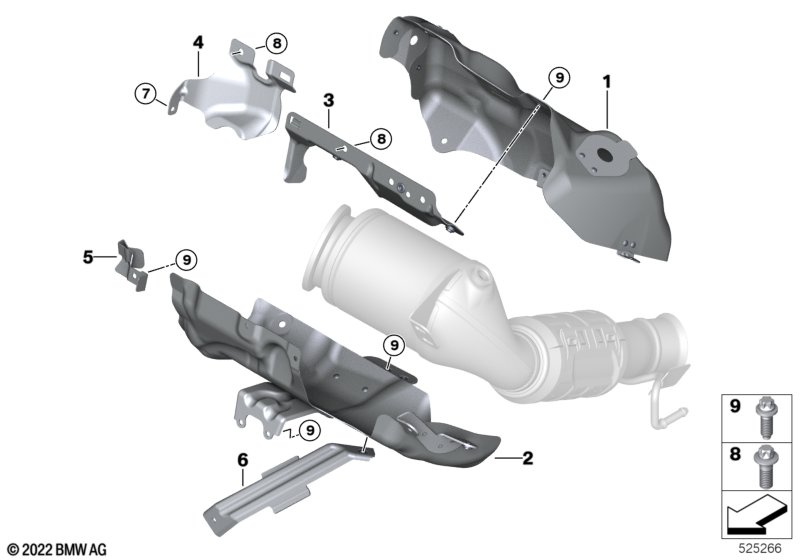

This เครื่องอัดไอเสีย, ตัวป้องกันความร้อน technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี เทคโนโลยีไอเสีย SULEV30 PM และ เทคโนโลยีไอเสีย C6B RDE และ มาตรฐานการปล่อยไอเสีย EU6 rde II และ มาตรฐานการปล่อยไอเสีย JPN-WLTP 2024 และ ขอบเขตเพิ่ม L8 |
S1D1A=ไม่ S1DDA=ไม่ S1DFA=ไม่ S1DXA=ไม่ S1DYA=ไม่ |
|||||||||
| 01 | แผงกันความร้อน, เทอร์โบชาร์จเจอร์, บน | 1 | 11655B3A036 | NoS | Shop at ECS Tuning | |||||
| 02 | แผงกันความร้อน, เทอร์โบชาร์จเจอร์, ล่าง | 1 | 11655B3A037 | NoS | Shop at ECS Tuning | |||||
| 03 | แผงป้องกันความร้อนสำหรับท่อร่วมไอเสีย | 1 | 11655B3A033 | NoS | Shop at ECS Tuning | |||||
| 04 | แผ่นกันความร้อน | 1 | 11658632102 | Shop at ECS Tuning | ||||||
| 05 | ตัวยึด | 1 | 11658632104 | Shop at ECS Tuning | ||||||
| 06 | ตัวยึด ด้านล่าง | 1 | 11655B3A039 | NoS | Shop at ECS Tuning | |||||
| 07 | สกรูหัวทรงกระบอก | M6X16 8.8 | 1 | 51119907273 | Shop at ECS Tuning | |||||
| 08 | โบลท์หกเหลี่ยม | M8X16-8.8-ZNS3 | 3 | 07119907332 | Shop at ECS Tuning | |||||
| 09 | โบลท์หกเหลี่ยม | 14 | 07119908062 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (ไม่มีการเก็บชิ้นส่วนที่อยู่ตรงกลาง)
