ชุดจับยึดอัลเตอร์เนเตอร์ for BMW 3 Series E36 318is (1999)

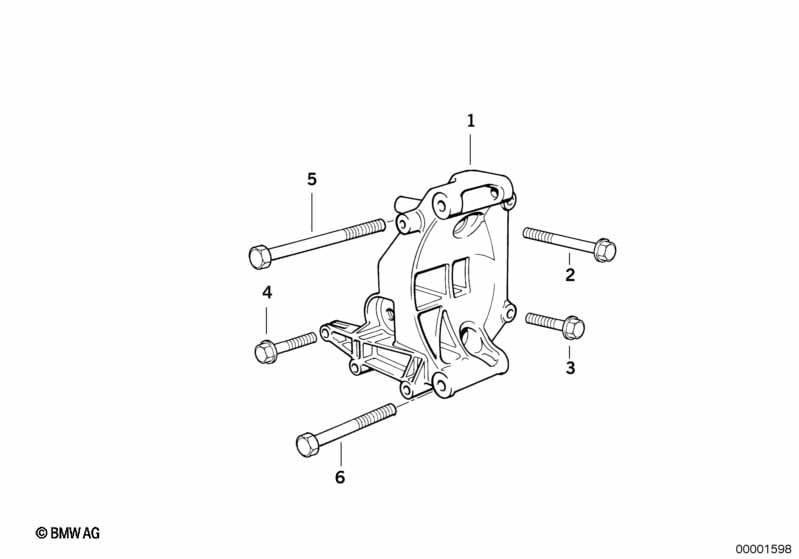

This ชุดจับยึดอัลเตอร์เนเตอร์ technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ตัวยึดเสริม | 1 | 12311247646 | $62.82 | +core | Shop at ECS Tuning | ||||
| 02 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M8X85-U1-8.8 | 2 | 07119906141 | $1.89 | Shop at ECS Tuning | ||||
| 03 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M8X75-Z1-ZNS3 | 2 | 07119903947 | Shop at ECS Tuning | |||||
| 04 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M8X75-Z1-ZNS3 | 1 | 07119903947 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is ชุดจับยึดอัลเตอร์เนเตอร์?
- This technical diagram illustrates the ชุดจับยึดอัลเตอร์เนเตอร์ within the ระบบไฟฟ้าของเครื่องยนต์ group for the 3 Series E36 318is produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the ตัวยึดเสริม (Part #12311247646).
- Which models use the hardware listed in this ชุดจับยึดอัลเตอร์เนเตอร์?
- The hardware and components featured in the ชุดจับยึดอัลเตอร์เนเตอร์ are specific to the 3 Series E36 318is produced during 1999. These technical specifications ensure that parts like the ตัวยึดเสริม (12311247646) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ชุดจับยึดอัลเตอร์เนเตอร์ assembly?
- Each item in the ชุดจับยึดอัลเตอร์เนเตอร์ corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the ตัวยึดเสริม by locating its position on the schematic, which then links to the official BMW part number 12311247646 for the ระบบไฟฟ้าของเครื่องยนต์ section.
