เซ็นเซอร์วัดปริมาตรการไหลของอากาศ for BMW 3 Series E30 325e (1988)

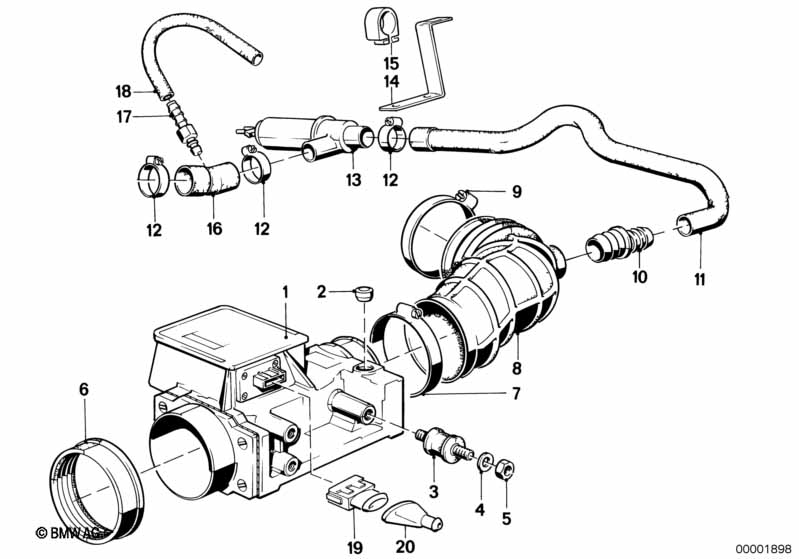

This เซ็นเซอร์วัดปริมาตรการไหลของอากาศ technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air-flow sensor | 1 | 09/1987 | 13621466357 | $518.00 | Shop at ECS Tuning | ||||
| 01 | เซ็นเซอร์วัดปริมาตรการไหลของอากาศ | 1 | 09/1987 | 13627547978 | $580.29 | Shop at ECS Tuning | ||||
| 02 | ฝาปิด | SERVICE | 1 | 13621274118 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 03 | ยางกันกระแทก | 3 | 13711272495 | $6.29 | Shop at ECS Tuning | |||||
| 04 | แหวนรอง | 3 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 05 | น็อตหกเหลี่ยม | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | แหวนยาง | 1 | 13711272494 | $2.23 | ENDED | Shop at ECS Tuning | ||||
| 07 | แคลมป์รัดท่อ | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 08 | ยางพับยืด | 1 | 09/1987 | 11/1988 | 13711707785 | $26.14 | Shop at ECS Tuning | |||
| 09 | แคลมป์รัดท่อ | L65-72 | 1 | 07129952127 | $1.89 | Shop at ECS Tuning | ||||
| 10 | ข้อลด | 1 | 11631278833 | $0.77 | Shop at ECS Tuning | |||||
| 11 | ท่ออ่อน | 1 | 11631278051 | $13.52 | Shop at ECS Tuning | |||||
| 12 | แคลมป์รัดท่อ | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 13 | วาล์วรูปตัวแอล ปรับรอบเดินเบา | 1 | 09/1987 | 13411286065 | $213.68 | ENDED, SI 130184338 | Shop at ECS Tuning | |||
| 14 | ตัวยึด | 1 | 04/1985 | 13411711494 | $6.61 | ENDED | Shop at ECS Tuning | |||
| 15 | ยางกันกระแทก | 1 | 04/1985 | 13412451566 | ENDED | Shop at ECS Tuning | ||||
| 16 | ท่ออ่อน | 1 | 11631276651 | $14.37 | Shop at ECS Tuning | |||||
| 17 | ข้อลด | 7,5/5 | 1 | 11741264787 | $1.05 | Shop at ECS Tuning | ||||
| 18 | ท่อน้ำมันเชื้อเพลิง | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 19 | ตัวเรือนปลั๊ก | 1 | 12521706097 | $2.03 | ENDED | Shop at ECS Tuning | ||||
| 20 | ฝาปิดกัน | L=27,0MM | 1 | 61131270973 | $6.33 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service-Information (ข้อมูลการบริการ)
