ชุดจับยึดคาร์บูเรเตอร์ for BMW 1502-2002tii 2002 (1970)

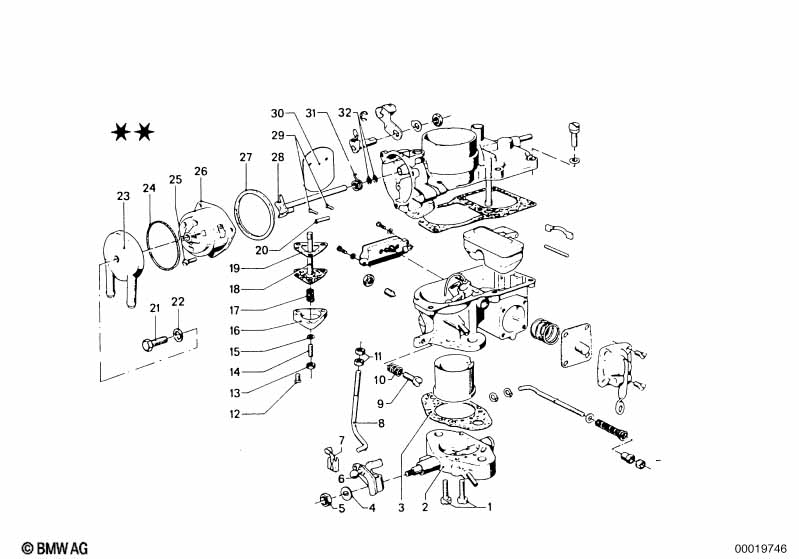

This ชุดจับยึดคาร์บูเรเตอร์ technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi/A | |||||||||
| 01 | สกรู | 2 | 05/1969 | 10/1975 | 13110639157 | ENDED | Shop at ECS Tuning | |||
| 02 | ตัวเรือนปีกผีเสื้อ | 1 | 07/1968 | 10/1975 | 13111257014 | ENDED | Shop at ECS Tuning | |||
| 03 | ปะเก็น | 1 | 13110739121 | $3.86 | Shop at ECS Tuning | |||||
| 04 | แหวนล็อค | 1 | 13110539252 | ENDED | Shop at ECS Tuning | |||||
| 05 | น็อตหกเหลี่ยม | M8X1 | 1 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 07 | สปริงยึด | 1 | 13111252675 | ENDED | Shop at ECS Tuning | |||||
| 08 | แกนเชื่อมต่อ | 1 | 13111252674 | ENDED | Shop at ECS Tuning | |||||
| 09 | สกรูปรับ | 1 | 13111252673 | ENDED | Shop at ECS Tuning | |||||
| 10 | สปริงอัด | 1 | 13110039729 | ENDED | Shop at ECS Tuning | |||||
| 11 | น็อต | 2 | 13110639393 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 12 | สกรู | 3 | 13110539234 | $2.34 | ENDED | Shop at ECS Tuning | ||||
| 13 | น็อตหกเหลี่ยม | 1 | 13111252682 | ENDED | Shop at ECS Tuning | |||||
| 14 | สลัก | 1 | 13110639340 | ENDED | Shop at ECS Tuning | |||||
| 15 | ปะเก็นวงแหวน | 1 | 13111252681 | ENDED | Shop at ECS Tuning | |||||
| 16 | ปะเก็นวงแหวน | 1 | 13111252681 | ENDED | Shop at ECS Tuning | |||||
| 17 | สปริงอัด | 1 | 13111252679 | $1.55 | ENDED | Shop at ECS Tuning | ||||
| 18 | ไดอะแฟรมสุญญากาศ | 1 | 13111256999 | $83.14 | Shop at ECS Tuning | |||||
| 19 | ปะเก็น | 2 | 13111254708 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 20 | ท่อป้องกัน | 1 | 13111252687 | ENDED | Shop at ECS Tuning | |||||
| 21 | โบลท์หัวหกเหลี่ยม | 1 | 13111258883 | ENDED | Shop at ECS Tuning | |||||
| 22 | ปะเก็นวงแหวน | 1 | 13111253435 | $0.86 | Shop at ECS Tuning | |||||
| 23 | แผ่นปิด | 1 | 13111252697 | ENDED | Shop at ECS Tuning | |||||
| 24 | โอริง | 1 | 13111252698 | $7.32 | Shop at ECS Tuning | |||||
| 25 | สกรูหัวทรงกระบอก | 1 | 13111252721 | ENDED | Shop at ECS Tuning | |||||
| 26 | ฝาปิดสตาร์ทเตอร์ | 1 | 13111254709 | ENDED | Shop at ECS Tuning | |||||
| 27 | ฉนวน | 1 | 13111278982 | $1.55 | ENDED | Shop at ECS Tuning | ||||
| 28 | เพลา | 1 | 13111252683 | ENDED | Shop at ECS Tuning | |||||
| 29 | สกรู | 2 | 13110639167 | ENDED | Shop at ECS Tuning | |||||
| 30 | แผ่นเปิดปิด | 1 | 13111252685 | ENDED | Shop at ECS Tuning | |||||
| 31 | สปริงประกบวาล์ว | 1 | 13111252686 | ENDED | Shop at ECS Tuning | |||||
| 32 | แหวนสเปเซอร์ | 2 | 13111252684 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 ชุดจับยึดคาร์บูเรเตอร์?
- This technical diagram illustrates the ชุดจับยึดคาร์บูเรเตอร์ within the การเตรียมและควบคุมน้ำมันเชื้อเพลิง group for the 1502-2002tii 2002 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the สกรู (Part #13110639157).
- Which models use the hardware listed in this ชุดจับยึดคาร์บูเรเตอร์?
- The hardware and components featured in the ชุดจับยึดคาร์บูเรเตอร์ are specific to the 1502-2002tii 2002 produced during 1970. These technical specifications ensure that parts like the สกรู (13110639157) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ชุดจับยึดคาร์บูเรเตอร์ assembly?
- Each item in the ชุดจับยึดคาร์บูเรเตอร์ corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the สกรู by locating its position on the schematic, which then links to the official BMW part number 13110639157 for the การเตรียมและควบคุมน้ำมันเชื้อเพลิง section.
