ชุดจับยึดคาร์บูเรเตอร์ for BMW 1502-2002tii 2002 (1970)

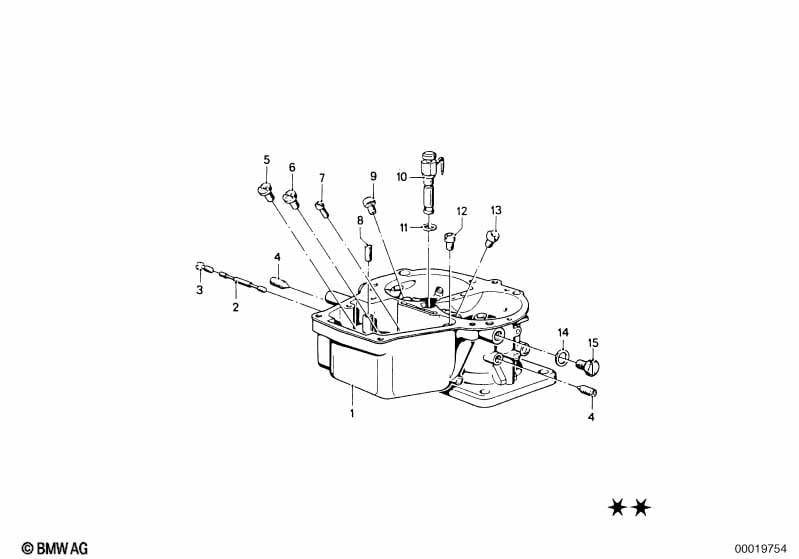

This ชุดจับยึดคาร์บูเรเตอร์ technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex Didta | |||||||||
| สำหรับรถยนต์ที่มี รุ่นประเทศญี่ปุ่น และ รุ่นประเทศสวีเดน |
L807A=ใช่ =ใช่ |
|||||||||
| 02 | สลักที่เติม | 1 | 13111258913 | $1.44 | ENDED | Shop at ECS Tuning | ||||
| 03 | ปลั๊กสกรู | 1 | 13111258914 | $1.55 | ENDED | Shop at ECS Tuning | ||||
| 04 | สกรูไม่มีหัว | 2 | 13111258916 | $1.24 | Shop at ECS Tuning | |||||
| 07 | หัวฉีดกลาง | 60 | 1 | 13111273692 | $2.10 | ENDED | Shop at ECS Tuning | |||
| 10 | หัวฉีดเร่งน้ำมัน | 1 | 13111266154 | $18.97 | Shop at ECS Tuning | |||||
| 11 | โอริง | 1 | 13111258926 | $3.57 | Shop at ECS Tuning | |||||
| 12 | ท่อส่งผ่านอากาศ | 100 | 1 | 13111258923 | $3.63 | ENDED | Shop at ECS Tuning | |||
| 14 | ปะเก็นวงแหวน | 1 | 13111262034 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 15 | ปลั๊กสกรู | 1 | 13111258924 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
