หม้อน้ำล้น/ท่อ for BMW 3 Series E30 M3 (1990)

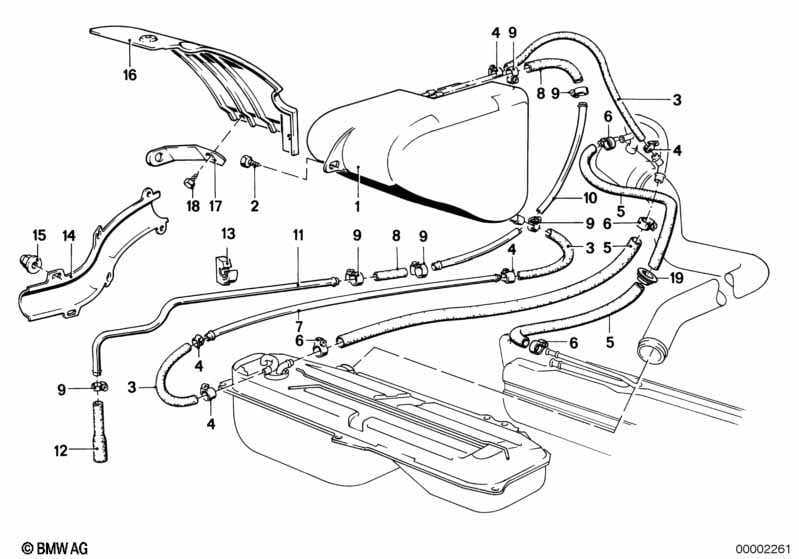

This หม้อน้ำล้น/ท่อ technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี เครื่องฟอกไอเสีย, เลิกใช้แล้ว |
S199A=ใช่ |
|||||||||
| 01 | ถังพัก | 1 | 16131178014 | $128.85 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี เครื่องฟอกไอเสีย, เลิกใช้แล้ว ให้ใช้กับ ถังน้ำมันเชื้อเพลิงเสริมเท่านั้น |
S199A=ใช่ |
|||||||||
| 01 | ถังพัก | 1 | 09/1985 | 16131178014 | $128.85 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี เครื่องฟอกไอเสีย, เลิกใช้แล้ว |
S199A=ใช่ |
|||||||||
| 02 | สกรูหัวหกเหลี่ยม | ST6,3X22-C-Z2 | 1 | 07119916971 | $0.30 | Shop at ECS Tuning | ||||
| 02 | สกรูหัวหกเหลี่ยม | ST-6,3X22 | 1 | 07119901515 | $0.30 | Shop at ECS Tuning | ||||
| 03 | ท่อน้ำมันเชื้อเพลิง | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 04 | แคลมป์รัดท่อ | L=9-12 | 6 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 05 | ท่ออ่อน | 14X20X1340 | 1 | 16121177553 | $34.54 | Shop at ECS Tuning | ||||
| 06 | แคลมป์รัดท่อ | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 07 | ท่อ | 6X0,7X1655 | 1 | 16131178821 | $6.11 | Shop at ECS Tuning | ||||
| 08 | ท่อน้ำมันเชื้อเพลิง | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 09 | แคลมป์รัดท่อ | L12-15 | 5 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 10 | ท่อ | 8X0,7X1805 | 1 | 16131178475 | $67.02 | +core | Shop at ECS Tuning | |||
| 12 | ชิ้นส่วนปลาย | 1 | 16131177514 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 14 | แผ่นปิด | 1 | 09/1983 | 16131179011 | $43.68 | Shop at ECS Tuning | ||||
| 15 | น็อตพลาสติกสำหรับสลักเกลียว | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
