ปั๊มน้ำมันเชื้อเพลิง for BMW 3 Series E30 M3 (1990)

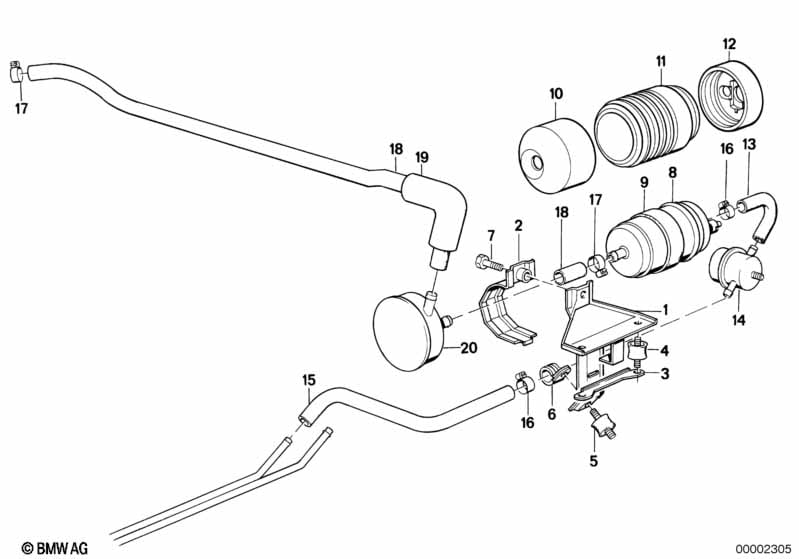

This ปั๊มน้ำมันเชื้อเพลิง technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี เครื่องฟอกไอเสีย, เลิกใช้แล้ว |
S199A=ใช่ |
|||||||||
| 01 | ตัวยึด | 1 | 16121176297 | $13.59 | Shop at ECS Tuning | |||||
| 02 | ตัวยึด | 1 | 16121177356 | $6.93 | ENDED | Shop at ECS Tuning | ||||
| 03 | แผงล็อคกันขโมย | 1 | 16121178964 | $5.17 | ENDED | Shop at ECS Tuning | ||||
| 04 | ยางกันกระแทก | 3 | 16121177892 | $12.99 | Shop at ECS Tuning | |||||
| 04 | ยางกันกระแทก | 3 | 61211243530 | $13.76 | Shop at ECS Tuning | |||||
| 05 | ยางกันกระแทก | 1 | 61211243530 | $13.76 | Shop at ECS Tuning | |||||
| 06 | แคลมป์ | D=14/6,4 | 1 | 16121178487 | $1.23 | Shop at ECS Tuning | ||||
| 07 | โบลท์หัวหกเหลี่ยม | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 08 | ปั๊มน้ำมันเชื้อเพลิง | 1 | 16141179232 | $372.11 | Shop at ECS Tuning | |||||
| 09 | แหวนยาง | 1 | 16121152361 | $2.70 | Shop at ECS Tuning | |||||
| 10 | ฝาปิด | 1 | 16121178642 | $6.27 | Shop at ECS Tuning | |||||
| 11 | ชิ้นส่วนตรงกลาง | 1 | 16121178738 | $7.64 | Shop at ECS Tuning | |||||
| 12 | ฝาปิด | 1 | 16121178668 | $5.55 | Shop at ECS Tuning | |||||
| 13 | สายยางขึ้นรูป | AKF | 1 | 13531726960 | $6.38 | Shop at ECS Tuning | ||||
| 14 | แดมเปอร์ | 1 | 16121178035 | $78.08 | Shop at ECS Tuning | |||||
| 15 | ท่อน้ำมันเชื้อเพลิง | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 16 | แคลมป์รัดท่อ | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 17 | แคลมป์รัดท่อ | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 18 | ท่ออ่อน | 1 | 16121178823 | $18.63 | Shop at ECS Tuning | |||||
| 19 | ท่อป้องกัน | X | 16121118812 | $26.71 | ENDED | Shop at ECS Tuning | ||||
| 20 | ท่ออ่อน | 1 | 16121178823 | $18.63 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
