ถังน้ำมันเชื้อเพลิง for BMW 1500-2000CS 2000tii

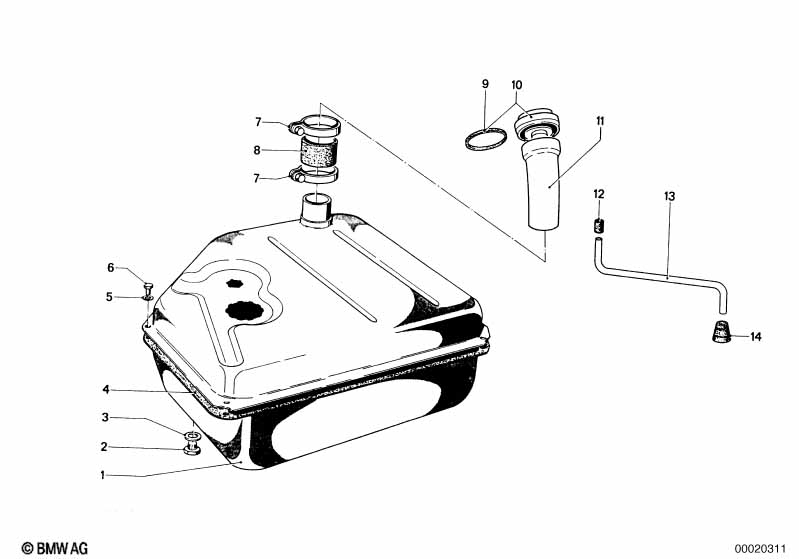

This ถังน้ำมันเชื้อเพลิง technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ถังน้ำมันเชื้อเพลิง | 1 | 16111107594 | ENDED | Shop at ECS Tuning | |||||
| 02 | ปลั๊กสกรู | M10X1 | 1 | 11122244830 | $2.12 | Shop at ECS Tuning | ||||
| 03 | ปะเก็นวงแหวน | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 04 | ปะเก็น | SELBSTKLEBEND | 1 | 16111117053 | $17.96 | Shop at ECS Tuning | ||||
| 05 | แหวนรอง | A6,4-200HV-ZNS3 | 5 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 06 | สกรูหัวทรงกระบอก | M6X18 | 5 | 07119919781 | ENDED | Shop at ECS Tuning | ||||
| 08 | บูชชิ่ง | 1 | 16114680130 | ENDED | Shop at ECS Tuning | |||||
| 09 | ซีลยาง | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 10 | ฝาปิดที่เติมน้ำมันไม่มีตัวล็อค | 1 | 16111184718 | $11.65 | Shop at ECS Tuning | |||||
| 11 | ท่อเติมน้ำมัน | 1 | 16114680128 | ENDED | Shop at ECS Tuning | |||||
| 12 | ท่อน้ำมันเชื้อเพลิง | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 13 | ท่อระบายอากาศ | 1 | 16114780100 | $54.58 | ENDED | Shop at ECS Tuning | ||||
| 14 | ปลอกยาง | 1 | 16121101014 | $1.21 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
