ท่อน้ำยาทำความเย็นของระบบหล่อเย็น for BMW 7 Series F02 730Li

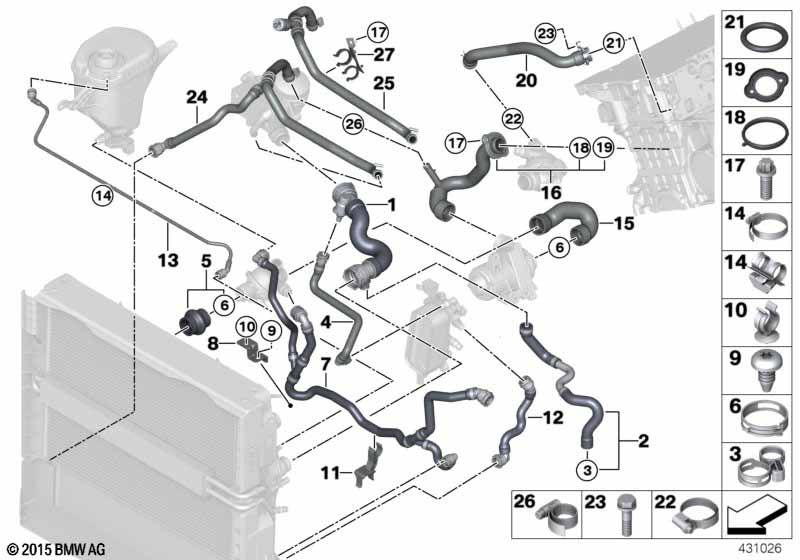

This ท่อน้ำยาทำความเย็นของระบบหล่อเย็น technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | สำหรับรถยนต์ที่มี ระบบทำความร้อนอิสระ |
S536A=ใช่ |
||||||||
| 01 | ท่อน้ำหล่อเย็น | 1 | 17127578398 | Shop at ECS Tuning | ||||||
| 02 | ท่อน้ำหล่อเย็น | 1 | 17127582923 | Shop at ECS Tuning | ||||||
| 03 | ประกับแหวนสปริง | D=28MM | 1 | 64219182743 | Shop at ECS Tuning | |||||
| 04 | ท่อน้ำหล่อเย็น | 1 | 17127578401 | Shop at ECS Tuning | ||||||
| 05 | ท่อน้ำหล่อเย็นไม่มีแคลมป์รัดท่อ | 1 | 17127610704 | Shop at ECS Tuning | ||||||
| 06 | ท่อน้ำหล่อเย็น | 1 | 17127578403 | Shop at ECS Tuning | ||||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | แถบรัดสายไฟพร้อมตัวยึด | L=200MM | 1 | 61136916946 | $1.58 | Shop at ECS Tuning | ||||
| 07 | ตัวยึด, ท่อน้ำหล่อเย็น | 1 | 17127585276 | Shop at ECS Tuning | ||||||
| 08 | สกรูทอกซ์แบบเกลียวฝัง | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| 09 | แคลมป์รัดท่อ | 1 | 07147506219 | $0.91 | Shop at ECS Tuning | |||||
| 10 | ตัวยึด, ท่อน้ำหล่อเย็น | 1 | 06/2009 | 17127611151 | ENDED | Shop at ECS Tuning | ||||
| 10 | ตัวยึด, ท่อน้ำหล่อเย็น | 1 | 06/2009 | 17127583106 | Shop at ECS Tuning | |||||
| 11 | ท่อน้ำหล่อเย็น | 1 | 17127592651 | $26.22 | Shop at ECS Tuning | |||||
| 12 | ท่อระบายอากาศ | 1 | 17127578405 | Shop at ECS Tuning | ||||||
| 13 | แคลมป์ยึด | 2 | 06/2009 | 22111093424 | $0.24 | Shop at ECS Tuning | ||||
| 13 | คลิปยึด | 2 | 02/2010 | 12517577343 | Shop at ECS Tuning | |||||
| 13 | คลิปยึด | 2 | 03/2012 | 17127611355 | Shop at ECS Tuning | |||||
| 13 | ที่รองรับท่อ | 2 | 12521741316 | $0.47 | Shop at ECS Tuning | |||||
| 14 | ท่อเทอร์โมสตัท - ปั๊มน้ำหล่อเย็น | 1 | 11537581942 | +core | Shop at ECS Tuning | |||||
| 15 | แคลมป์รัดท่อ | L42-48 | 5 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 16 | ท่อจ่ายของมอเตอร์-ปั๊มน้ำหล่อเย็น | 1 | 11537581873 | +core | Shop at ECS Tuning | |||||
| ใช้เหมือนกับชิ้นส่วนอะไหล่เดิม | ||||||||||
| 16 | ท่อจ่ายของมอเตอร์-ปั๊มน้ำหล่อเย็น | 1 | 05/2010 | 11537613176 | +core | Shop at ECS Tuning | ||||
| 17 | สกรูทอกซ์ | M6X16-ZNNIV SI | 3 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| 18 | โอริง | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| 19 | ปะเก็น | 1 | 11537534880 | $12.02 | Shop at ECS Tuning | |||||
| 20 | ท่อฝาสูบ-เทอร์โมสตัท | 1 | 11537581063 | +core | Shop at ECS Tuning | |||||
| 21 | โอริง | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 22 | แคลมป์รัดท่อ | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 23 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| ใช้เหมือนกับชิ้นส่วนอะไหล่เดิม | ||||||||||
| 24 | ท่อตัวแลกเปลี่ยนความร้อน, น้ำมันเครื่อง | 1 | 05/2010 | 11537581872 | +core | Shop at ECS Tuning | ||||
| 25 | ท่อตัวแลกเปลี่ยนความร้อน, น้ำมันเครื่อง | 1 | 05/2010 | 11537581870 | +core | Shop at ECS Tuning | ||||
| 26 | แคลมป์รัดท่อ | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 27 | ที่ยึดแหวนสเปเซอร์ | 1 | 11537583702 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
