ท่อน้ำยาทำความเย็นของระบบหล่อเย็น for BMW 7 Series F02 750Li (2012)

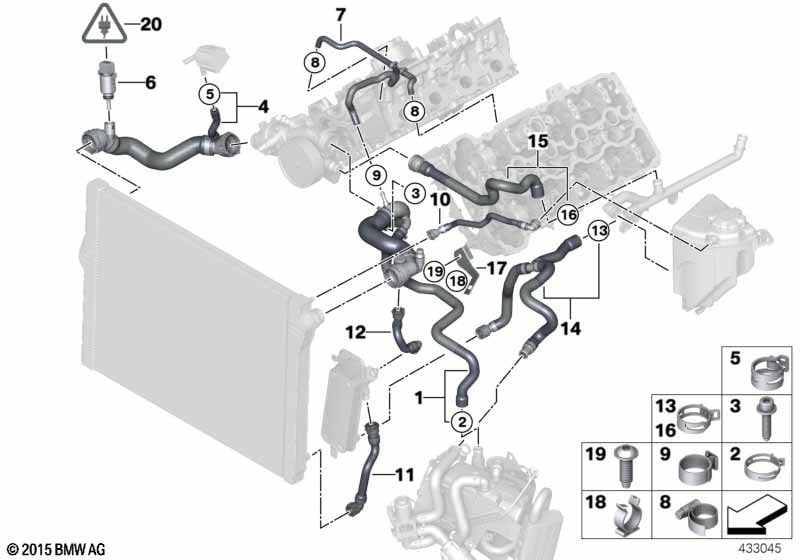

This ท่อน้ำยาทำความเย็นของระบบหล่อเย็น technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | สำหรับรถยนต์ที่มี ระบบทำความร้อนอิสระ และ รุ่นประเทศในเขตร้อน |
S536A=ใช่ S823A=ไม่ |
||||||||
| 01 | ท่อน้ำหล่อเย็น | 1 | 17127575426 | Shop at ECS Tuning | ||||||
| 02 | ประกับแหวนสปริง | D=28MM | 1 | 64219182743 | Shop at ECS Tuning | |||||
| 03 | สกรูหัวทรงกระบอก | 1 | 07149166130 | Shop at ECS Tuning | ||||||
| 04 | ท่อน้ำหล่อเย็น | 1 | 17127575427 | $54.57 | Shop at ECS Tuning | |||||
| 05 | ประกับแหวนสปริง | D=19MM | 1 | 64219174339 | Shop at ECS Tuning | |||||
| 06 | เซ็นเซอร์อุณหภูมิน้ำหล่อเย็น | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 07 | ท่อระบายอากาศ | 1 | 17127576363 | $35.02 | Shop at ECS Tuning | |||||
| 08 | แคลมป์รัดท่อ | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | แคลมป์รัดท่อ | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 10 | ท่อน้ำหล่อเย็น | 1 | 17127575428 | $20.98 | Shop at ECS Tuning | |||||
| 11 | ท่อน้ำหล่อเย็น | 1 | 17227575387 | $26.22 | Shop at ECS Tuning | |||||
| 12 | ท่อน้ำหล่อเย็น | 1 | 17127575430 | $20.98 | Shop at ECS Tuning | |||||
| 13 | แคลมป์รัดท่อ | 25-28 | 1 | 17127594645 | Shop at ECS Tuning | |||||
| 14 | ท่อน้ำหล่อเย็น | 1 | 17127576282 | Shop at ECS Tuning | ||||||
| 15 | ท่อน้ำหล่อเย็น | 1 | 17127575453 | $43.58 | Shop at ECS Tuning | |||||
| 16 | แคลมป์รัดท่อ | D=29MM | 1 | 64112755596 | Shop at ECS Tuning | |||||
| 17 | ตัวยึดท่อไหลกลับ | 1 | 17217576019 | Shop at ECS Tuning | ||||||
| 18 | ตัวยึดปลั๊กวิเคราะห์ | 1 | 11531726298 | $1.19 | Shop at ECS Tuning | |||||
| 19 | โบลท์ตัด | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 20 | ตัวเรือนบูช | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | หน้าสัมผัสซอคเก็ต SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- SI = Service-Information (ข้อมูลการบริการ)
