ท่อน้ำยาทำความเย็นของระบบหล่อเย็น for BMW MINI F56 LCI JCW

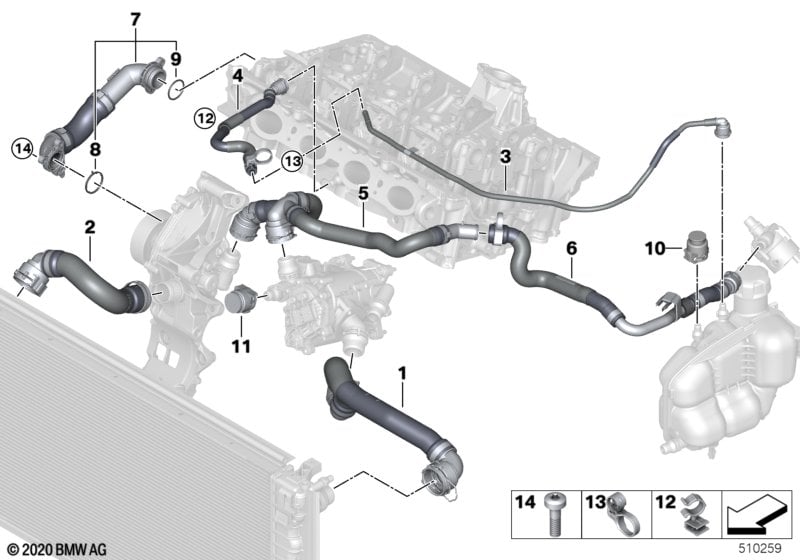

This ท่อน้ำยาทำความเย็นของระบบหล่อเย็น technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี ชุดเกียร์อัตโนมัติแบบสปอร์ต |
S2TBA=ไม่ |
|||||||||
| 01 | ท่อ, หม้อน้ำ-เครื่องยนต์ | 1 | 17128658480 | Shop at ECS Tuning | ||||||
| 02 | ท่อหม้อหล่อเย็นด้านบน - เทอร์โมสตัท | 1 | 17128658482 | Shop at ECS Tuning | ||||||
| 03 | ท่อ, ถังพัก-ฝาสูบ | 1 | 17128658483 | Shop at ECS Tuning | ||||||
| 04 | ท่อ, ถังพัก-ฝาสูบ | 1 | 17128658484 | Shop at ECS Tuning | ||||||
| 05 | ท่อโมดูลการจัดการความร้อน | 1 | 11538632767 | Shop at ECS Tuning | ||||||
| 06 | ท่อโมดูลการจัดการความร้อน | 1 | 17128658488 | Shop at ECS Tuning | ||||||
| 07 | ท่อ, ปั๊มน้ำหล่อเย็น-ฝาสูบ | 1 | 11538645546 | Shop at ECS Tuning | ||||||
| 08 | ปะเก็น | 34,2X4,6X2,2 | 1 | 11539470624 | Shop at ECS Tuning | |||||
| 09 | โอริง | 28,7X2,5 | 1 | 11539454997 | Shop at ECS Tuning | |||||
| 10 | ฝาปิด | D=6 | 1 | 17128515062 | Shop at ECS Tuning | |||||
| 11 | ปลั๊กซีล | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 12 | คลิปขอบ | D=16 | 1 | 17128659976 | Shop at ECS Tuning | |||||
| 13 | ประกับแหวนสปริง | D=15 | 1 | 17127707643 | Shop at ECS Tuning | |||||
| 14 | สกรูหัวฝัง | M6X20-8.8-ZNNIV | 5 | 07119907517 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI JCW ท่อน้ำยาทำความเย็นของระบบหล่อเย็น?
- This technical diagram illustrates the ท่อน้ำยาทำความเย็นของระบบหล่อเย็น within the ระบบหล่อเย็น group for the MINI F56 LCI JCW. It provides a detailed exploded view of the components, identifying key parts such as the ท่อ, หม้อน้ำ-เครื่องยนต์ (Part #17128658480).
- Which models use the hardware listed in this ท่อน้ำยาทำความเย็นของระบบหล่อเย็น?
- The hardware and components featured in the ท่อน้ำยาทำความเย็นของระบบหล่อเย็น are specific to the MINI F56 LCI JCW. These technical specifications ensure that parts like the ท่อ, หม้อน้ำ-เครื่องยนต์ (17128658480) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ท่อน้ำยาทำความเย็นของระบบหล่อเย็น assembly?
- Each item in the ท่อน้ำยาทำความเย็นของระบบหล่อเย็น corresponds to the numbered list below the illustration. For the MINI F56 LCI JCW, you can identify the ท่อ, หม้อน้ำ-เครื่องยนต์ by locating its position on the schematic, which then links to the official BMW part number 17128658480 for the ระบบหล่อเย็น section.
