ชิ้นส่วนภายนอกชุดเปลี่ยนเกียร์/คันเกียร์ for BMW R45-R65LS..78-85 R65LS (1983)

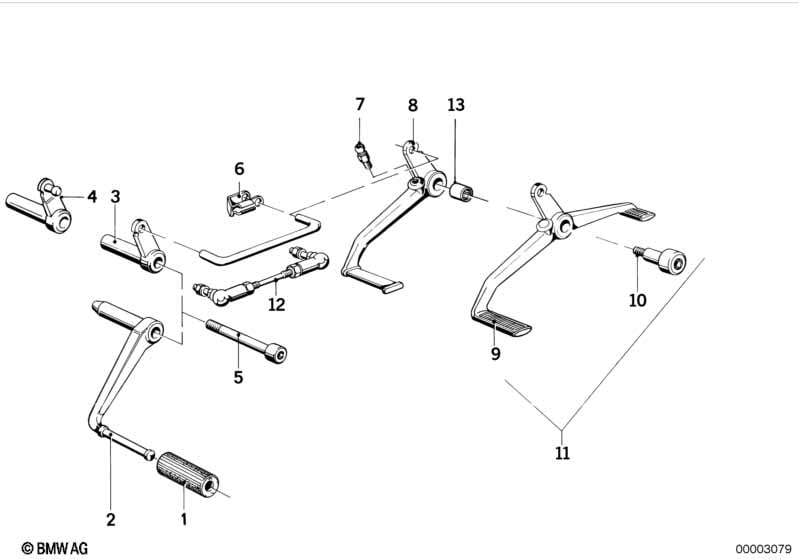

This ชิ้นส่วนภายนอกชุดเปลี่ยนเกียร์/คันเกียร์ technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | บูชชิ่ง | 1 | 23311232097 | $5.60 | Shop at ECS Tuning | |||||
| 04 | คันเกียร์ | 1 | 23312302228 | $84.72 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | สกรูหัวทรงกระบอก | M6X80 | 1 | 23112322402 | $2.80 | Shop at ECS Tuning | ||||
| 07 | หัวอัดจาระบี | 1 | 23411238306 | $1.10 | Shop at ECS Tuning | |||||
| 08 | คันเกียร์ | 1 | 23411241593 | $79.86 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | คันเกียร์ | 1 | 23411241592 | Shop at ECS Tuning | ||||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ปลอกเข็ม | 12X18X16 | 1 | 23131238422 | $13.04 | Shop at ECS Tuning | ||||
| 10 | สกรูลูกปืน | 33.5 | 1 | 23411241595 | $25.64 | Shop at ECS Tuning | ||||
| 12 | ก้านเลือกเกียร์ | L=90MM | 1 | 23412301391 | $49.21 | ENDED | Shop at ECS Tuning | |||
| 12 | ก้านเลือกเกียร์ | L=85 | 1 | 23417714804 | +core | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | สลักลูกปืน | 2 | 07119901736 | $4.67 | Shop at ECS Tuning | |||||
| -- | แหวนรอง | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| -- | น็อตหกเหลี่ยม | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| -- | คลิปนิรภัย | S10 | 2 | 07119987611 | $0.25 | Shop at ECS Tuning | ||||
| 13 | ปลอกเข็ม | 12X18X16 | 1 | 23131238422 | $13.04 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
