ชุดตัวเรือน+ชุดจับยึด ZF S5-16 for BMW 2500-3.3Li 2800 (1970)

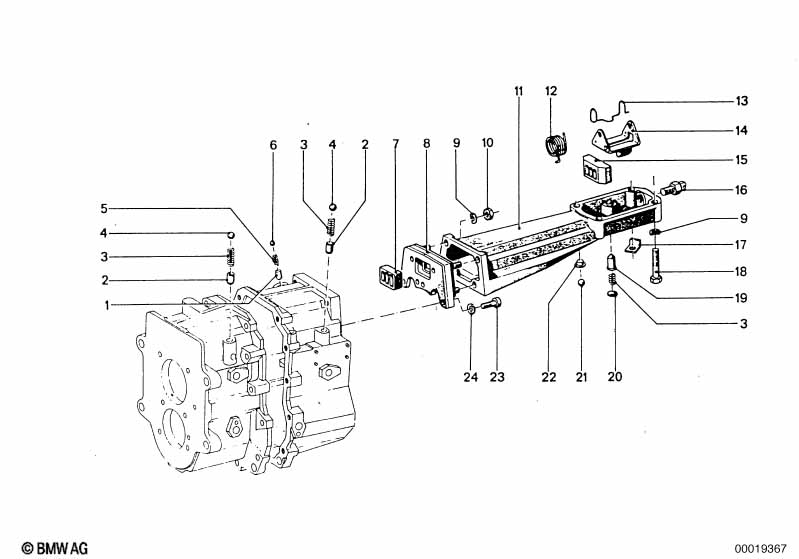

This ชุดตัวเรือน+ชุดจับยึด ZF S5-16 technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ตัวสอด | 1 | 23311201358 | ENDED | Shop at ECS Tuning | |||||
| 02 | สลัก | 2 | 23311201356 | ENDED | Shop at ECS Tuning | |||||
| 03 | สปริงอัด | 3 | 23311201357 | ENDED | Shop at ECS Tuning | |||||
| 04 | ลูกกลม | 3/8"ZOLL | 2 | 07119986299 | ENDED | Shop at ECS Tuning | ||||
| 05 | สปริงอัด | 1 | 23311201359 | ENDED | Shop at ECS Tuning | |||||
| 07 | ตัวสอดนำ | ZF | 1 | 23311201370 | ENDED | Shop at ECS Tuning | ||||
| 08 | ตัวดูดซับแรงสั่นสะเทือน | 1 | 23311205082 | ENDED | Shop at ECS Tuning | |||||
| 09 | แหวนรองแบบสปริง | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | น็อตหกเหลี่ยม | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | คันเกียร์ | 1 | 23111201367 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 12 | สปริง | 1 | 23311201383 | ENDED | Shop at ECS Tuning | |||||
| 13 | สปริง | 1 | 23311201384 | $2.32 | Shop at ECS Tuning | |||||
| 14 | โครงรอบ | 1 | 23311201380 | ENDED | Shop at ECS Tuning | |||||
| 15 | ตัวสอดนำ | ZF | 1 | 23311201371 | ENDED | Shop at ECS Tuning | ||||
| 16 | สวิตช์ไฟถอยหลังและเกียร์ว่าง | M12X1,5 | 1 | 23141352153 | $13.53 | Shop at ECS Tuning | ||||
| 17 | ตัวยึด | 2 | 61131200462 | ENDED | Shop at ECS Tuning | |||||
| 18 | โบลท์หัวหกเหลี่ยม | M8X45-8.8-ZNS3 | 8 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 19 | สลัก | 1 | 23311201369 | ENDED | Shop at ECS Tuning | |||||
| 20 | ฝาปิด | D=16MM | 1 | 07119932412 | $0.37 | Shop at ECS Tuning | ||||
| 21 | ลูกกลม | 13/32" | 1 | 07119986405 | ENDED | Shop at ECS Tuning | ||||
| 22 | ปลั๊กซีล | 1 | 23111201372 | ENDED | Shop at ECS Tuning | |||||
| 23 | สกรูหัวทรงกระบอก | M8X20-8.8 ZN | 5 | 07119919969 | $0.78 | Shop at ECS Tuning | ||||
| 24 | แหวนรองสปริง | B8 | 5 | 07119933096 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
