ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด for BMW MINI R50 Cooper (2000)

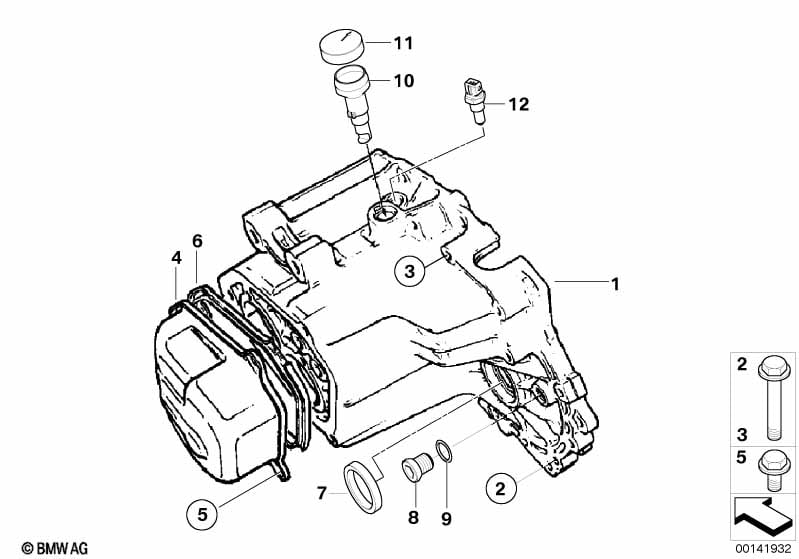

This ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | เสื้อเกียร์ | 1 | 07/2004 | 23101490219 | $409.85 | ENDED | Shop at ECS Tuning | |||
| 02 | โบลท์หัวหกเหลี่ยม | M8X40 | 12 | 07/2004 | 23100662010 | $1.68 | Shop at ECS Tuning | |||
| 03 | โบลท์หัวหกเหลี่ยม | M8X70 | 4 | 07/2004 | 23100662011 | Shop at ECS Tuning | ||||
| 04 | แผ่นปิดชุดเกียร์ | 1 | 07/2004 | 23111037300 | $55.93 | Shop at ECS Tuning | ||||
| 05 | โบลท์หัวหกเหลี่ยม | M8X1.25X28 | 3 | 07/2004 | 23110662007 | $0.77 | Shop at ECS Tuning | |||
| 06 | ปะเก็นวงแหวน | 1 | 07/2004 | 23111035843 | $13.68 | Shop at ECS Tuning | ||||
| 07 | ซีลเพลา | 40X62 | 1 | 07/2004 | 23117550058 | $39.58 | Shop at ECS Tuning | |||
| 08 | ปลั๊กสกรู | 2 | 07/2004 | 23101035696 | $7.43 | ENDED | Shop at ECS Tuning | |||
| 09 | ปะเก็นวงแหวน | 16X24X2-CU | 2 | 07/2004 | 23100630776 | $0.25 | Shop at ECS Tuning | |||
| 10 | ท่อระบายอากาศ | 1 | 07/2004 | 23111035597 | $3.30 | Shop at ECS Tuning | ||||
| 11 | ฝาปิดทางระบายอากาศ | 1 | 07/2004 | 23101035761 | $1.15 | Shop at ECS Tuning | ||||
| 12 | RP REMAN, สวิตช์ไฟถอยหลัง | 1 | 07/2004 | 23142352685 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด?
- This technical diagram illustrates the ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด within the เกียร์ธรรมดา group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the เสื้อเกียร์ (Part #23101490219).
- Which models use the hardware listed in this ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด?
- The hardware and components featured in the ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the เสื้อเกียร์ (23101490219) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด assembly?
- Each item in the ตัวเรือน GS5-65BH และชิ้นส่วนจับยึด corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the เสื้อเกียร์ by locating its position on the schematic, which then links to the official BMW part number 23101490219 for the เกียร์ธรรมดา section.
