GS5-65BH เอาต์พุตชาฟท์ for BMW MINI R50 Cooper (2000)

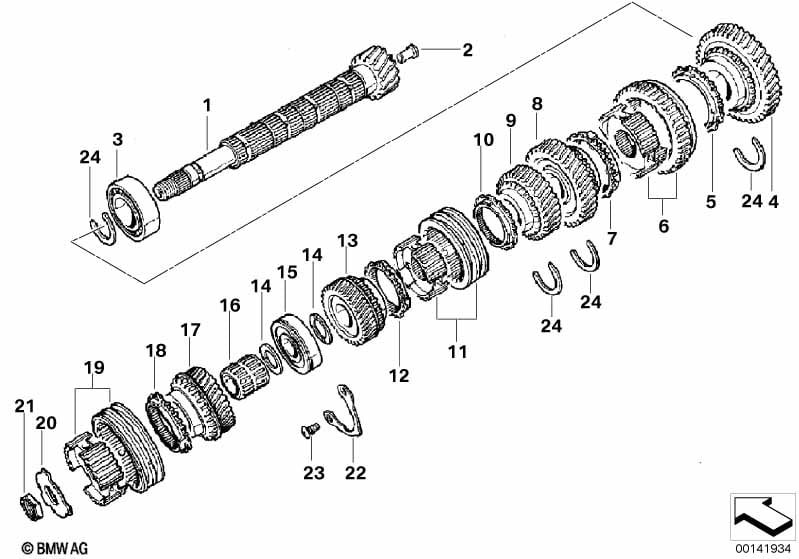

This GS5-65BH เอาต์พุตชาฟท์ technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | เพลาหลัก | 1 | 07/2004 | 23232326835 | Shop at ECS Tuning | |||||
| 02 | ชิ้นส่วนปลาย | 1 | 07/2004 | 23200662025 | $0.67 | Shop at ECS Tuning | ||||
| 03 | ตลับลูกปืนแบบลูกกลิ้ง | 1 | 07/2004 | 23211036995 | $47.43 | Shop at ECS Tuning | ||||
| 04 | เฟืองเปลี่ยนเกียร์ 1 | 1 | 07/2004 | 23201485254 | $270.16 | Shop at ECS Tuning | ||||
| 05 | แหวนซิงโครไนเซอร์ | 1 | 07/2004 | 23231989438 | $90.84 | ENDED | Shop at ECS Tuning | |||
| 06 | บูชนำร่อง, เกียร์ 1 และ 2 | 1 | 07/2004 | 23212348807 | Shop at ECS Tuning | |||||
| 07 | แหวนซิงโครไนเซอร์ | 1 | 07/2004 | 23221037386 | $46.49 | Shop at ECS Tuning | ||||
| 08 | เฟืองเปลี่ยนเกียร์จังหวะที่ 2 | 1 | 07/2004 | 23220662664 | $280.78 | Shop at ECS Tuning | ||||
| 09 | เฟืองเปลี่ยนเกียร์ 3 | 1 | 07/2004 | 23201485256 | $202.15 | Shop at ECS Tuning | ||||
| 10 | RP REMAN, แหวนซิงโครไนซ์ | 1 | 07/2004 | 23232348808 | Shop at ECS Tuning | |||||
| 10 | RP REMAN, แหวนซิงโครไนซ์ | 1 | 07/2004 | 23232348808 | Shop at ECS Tuning | |||||
| 11 | ปลอกเลื่อนนำร่อง สำหรับเกียร์ 3,4 | 1 | 07/2004 | 23001493757 | $126.10 | Shop at ECS Tuning | ||||
| 12 | แหวนซิงโครไนเซอร์ | 1 | 07/2004 | 23231037389 | $46.49 | Shop at ECS Tuning | ||||
| 13 | เฟืองเปลี่ยนเกียร์จังหวะที่ 4 | 1 | 07/2004 | 23221036624 | $190.73 | Shop at ECS Tuning | ||||
| 14 | แหวนสเปเซอร์ | 2 | 07/2004 | 23200662047 | $4.57 | Shop at ECS Tuning | ||||
| 15 | ตลับลูกปืนแบบลูกกลม | 1 | 07/2004 | 23121036984 | $26.63 | Shop at ECS Tuning | ||||
| 16 | ตลับลูกปืนเข็ม | 1 | 07/2004 | 23200630777 | $21.62 | Shop at ECS Tuning | ||||
| 17 | เฟืองเปลี่ยนเกียร์ 5 | 1 | 07/2004 | 23222326833 | Shop at ECS Tuning | |||||
| 18 | แหวนซิงโครไนเซอร์ | 1 | 07/2004 | 23231037389 | $46.49 | Shop at ECS Tuning | ||||
| 19 | RP REMAN, บูชนำร่อง, เกียร์ 5 | 1 | 07/2004 | 23232327705 | Shop at ECS Tuning | |||||
| 20 | แผ่นหยุด | 1 | 07/2004 | 23200662075 | $4.15 | Shop at ECS Tuning | ||||
| 21 | น็อต | M18X1,5 | 1 | 07/2004 | 23201037013 | $4.00 | Shop at ECS Tuning | |||
| 22 | แผ่นจุดยึด | 1 | 07/2004 | 23201037004 | $5.48 | Shop at ECS Tuning | ||||
| 23 | สกรูทอกซ์ | M8X15 | 2 | 07/2004 | 23201037068 | $1.13 | Shop at ECS Tuning | |||
| 24 | เซ็กเมนต์ | 4 | 07/2004 | 23200662267 | $1.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper GS5-65BH เอาต์พุตชาฟท์?
- This technical diagram illustrates the GS5-65BH เอาต์พุตชาฟท์ within the เกียร์ธรรมดา group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the เพลาหลัก (Part #23232326835).
- Which models use the hardware listed in this GS5-65BH เอาต์พุตชาฟท์?
- The hardware and components featured in the GS5-65BH เอาต์พุตชาฟท์ are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the เพลาหลัก (23232326835) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GS5-65BH เอาต์พุตชาฟท์ assembly?
- Each item in the GS5-65BH เอาต์พุตชาฟท์ corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the เพลาหลัก by locating its position on the schematic, which then links to the official BMW part number 23232326835 for the เกียร์ธรรมดา section.
