ชุดเปลี่ยนเกียร์/เกียร์จอดรถ ZF 3HP12 for BMW 1500-2000CS 1800 (1971)

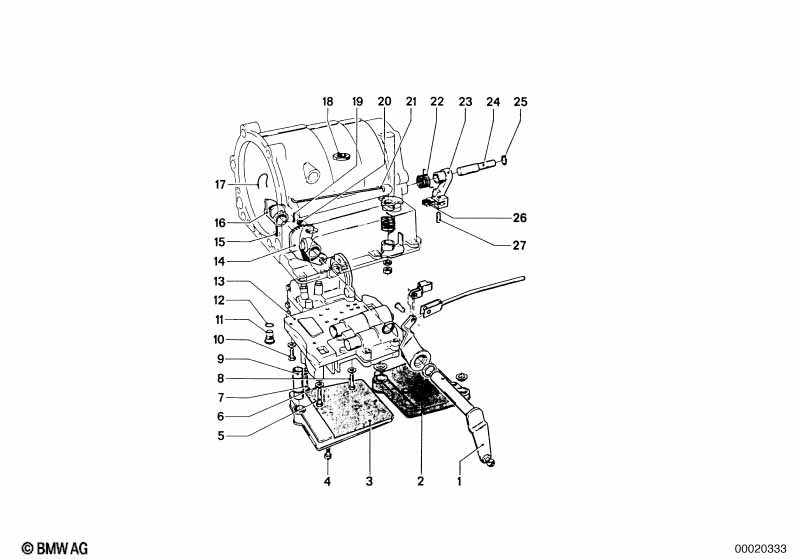

This ชุดเปลี่ยนเกียร์/เกียร์จอดรถ ZF 3HP12 technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | รถยนต์และการวางตำแหน่งชุดเกียร์ ดูที่ รูปภาพที่มีแผนผังชุดเกียร์ ทั้งชุด R-1-2-A-0-P |
|||||||||
| 02 | ตัวกรองน้ำมันเครื่อง | 1 | 24331200406 | ENDED | Shop at ECS Tuning | |||||
| -> Getr.Nr. 12787 | ||||||||||
| 03 | ตัวกรองน้ำมันเครื่อง | 1 | 24311666399 | ENDED | Shop at ECS Tuning | |||||
| Getr.Nr. -> 12787 | ||||||||||
| 13 | ชุดวาล์วควบคุม อะไหล่แลกเปลี่ยน | 1 | 24341202531 | ENDED | Shop at ECS Tuning | |||||
| Getr.Nr. -> 12787 | ||||||||||
| 13 | ชุดวาล์วควบคุม อะไหล่แลกเปลี่ยน | 3HP12-6 | 1 | 24341202532 | ENDED | Shop at ECS Tuning | ||||
| Getr.Nr. 18816 - 30164 | ||||||||||
| 21 | แกนเชื่อมต่อ | 1 | 24341201564 | ENDED | Shop at ECS Tuning | |||||
| Getr.Nr. 18816 - 30164 | ||||||||||
| 24 | สลัก | 1 | 24341666393 | ENDED | Shop at ECS Tuning | |||||
| Getr.Nr. 18816 - 30164 | ||||||||||
| 25 | โอริง | 1 | 24121666395 | $1.62 | ENDED | Shop at ECS Tuning | ||||
| Getr.Nr. 18816 - 30164 | ||||||||||
| 26 | สลักสปริง | 1 | 24341666389 | ENDED | Shop at ECS Tuning | |||||
| Getr.Nr. 18816 - 30164 | ||||||||||
| 27 | หมุดย้ำ | 9X16 | 1 | 07119941660 | ENDED | Shop at ECS Tuning | ||||
| Getr.Nr. 18816 - 30164 | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
