ชิ้นส่วนอะไหล่ชุดเกียร์ for BMW MINI R50 Cooper (2000)

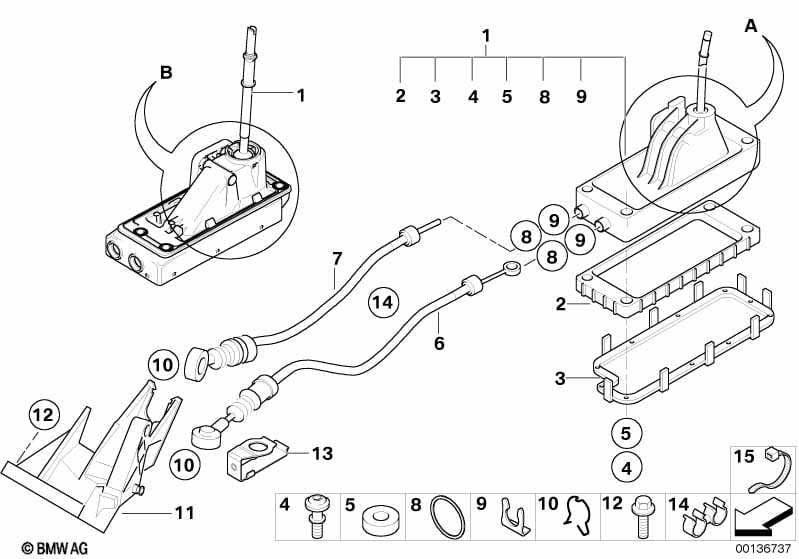

This ชิ้นส่วนอะไหล่ชุดเกียร์ technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | สำหรับรถยนต์ที่มี ระบบเกียร์อัตโนมัติ และ ชุดเกียร์อัตโนมัติแบบสปอร์ต |
S205A=ไม่ S2TBA=ไม่ |
||||||||
| เหมาะสำหรับสภาพ "B" เท่านั้น | ||||||||||
| 01 | หูยึดชุดคันเกียร์ | 1 | 01/2004 | 25117542693 | $151.29 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | คลิปยึดสายสลิง | 2 | 01/2004 | 25117527266 | $1.18 | Shop at ECS Tuning | ||||
| -- | แผงพื้น | 1 | 01/2004 | 25117527267 | $14.68 | Shop at ECS Tuning | ||||
| -- | ปะเก็นโครงรอบนอก | 1 | 01/2004 | 25117527282 | $8.02 | Shop at ECS Tuning | ||||
| -- | สกรูยึด | M6X30 | 4 | 01/2004 | 25117527283 | $1.82 | Shop at ECS Tuning | |||
| -- | ซีล | 2 | 01/2004 | 25117527287 | $1.18 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "A" เท่านั้น | ||||||||||
| 01 | หูยึดชุดคันเกียร์ | 1 | 01/2004 | 25117515463 | $151.29 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "B" เท่านั้น | ||||||||||
| 02 | ปะเก็นโครงรอบนอก | 1 | 01/2004 | 25117527282 | $8.02 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "A" เท่านั้น | ||||||||||
| 02 | ซีลโครงรถ | 1 | 01/2004 | 25117515459 | $9.08 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "B" เท่านั้น | ||||||||||
| 03 | แผงพื้น | 1 | 01/2004 | 25117527267 | $14.68 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "A" เท่านั้น | ||||||||||
| 03 | แผงพื้น | 1 | 01/2004 | 25117515458 | $7.25 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "B" เท่านั้น | ||||||||||
| 04 | สกรูยึด | M6X30 | 4 | 01/2004 | 25117527283 | $1.82 | Shop at ECS Tuning | |||
| เหมาะสำหรับสภาพ "A" เท่านั้น | ||||||||||
| 04 | สกรูยึด | M6X30 | 4 | 01/2004 | 25117515460 | $1.50 | Shop at ECS Tuning | |||
| 05 | ปลั๊กต่อ ตัวเมีย | 4 | 01/2004 | 25117516171 | $1.18 | Shop at ECS Tuning | ||||
| เฉพาะใช้กับ | ||||||||||
| -- | สกรูยึด | M6X30 | X | 01/2004 | 25117515460 | $1.50 | Shop at ECS Tuning | |||
| 06 | สายเปลี่ยนเกียร์, ราวเลือกเกียร์ | L=1100MM | 1 | 01/2004 | 25117515455 | $134.04 | Shop at ECS Tuning | |||
| 07 | สายเปลี่ยนเกียร์, แกนเลือกเกียร์ | L=1000MM | 1 | 01/2004 | 25117515456 | $97.40 | Shop at ECS Tuning | |||
| เหมาะสำหรับสภาพ "B" เท่านั้น | ||||||||||
| 08 | ซีล | 2 | 01/2004 | 25117527287 | $1.18 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "A" เท่านั้น | ||||||||||
| 08 | ซีล | 2 | 01/2004 | 25117515462 | $1.93 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "B" เท่านั้น | ||||||||||
| 09 | คลิปยึดสายสลิง | 2 | 01/2004 | 25117527266 | $1.18 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "A" เท่านั้น | ||||||||||
| 09 | คลิปยึดสายสลิง | 2 | 01/2004 | 25117515457 | $1.13 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "B" เท่านั้น | ||||||||||
| 10 | คลิปยึดสายสลิง | 2 | 01/2004 | 25117527285 | $0.85 | Shop at ECS Tuning | ||||
| เหมาะสำหรับสภาพ "A" เท่านั้น | ||||||||||
| 10 | คลิปยึดสายสลิง | 2 | 01/2004 | 25117515461 | $4.70 | Shop at ECS Tuning | ||||
| 11 | ข้อเหวี่ยงแบบแกว่ง | 1 | 01/2004 | 25111504207 | $30.78 | Shop at ECS Tuning | ||||
| 12 | สกรูหน้าแปลน | M8X1,25X30MM | 3 | 01/2004 | 07130782603 | $0.65 | Shop at ECS Tuning | |||
| ไม่มีชิ้นส่วนอะไหล่ให้บริการอีกต่อไป กรุณาใช้สายเคเบิลสับเปลี่ยน 7515455ไม |
||||||||||
| 13 | ที่รองรับ | 1 | 05/2002 | 25117525816 | ENDED | Shop at ECS Tuning | ||||
| 14 | คลิปรัดสาย | 1 | 01/2004 | 25117531718 | $1.18 | ENDED, SI 250103033, SI 250203034 | Shop at ECS Tuning | |||
| 15 | ตัวต่อสาย | L=300MM | 1 | 01/2004 | 61130302967 | $0.20 | ENDED, SI 250103033, SI 250203034 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service-Information (ข้อมูลการบริการ)
