พวงมาลัยเพาเวอร์ for BMW 3 Series E30 320i (1992)

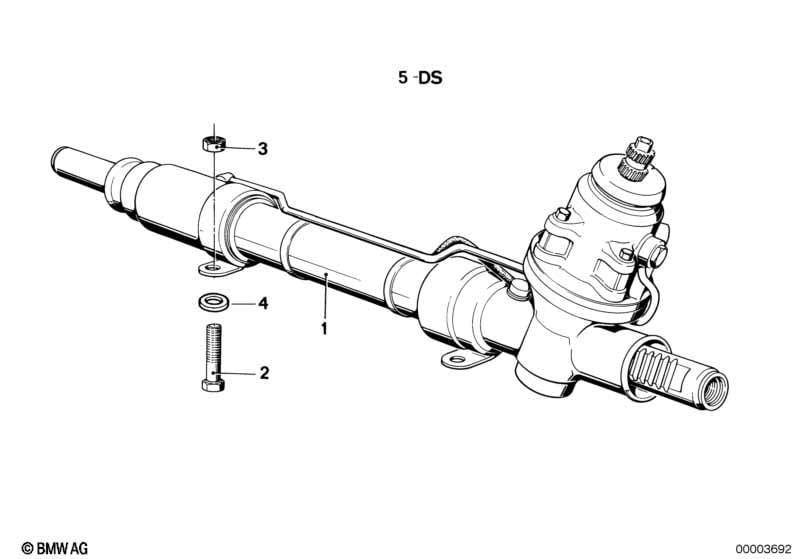

This พวงมาลัยเพาเวอร์ technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี รุ่นประเทศญี่ปุ่น |
L807A=ใช่ |
|||||||||
| 02 | สกรูหัวหกเหลี่ยมพร้อมหน้าแปลน | M10X82 | 2 | 07119915750 | $2.67 | ENDED | Shop at ECS Tuning | |||
| 03 | น็อตหกเหลี่ยมพร้อมหน้าแปลน | M10-10 ZNS | 2 | 31351095452 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 05 | ชุดปะเก็นระบบบังคับเลี้ยวไฮดรอลิก | 1 | 11/1986 | 32131132798 | $84.08 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ชุดอะไหล่จับยึด | 1 | 11/1986 | 32131132799 | $8.42 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
