วงมล.เพาฯ-ปั๊มใบพัด/ฝาประกับแบริ่ง for BMW 3 Series E21 318i (1982)

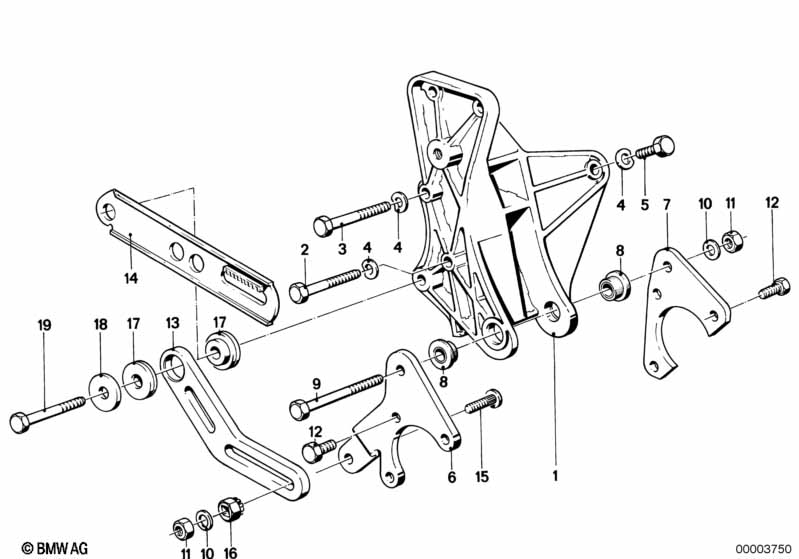

This วงมล.เพาฯ-ปั๊มใบพัด/ฝาประกับแบริ่ง technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ตัวยึดเสริม | 1 | 32411270324 | $95.70 | ENDED | Shop at ECS Tuning | ||||
| 02 | โบลท์หัวหกเหลี่ยม | M8X75-8.8-ZNS3 | 1 | 07119906028 | Shop at ECS Tuning | |||||
| 03 | โบลท์หัวหกเหลี่ยม | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 04 | แหวนรองแบบสปริง | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | โบลท์หัวหกเหลี่ยม | M8X25-8.8-ZNNIV | 1 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 05 | โบลท์หัวหกเหลี่ยม | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 06 | แผ่นฐานรอง | 1 | 32411276636 | $13.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | ตัวยึด | 1 | 32411270281 | $6.25 | Shop at ECS Tuning | |||||
| 08 | บูช | 2 | 32411270279 | $3.73 | ENDED | Shop at ECS Tuning | ||||
| 09 | โบลท์หัวหกเหลี่ยม | M8X110-8.8 | 1 | 07119906728 | Shop at ECS Tuning | |||||
| 10 | แหวนรอง | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | น็อตหกเหลี่ยมแบบล็อคด้วยตนเอง | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 12 | โบลท์หัวหกเหลี่ยม | M8X16-10.9-PHR | X | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 13 | บาร์ปรับ | 1 | 12311266830 | $5.08 | Shop at ECS Tuning | |||||
| 14 | บาร์ปรับ | 1 | 12311273638 | $5.35 | Shop at ECS Tuning | |||||
| 15 | สกรูหัวกลมแบน | M8X20 | 1 | 07119910437 | $0.52 | Shop at ECS Tuning | ||||
| 15 | สกรูหัวกลมแบน | M8X35 | 1 | 12311276539 | $0.92 | ENDED | Shop at ECS Tuning | |||
| 16 | เฟืองพา | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
| 17 | บูช | 2 | 11721261404 | $7.58 | Shop at ECS Tuning | |||||
| 18 | แหวนรองแบบสปริง | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 18 | แหวนรอง | 8,4X24X2-ZNS3 | 1 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 19 | โบลท์หัวหกเหลี่ยม | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
