พวงมาลัยเพาเวอร์-ปั๊มใบพัด for BMW 3 Series E30 320i (1992)

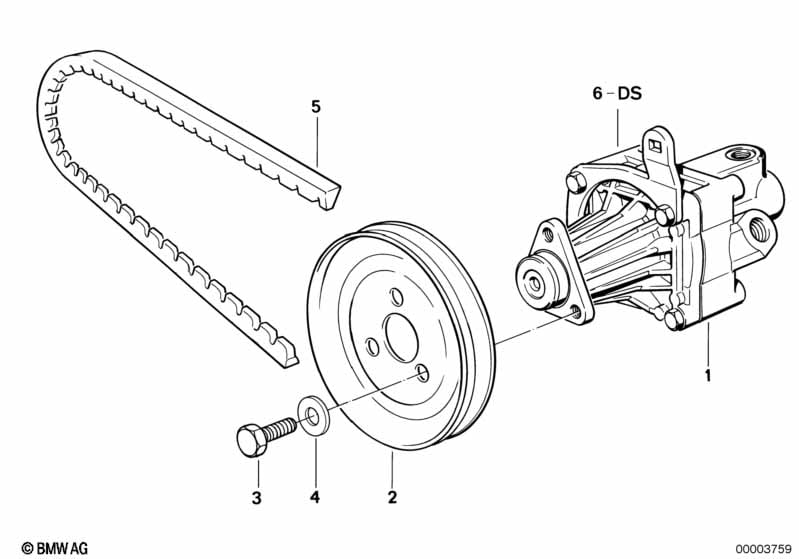

This พวงมาลัยเพาเวอร์-ปั๊มใบพัด technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี รุ่นประเทศญี่ปุ่น |
L807A=ใช่ |
|||||||||
| 01 | ปั๊มใบพัด อะไหล่แลกเปลี่ยน | 1 | 32411141207 | ENDED | Shop at ECS Tuning | |||||
| 02 | พูลเล่ย์ | 1 | 32421730097 | ENDED | Shop at ECS Tuning | |||||
| 03 | โบลท์หัวหกเหลี่ยม | M8X12 | 3 | 01/1993 | 07119913616 | $0.25 | ENDED | Shop at ECS Tuning | ||
| 04 | แหวนรอง | A8,4-200 | 3 | 01/1993 | 07119900052 | $0.11 | ENDED | Shop at ECS Tuning | ||
| 05 | สายพานพัดลม | 9,5X825 | 1 | 32421706597 | Shop at ECS Tuning | |||||
| 06 | ชุดปะเก็นปั๊มแบบใช้ใบพัด | VICKERS | 1 | 32411133023 | $37.04 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
