แกนพวงมาลัย-แกนล้อเลี้ยว ส่วนล่าง for BMW 3 Series E30 320i (1992)

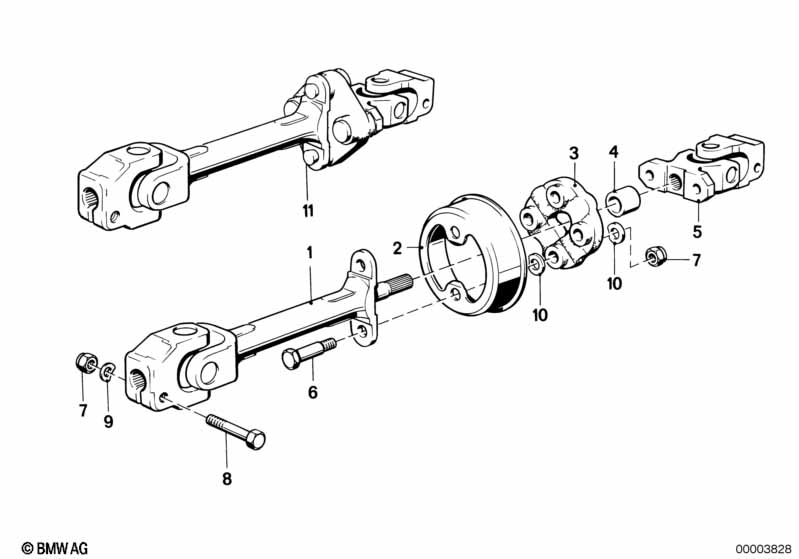

This แกนพวงมาลัย-แกนล้อเลี้ยว ส่วนล่าง technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี พวงมาลัยเพาเวอร์ |
=ใช่ |
|||||||||
| 01 | ชุดข้อต่อช่วงล่าง | 1 | 32311153333 | ENDED | Shop at ECS Tuning | |||||
| 03 | ข้อต่อยูนิเวอร์ซัล | 1 | 32311153993 | $28.27 | Shop at ECS Tuning | |||||
| 04 | บูช | 1 | 32311114508 | $0.68 | Shop at ECS Tuning | |||||
| 05 | ข้อต่อหมุน (ล้อ) | 1 | 32311154414 | $116.86 | Shop at ECS Tuning | |||||
| 06 | โบลท์ติดตั้ง | 4 | 32311153995 | $3.41 | Shop at ECS Tuning | |||||
| 09 | แหวนรองแบบสปริง | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | แหวนรองแบบสปริง | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
