แกนพวงมาลัย-ท่อ/แผ่นปิด for BMW 1500-2000CS 1800

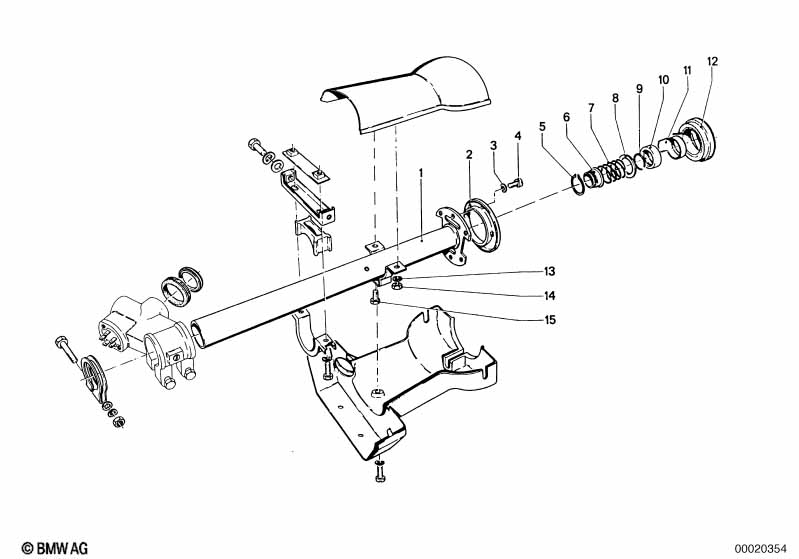

This แกนพวงมาลัย-ท่อ/แผ่นปิด technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ท่อแกนพวงมาลัย | 1 | 32312682205 | ENDED | Shop at ECS Tuning | |||||
| 02 | แหวน | 1 | 32332682170 | ENDED | Shop at ECS Tuning | |||||
| 03 | แหวนรองแบบสปริง | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | สกรูฝาสูบ Am5x32-4.8 Zn8 Mt | 0000000000 | 3 | 07119919442 | ENDED | Shop at ECS Tuning | ||||
| 05 | แหวนล็อค | 1 | 32311113566 | $0.37 | Shop at ECS Tuning | |||||
| 06 | ตลับลูกปืนแกนล้อเลี้ยว | 35,10X18,10 | 1 | 32311150601 | $8.49 | Shop at ECS Tuning | ||||
| 07 | สปริงอัด | 1 | 32312682142 | ENDED | Shop at ECS Tuning | |||||
| 08 | แหวนรอง | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 09 | แหวนล็อค | 1 | 32312083712 | $0.37 | Shop at ECS Tuning | |||||
| 10 | แหวน | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 11 | ลูกเบี้ยวแบบป้อนกลับ | 1 | 32321118825 | $15.17 | ENDED | Shop at ECS Tuning | ||||
| 12 | แหวน | 1 | 32332682330 | ENDED | Shop at ECS Tuning | |||||
| ออปชั่น | ||||||||||
| 13 | แหวนรองแบบสปริง | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 13 | แหวนรองแบบสปริง | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 14 | น็อตหกเหลี่ยม | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| ออปชั่น | ||||||||||
| 15 | โบลท์หัวหกเหลี่ยม | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 แกนพวงมาลัย-ท่อ/แผ่นปิด?
- This technical diagram illustrates the แกนพวงมาลัย-ท่อ/แผ่นปิด within the การตั้งศูนย์ล้อและระบบบังคับเลี้ยว group for the 1500-2000CS 1800. It provides a detailed exploded view of the components, identifying key parts such as the ท่อแกนพวงมาลัย (Part #32312682205).
- Which models use the hardware listed in this แกนพวงมาลัย-ท่อ/แผ่นปิด?
- The hardware and components featured in the แกนพวงมาลัย-ท่อ/แผ่นปิด are specific to the 1500-2000CS 1800. These technical specifications ensure that parts like the ท่อแกนพวงมาลัย (32312682205) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the แกนพวงมาลัย-ท่อ/แผ่นปิด assembly?
- Each item in the แกนพวงมาลัย-ท่อ/แผ่นปิด corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the ท่อแกนพวงมาลัย by locating its position on the schematic, which then links to the official BMW part number 32312682205 for the การตั้งศูนย์ล้อและระบบบังคับเลี้ยว section.
