พวงมาลัยเพาเวอร์-ท่อน้ำมัน for BMW 7 Series F02 730Li

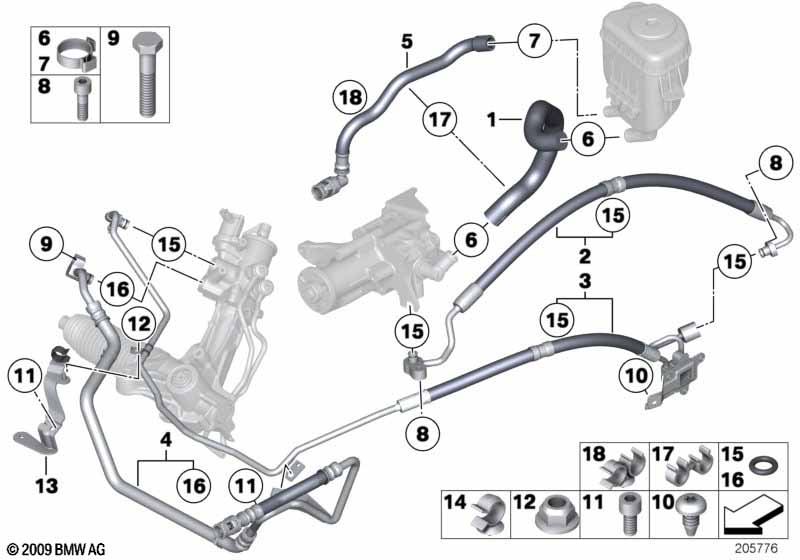

This พวงมาลัยเพาเวอร์-ท่อน้ำมัน technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ท่อดูด | 1 | 32416799640 | Shop at ECS Tuning | ||||||
| 02 | ท่อต่อ | 1 | 32416796359 | Shop at ECS Tuning | ||||||
| สำหรับรถยนต์ที่มี ส่วนประกอบของระบบบังคับเลี้ยวแบบแอ็คทีฟ และ ระบบไดนามิกไดรฟ์ |
S2VHA=ไม่ S229A=ไม่ |
|||||||||
| 04 | ท่อน้ำมันไหลกลับ | 1 | 09/2010 | 32416782005 | ENDED | Shop at ECS Tuning | ||||
| 04 | ่อน้ำมันไหลกลับ, ระบบบคล. แบบแอ็คทีฟ | 1 | 08/2010 | 32416782006 | +core | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี ส่วนประกอบของระบบบังคับเลี้ยวแบบแอ็คทีฟ และ ระบบไดนามิกไดรฟ์ |
S2VHA=ใช่ S229A=ไม่ |
|||||||||
| 04 | ่อน้ำมันไหลกลับ, ระบบบคล. แบบแอ็คทีฟ | 1 | 32416782006 | +core | Shop at ECS Tuning | |||||
| 05 | ท่อไหลกลับของหม้อน้ำ | 1 | 32416796528 | Shop at ECS Tuning | ||||||
| 06 | แคลมป์รัดท่อ | D= 25MM | 2 | 32416763470 | $1.27 | Shop at ECS Tuning | ||||
| 07 | แคลมป์รัดท่อ | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 08 | สกรู Isa | M8X25-10.9-ZNS3 | 1 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 09 | โบลท์หัวหกเหลี่ยม | M8X40-8.8-ZNS3 | 1 | 07119902910 | $2.05 | Shop at ECS Tuning | ||||
| 10 | สกรูทอกซ์แบบเกลียวฝัง | M6X13-ZNNIVSI | 3 | 31146786689 | Shop at ECS Tuning | |||||
| 13 | ตัวยึดท่อน้ำมันไหลกลับ | 1 | 32416788928 | Shop at ECS Tuning | ||||||
| 14 | แคลมป์รัดท่อ | 1 | 32416767170 | $0.62 | Shop at ECS Tuning | |||||
| 15 | โอริง | 11X1,8 HNBR | 3 | 32416788696 | $5.00 | Shop at ECS Tuning | ||||
| 16 | โอริง | 11X1,8 HNBR | 1 | 32416788696 | $5.00 | Shop at ECS Tuning | ||||
| 17 | แคลมป์รัดท่อ | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 18 | คลิปยึดท่อ | 1 | 32416770363 | $1.07 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
