เหล็กกันโคลง ด้านหลัง for BMW 3 Series E30 325e (1987)

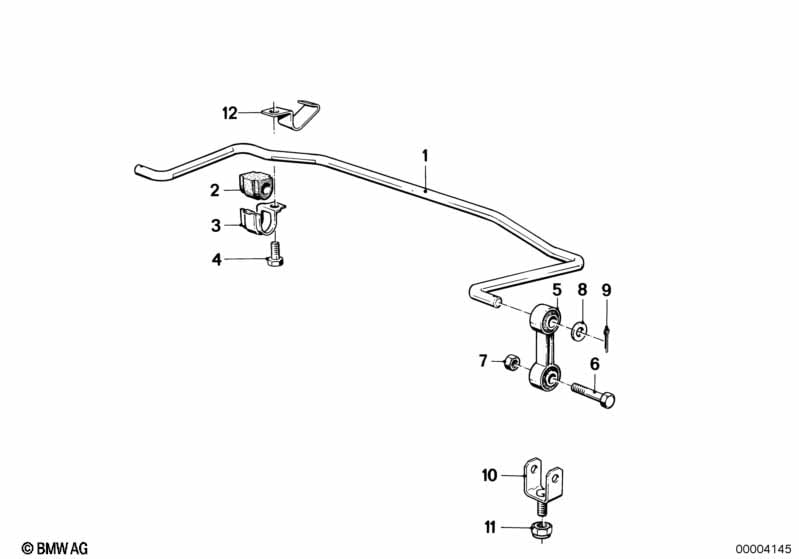

This เหล็กกันโคลง ด้านหลัง technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี รุ่นประเทศญี่ปุ่น เหมาะสำหรับโช้คอัพ Bilstein เท่านั้น |
L807A=ใช่ |
|||||||||
| 01 | เหล็กกันโคลง ด้านหลัง | D=14,5MM | 1 | 03/1985 | 33551129194 | $202.17 | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี รุ่นประเทศญี่ปุ่น |
L807A=ใช่ |
|||||||||
| 02 | ยางยึดเหล็กกันโคลง | D=14,5MM | 2 | 33551130349 | $5.46 | Shop at ECS Tuning | ||||
| 02 | ยางยึดเหล็กกันโคลง | D=13,5MM | 2 | 33551131290 | $5.46 | Shop at ECS Tuning | ||||
| 03 | ส่วนรองรับเหล็กกันโคลง | 2 | 33551129195 | $1.52 | Shop at ECS Tuning | |||||
| 04 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M8X16-Z3 | 2 | 07119915066 | $0.62 | Shop at ECS Tuning | ||||
| 05 | แกนต่อยึดเหล็กกันโคลง | 2 | 33551124375 | Shop at ECS Tuning | ||||||
| จำเป็นสำหรับการซ่อม | ||||||||||
| -- | โบลท์หัวหกเหลี่ยม | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| -- | น็อตหกเหลี่ยมแบบล็อคด้วยตนเอง | M8 | 2 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 06 | โบลท์หัวหกเหลี่ยม | M8X43-8.8-ZNS3 | 2 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| 07 | น็อตหกเหลี่ยมแบบล็อคด้วยตนเอง | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | แหวนสเปเซอร์ | 18X12X1 | 2 | 07119932631 | $0.92 | Shop at ECS Tuning | ||||
| 09 | สลักหัวผ่า | 3,2X25 | 2 | 07119945196 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | ตัวยึดส่วนรองรับแขนสวิง | 2 | 33321127717 | $3.22 | Shop at ECS Tuning | |||||
| 11 | น็อตแบบปลอกที่ล็อคตัวเองได้ | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 11 | น็อตแบบปลอกที่ล็อคตัวเองได้ | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e เหล็กกันโคลง ด้านหลัง?
- This technical diagram illustrates the เหล็กกันโคลง ด้านหลัง within the ช่วงล่างหลัง group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the เหล็กกันโคลง ด้านหลัง (Part #33551129194).
- Which models use the hardware listed in this เหล็กกันโคลง ด้านหลัง?
- The hardware and components featured in the เหล็กกันโคลง ด้านหลัง are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the เหล็กกันโคลง ด้านหลัง (33551129194) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the เหล็กกันโคลง ด้านหลัง assembly?
- Each item in the เหล็กกันโคลง ด้านหลัง corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the เหล็กกันโคลง ด้านหลัง by locating its position on the schematic, which then links to the official BMW part number 33551129194 for the ช่วงล่างหลัง section.
