ท่อเบรก ด้านหน้า for BMW 1502-2002tii 2002 (1975)

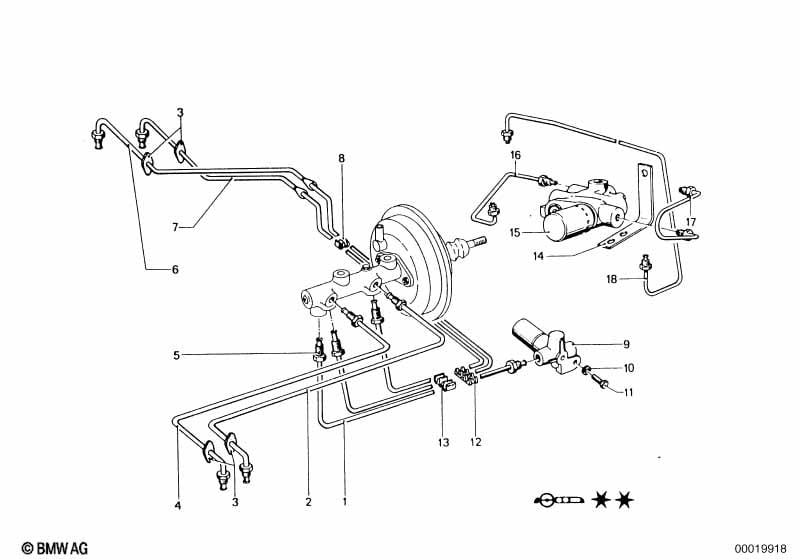

This ท่อเบรก ด้านหน้า technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | ท่อ | M10/M10-283MM | 1 | 03/1966 | 07/1976 | 34326755328 | $5.83 | Shop at ECS Tuning | ||
| 03 | ูบูชยาง | 4 | 34321102417 | $6.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | ท่อ | M10/M10-310MM | 1 | 03/1966 | 07/1976 | 34326755560 | $7.60 | Shop at ECS Tuning | ||
| 05 | คอนเนคเตอร์ | M10X1 | 9 | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 06 | ท่อ | M10/M10-1656MM | 1 | 03/1966 | 07/1977 | 34326755634 | $8.65 | Shop at ECS Tuning | ||
| 07 | ท่อ | 1 | 03/1966 | 07/1976 | 34322283835 | $11.17 | Shop at ECS Tuning | |||
| 08 | แคลมป์ | 2 | 03/1966 | 07/1976 | 34321102861 | ENDED | Shop at ECS Tuning | |||
| 12 | ตัวยึดท่อเบรค | 1 | 03/1966 | 07/1976 | 34321107992 | $1.02 | Shop at ECS Tuning | |||
| 13 | ตัวยึด | 1 | 03/1966 | 07/1976 | 34321102862 | $0.95 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 ท่อเบรก ด้านหน้า?
- This technical diagram illustrates the ท่อเบรก ด้านหน้า within the เบรค group for the 1502-2002tii 2002 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the ท่อ (Part #34326755328).
- Which models use the hardware listed in this ท่อเบรก ด้านหน้า?
- The hardware and components featured in the ท่อเบรก ด้านหน้า are specific to the 1502-2002tii 2002 produced during 1975. These technical specifications ensure that parts like the ท่อ (34326755328) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ท่อเบรก ด้านหน้า assembly?
- Each item in the ท่อเบรก ด้านหน้า corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the ท่อ by locating its position on the schematic, which then links to the official BMW part number 34326755328 for the เบรค section.
