ชุดปรับระดับเท้า, ชุดเกียร์ธรรมดา for BMW MINI F56 JCW

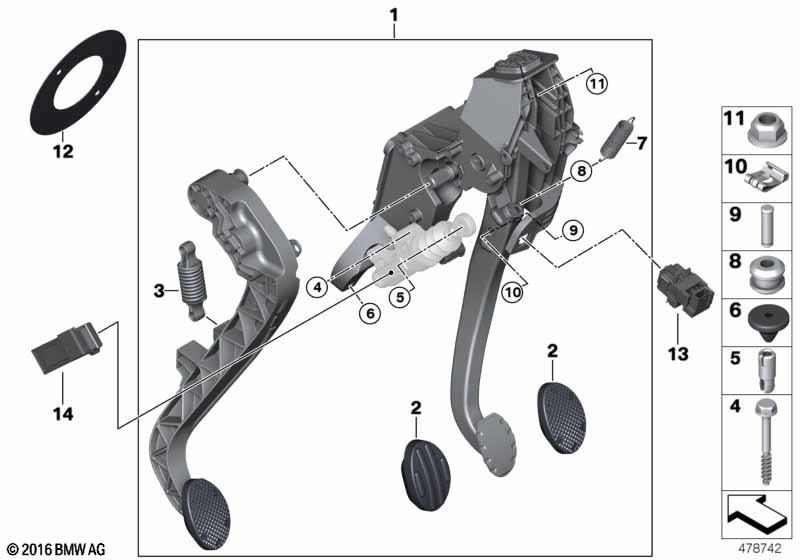

This ชุดปรับระดับเท้า, ชุดเกียร์ธรรมดา technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | สำหรับรถยนต์ที่มี ระบบเกียร์อัตโนมัติ และ ชุดเกียร์อัตโนมัติแบบสปอร์ต และ เกียร์สปอร์ตที่มีคลัตช์คู่ และ สเต็ปโทรนิกที่มีกระปุกเกียร์คลัชสองตัว |
S205A=ไม่ S2TBA=ไม่ S2TCA=ไม่ S2TFA=ไม่ |
||||||||
| 01 | ชุดทำงานคันเหยียบ ครบชุด | 1 | 35006870846 | Shop at ECS Tuning | ||||||
| ทั้งชุดพร้อมด้วยชิ้นส่วนจับยึด | ||||||||||
| 02 | ที่หุ้มแป้นเหยียบพร้อมแผ่นสอดเหล็กกล้า | 2 | 35206758751 | $19.29 | Shop at ECS Tuning | |||||
| แป้นเบรก และ แป้นคลัตช์ |
||||||||||
| 03 | สปริงอัด | 1 | 35306860671 | Shop at ECS Tuning | ||||||
| แป้นคลัตช์ | ||||||||||
| 04 | สกรูแบบปลอก | 2 | 35006859619 | Shop at ECS Tuning | ||||||
| กระบอกคลัตช์ สัญญาณเข้า | ||||||||||
| 05 | สลัก, แม่ปั๊ม | 1 | 35006860670 | Shop at ECS Tuning | ||||||
| แป้นคลัตช์ | ||||||||||
| 06 | ตัวยึดแป้นคลัตช์ | 1 | 35306860672 | Shop at ECS Tuning | ||||||
| 07 | สปริงแรงตึง | 1 | 35006860668 | Shop at ECS Tuning | ||||||
| แป้นเบรก | ||||||||||
| 08 | ปลอกยาง | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| แป้นเบรก | ||||||||||
| 09 | สลักแป้นเบรก | 1 | 34336772928 | $0.66 | Shop at ECS Tuning | |||||
| จุดยึด หม้อลมเบรก |
||||||||||
| 10 | ฟิวส์ | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| จุดยึด หม้อลมเบรก |
||||||||||
| 11 | น็อตแบบปลอกที่ล็อคตัวเองได้ | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| จุดยึด ตัวยึดเสริม |
||||||||||
| 12 | ซีลแม่ปั๊มเบรก | 1 | 34336857618 | Shop at ECS Tuning | ||||||
| 13 | สวิตช์ไฟเบรค | 1 | 35006876896 | Shop at ECS Tuning | ||||||
| 14 | โมดูล, สวิตช์คลัตช์ | 1 | 35426876898 | Shop at ECS Tuning | ||||||
