ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19" for BMW 3 Series F30 328i (2014)

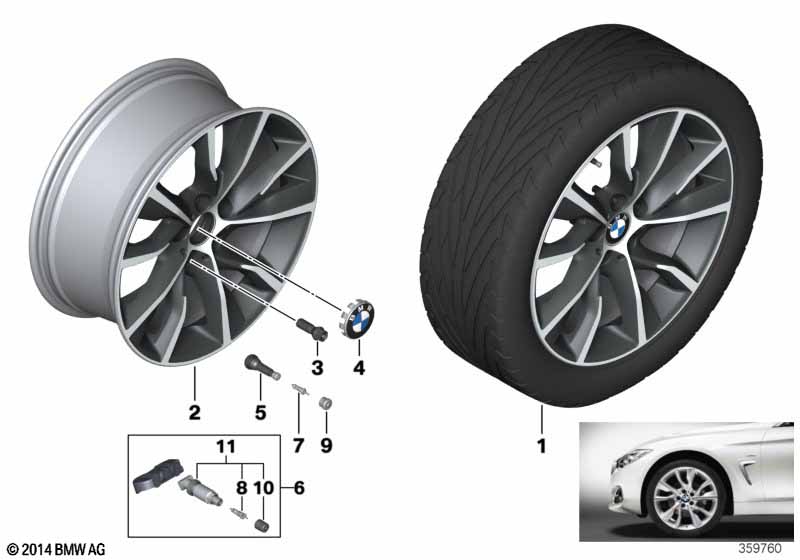

This ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19" technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ข้อควรใส่ใจ: หมายเหตุ : เฉพาะรถยนต์ที่ได้รับการรับรองจาก EG BE เท่านั้น ชุดล้อและยางที่เลือกที่ต้อง ลงทะเบียน ให้ตรวจสอบ CoC ภายใน รถยนต์ว่าชุดล้อและยางดังกล่าว ได้รับการลงทะเบียนแล้วหรือยัง ในกรณี ให้ปฏิบัติข้อกำหนด ของแต่ละประเทศ !! สำหรับรถยนต์ที่มี ล้ออัลลอย Turbine styling แบบ402 ของBMW |
S2G7A=ใช่ |
||||||||
| 02 | จานกะทะล้ออัลลอยสีวาว | 8JX19 ET:36 | 2 | 03/2014 | 36116796258 | Shop at ECS Tuning | ||||
| การติดตั้งเข้ากับช่วงล่างหลัง ยางรถประเภทต่างๆ |
||||||||||
| 02 | จานกะทะล้ออัลลอยสีวาว | 8,5JX19 ET:47 | 2 | 03/2014 | 36116796259 | Shop at ECS Tuning | ||||
| 03 | โบลท์ล้อ สี SCHWARZ | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | ฝาครอบดุมล้อแบบมีขอบโครเมี่ยม | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ไม่ |
|||||||||
| 05 | วาล์วของยาง | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ใช่ |
|||||||||
| 06 | ชุดอิเล็กทรอนิกส์ล้อ RDCi มีวาล์วสกรู | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ไม่ |
|||||||||
| 07 | ชุดวาล์ว | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ใช่ |
|||||||||
| 08 | จุกวาล์ว RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ไม่ |
|||||||||
| 09 | แผ่นปิดวาล์ว | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ใช่ |
|||||||||
| 10 | ฝาครอบวาล์ว RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | ชุดอุปกรณ์ซ่อม, วาล์วสกรู RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 328i ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19"?
- This technical diagram illustrates the ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19" within the ล้อและยาง group for the 3 Series F30 328i produced during 2014. It provides a detailed exploded view of the components, identifying key parts such as the จานกะทะล้ออัลลอยสีวาว (Part #36116796258).
- Which models use the hardware listed in this ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19"?
- The hardware and components featured in the ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19" are specific to the 3 Series F30 328i produced during 2014. These technical specifications ensure that parts like the จานกะทะล้ออัลลอยสีวาว (36116796258) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19" assembly?
- Each item in the ล้ออัลลอย BMW แบบเทอร์ไบน์ 402 ขนาด 19" corresponds to the numbered list below the illustration. For the 3 Series F30 328i, you can identify the จานกะทะล้ออัลลอยสีวาว by locating its position on the schematic, which then links to the official BMW part number 36116796258 for the ล้อและยาง section.
