BMW ล้ออัลลอย M, ซี่ล้อแฉก 512 - 18" for BMW 2 Series F45 Active Tourer 218d (2015)

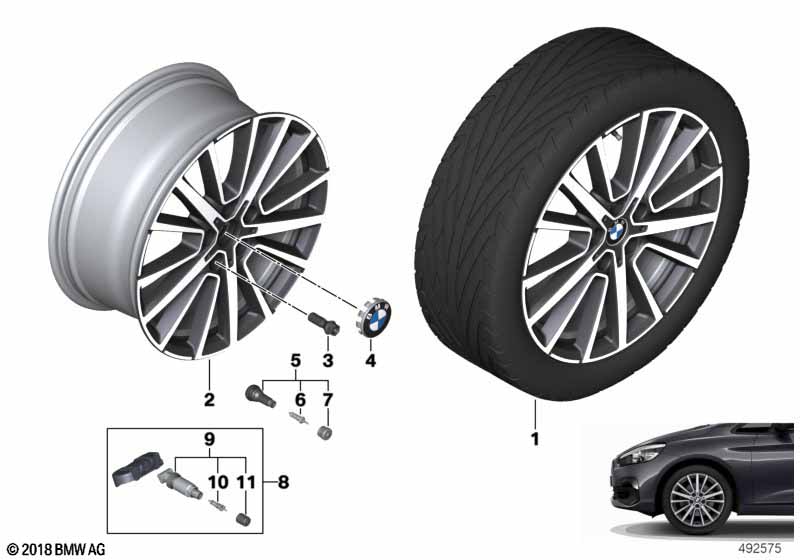

This BMW ล้ออัลลอย M, ซี่ล้อแฉก 512 - 18" technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ข้อควรใส่ใจ: สำหรับรถยนต์ที่มี S25NA BMW ล้ออัลลอยซี่ล้อแฉก 512,ฉุกเฉิน หรือ S25NA BMW, ล้ออัลลอย, ซี่ล้อแฉก 512 |
S25MA=ใช่ S25NA=ใช่ |
||||||||
| 02 | จานหมุน โลหะเบา orbitgrey | 8JX18 ET:57 | 4 | 36116851786 | Shop at ECS Tuning | |||||
| 03 | โบลท์ล้อ สี SCHWARZ | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | ฝาครอบดุมล้อแบบมีขอบโครเมี่ยม | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ไม่ |
|||||||||
| 05 | วาล์วของยาง | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | ชุดวาล์ว | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | แผ่นปิดวาล์ว | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี เกจวัดความดันลมยางรถ |
S2VBA=ใช่ |
|||||||||
| 08 | ชุดอิเล็กทรอนิกส์ล้อ RDCi มีวาล์วสกรู | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| 09 | ชุดอุปกรณ์ซ่อม, วาล์วสกรู RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
| 10 | จุกวาล์ว RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| 11 | ฝาครอบวาล์ว RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
