บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู for BMW 3 Series E46 330d (2004)

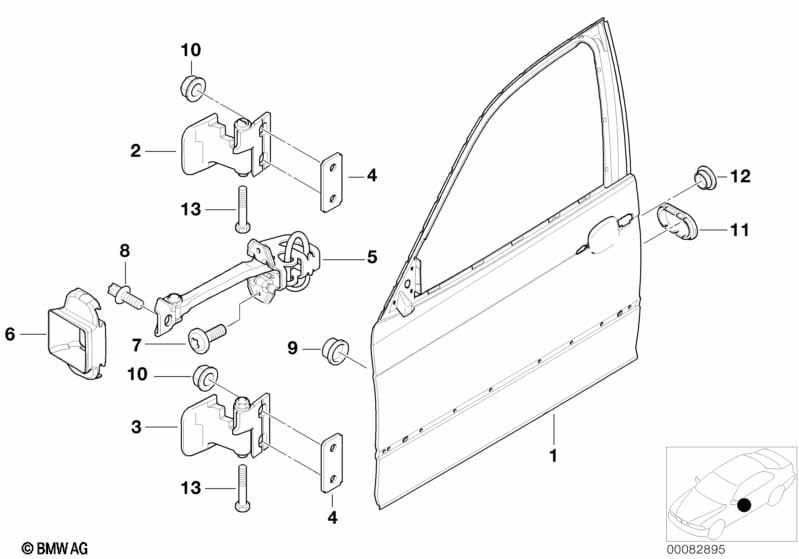

This บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ประตู ด้านหน้าซ้าย | 1 | 41517034151 | $543.60 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| 01 | ประตู ด้านหน้าขวา | 1 | 41517034152 | $543.60 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | จิ๊ก | TÜRE E46/4 | 1 | 01399791459 | $1.68 | Shop at ECS Tuning | ||||
| -- | จิ๊ก | TÜRE E46/4 | 1 | 01399791460 | $1.68 | Shop at ECS Tuning | ||||
| 02 | บานพับประตูหน้า ส่วนบนซ้าย | 1 | 41518240079 | $29.79 | Shop at ECS Tuning | |||||
| 02 | บานพับประตูหน้า ส่วนบนขวา | 1 | 41518240080 | $29.79 | Shop at ECS Tuning | |||||
| 03 | บานพับประตูหน้า ส่วนล่างซ้าย | 1 | 41518240081 | $29.79 | Shop at ECS Tuning | |||||
| 03 | บานพับประตูหน้า ส่วนล่างขวา | 1 | 41518240082 | $29.79 | Shop at ECS Tuning | |||||
| 04 | แหวนสเปเซอร์ | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 04 | แหวนสเปเซอร์ | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 05 | ตัวกันกระแทกประตู ด้านหน้า | 2 | 51218160959 | $36.05 | Shop at ECS Tuning | |||||
| 06 | ปะเก็นตัวกันกระแทกประตูหน้า | 2 | 51218208647 | $8.45 | Shop at ECS Tuning | |||||
| 07 | โบลท์หัวทอร์กพร้อมแหวนรอง | ISA M6X10 | 4 | 07147184168 | $0.62 | Shop at ECS Tuning | ||||
| 08 | โบลท์หัวทอร์กพร้อมแหวนรอง | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | ฝาปิดกัน | SCHWARZ | 2 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 10 | น็อตหกเหลี่ยมพร้อมแผ่นรอง | M8 | 8 | 07146970706 | $1.18 | Shop at ECS Tuning | ||||
| 11 | ปลั๊กซีล | 24X12 | 2 | 51211975404 | $1.26 | Shop at ECS Tuning | ||||
| 12 | ปลั๊ก | D=8MM | 2 | 51218235768 | $0.39 | Shop at ECS Tuning | ||||
| 13 | โบลท์หัวหกเหลี่ยม | M6X22-8.8-MK | 4 | 07119906263 | $0.36 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู?
- This technical diagram illustrates the บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู within the ตัวถังรถ group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the ประตู ด้านหน้าซ้าย (Part #41517034151).
- Which models use the hardware listed in this บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู?
- The hardware and components featured in the บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the ประตู ด้านหน้าซ้าย (41517034151) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู assembly?
- Each item in the บานพับประตู ด้านหน้า/ตัวกันกระแทกประตู corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the ประตู ด้านหน้าซ้าย by locating its position on the schematic, which then links to the official BMW part number 41517034151 for the ตัวถังรถ section.
