ซุ้มล้อ ด้านหน้า for BMW MINI R50 Cooper (2000)

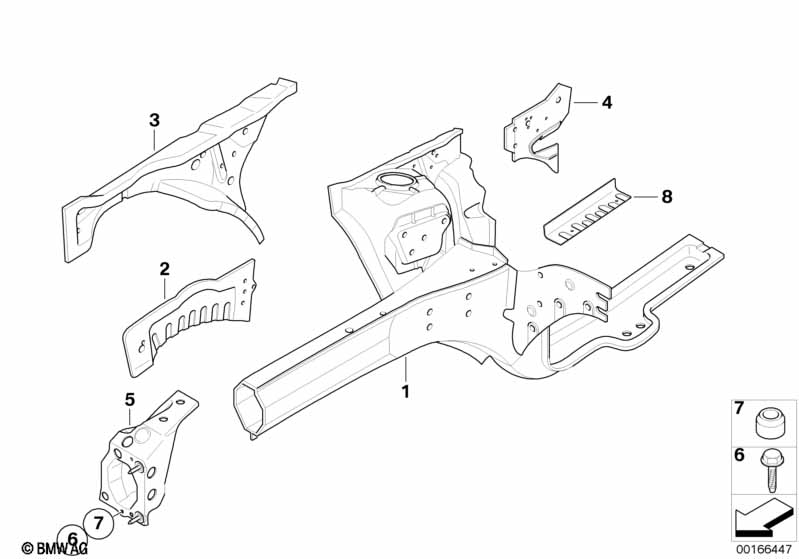

This ซุ้มล้อ ด้านหน้า technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ซุ้มล้อ ด้านหน้าซ้าย | BASIS | 1 | 41007138981 | $496.10 | Shop at ECS Tuning | ||||
| 01 | ซุ้มล้อ, ด้านหน้าขวา | BASIS | 1 | 41007138982 | $496.10 | Shop at ECS Tuning | ||||
| 02 | สตรัทรองรับ, ซุ้มล้อ, ภายใน ด้านซ้าย | 1 | 41137035269 | $36.21 | Shop at ECS Tuning | |||||
| 02 | สตรัทรองรับ, ซุ้มล้อ, ภายใน ด้านขวา | 1 | 41137035270 | $36.21 | Shop at ECS Tuning | |||||
| 03 | สตรัทที่ซุ้มล้อ ด้านหน้าซ้าย | 1 | 41137137955 | $36.21 | Shop at ECS Tuning | |||||
| 03 | สตรัทที่ซุ้มล้อ ด้านหน้าขวา | 1 | 41137137956 | $36.21 | Shop at ECS Tuning | |||||
| 04 | แผงปิด, ซุ้มล้อ, ด้านซ้าย | 1 | 41117049301 | $16.40 | ENDED | Shop at ECS Tuning | ||||
| 04 | แผงปิด, ซุ้มล้อ, ด้านขวา | 1 | 41117132754 | $22.00 | Shop at ECS Tuning | |||||
| 05 | แท่น, คานขวาง, ด้านซ้าย | 1 | 41117137953 | $25.52 | Shop at ECS Tuning | |||||
| 05 | แท่น, คานขวาง, ด้านขวา | 1 | 41117137954 | $25.52 | Shop at ECS Tuning | |||||
| 06 | สกรูยึด | M6 | 2 | 07149146435 | $1.16 | Shop at ECS Tuning | ||||
| 07 | ปลอกนำ | 2 | 51717036112 | $3.79 | Shop at ECS Tuning | |||||
| 08 | แผ่นเสริมความแข็งแรงแท่นเครื่องยนต์ | 2 | 41117070667 | $7.88 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper ซุ้มล้อ ด้านหน้า?
- This technical diagram illustrates the ซุ้มล้อ ด้านหน้า within the ตัวถังรถ group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the ซุ้มล้อ ด้านหน้าซ้าย (Part #41007138981).
- Which models use the hardware listed in this ซุ้มล้อ ด้านหน้า?
- The hardware and components featured in the ซุ้มล้อ ด้านหน้า are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the ซุ้มล้อ ด้านหน้าซ้าย (41007138981) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ซุ้มล้อ ด้านหน้า assembly?
- Each item in the ซุ้มล้อ ด้านหน้า corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the ซุ้มล้อ ด้านหน้าซ้าย by locating its position on the schematic, which then links to the official BMW part number 41007138981 for the ตัวถังรถ section.
