ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง for BMW 5 Series E60 530xi (2007)

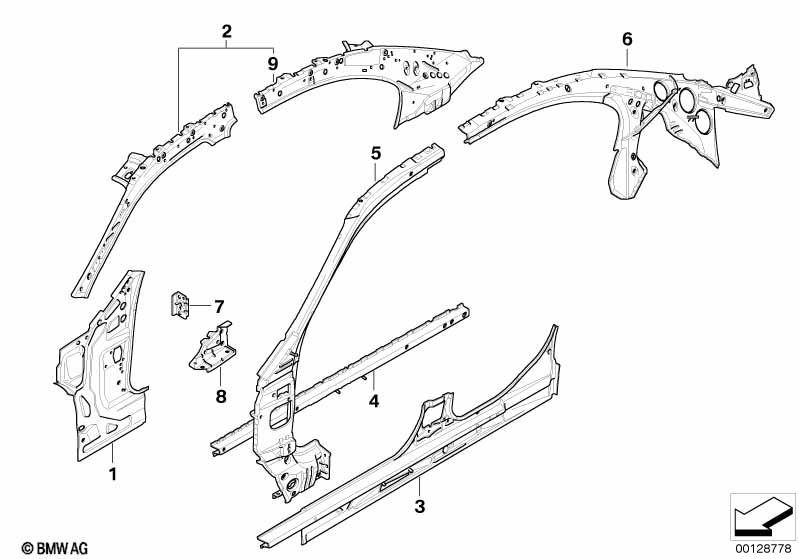

This ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | เสา A ภายในด้านซ้าย | 1 | 41217111281 | $110.58 | ENDED | Shop at ECS Tuning | ||||
| 01 | เสา A ภายในด้านขวา | 1 | 41217111282 | $110.58 | Shop at ECS Tuning | |||||
| 02 | โครงหลังคาภายในด้านซ้าย | 1 | 41127111299 | $161.42 | ENDED | Shop at ECS Tuning | ||||
| 02 | โครงหลังคาภายในด้านขวา | 1 | 41127111300 | $161.42 | Shop at ECS Tuning | |||||
| 03 | คานตามยาว ด้านซ้าย | 1 | 41127111293 | $178.57 | Shop at ECS Tuning | |||||
| 03 | คานตามยาว ด้านขวา | 1 | 41127111294 | $178.57 | Shop at ECS Tuning | |||||
| 04 | ส่วนบน, โครงตามยาว, ด้านซ้าย | 1 | 41147111295 | $108.79 | Shop at ECS Tuning | |||||
| 04 | ส่วนบน, โครงตามยาว, ด้านขวา | 1 | 41147111296 | $108.79 | Shop at ECS Tuning | |||||
| 05 | คอนเนคเตอร์, เสา A/โครงหลังคาด้านซ้าย | 1 | 41217125591 | $184.66 | ENDED | Shop at ECS Tuning | ||||
| 05 | คอนเนคเตอร์, เสา A/โครงหลังคาด้านขวา | 1 | 41217125592 | $184.66 | Shop at ECS Tuning | |||||
| 06 | เสา C ภายในด้านซ้าย | 1 | 41217111307 | $123.17 | Shop at ECS Tuning | |||||
| 06 | เสา C ภายในด้านขวา | 1 | 41217111308 | $123.17 | ENDED | Shop at ECS Tuning | ||||
| 07 | แท่นยึดท่อเสริมด้านซ้าย | 1 | 41137111813 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 07 | แท่นยึดท่อเสริมด้านขวา | 1 | 41137111814 | $4.63 | Shop at ECS Tuning | |||||
| 08 | แท่นยึดเสริมสำหรับท่อเสริมด้านซ้าย | 1 | 41137111817 | $9.23 | ENDED | Shop at ECS Tuning | ||||
| 08 | ท่นยึดเสริมสำหรับท่อเสริมด้านขวา | 1 | 41137111818 | $9.23 | Shop at ECS Tuning | |||||
| 09 | เสา C, ด้านบนซ้าย ด้านใน | 1 | 41327111301 | $73.86 | ENDED | Shop at ECS Tuning | ||||
| 09 | เสา C, ด้านบนขวา ด้านใน | 1 | 41327111302 | $73.86 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530xi ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง?
- This technical diagram illustrates the ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง within the ตัวถังรถ group for the 5 Series E60 530xi produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the เสา A ภายในด้านซ้าย (Part #41217111281).
- Which models use the hardware listed in this ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง?
- The hardware and components featured in the ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง are specific to the 5 Series E60 530xi produced during 2007. These technical specifications ensure that parts like the เสา A ภายในด้านซ้าย (41217111281) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง assembly?
- Each item in the ชิ้นส่วนแยก, ตัวถัง-โครงด้านข้าง corresponds to the numbered list below the illustration. For the 5 Series E60 530xi, you can identify the เสา A ภายในด้านซ้าย by locating its position on the schematic, which then links to the official BMW part number 41217111281 for the ตัวถังรถ section.
