แผงด้านข้าง/ขอบปิดท้าย for BMW 3 Series E92 323i (2009)

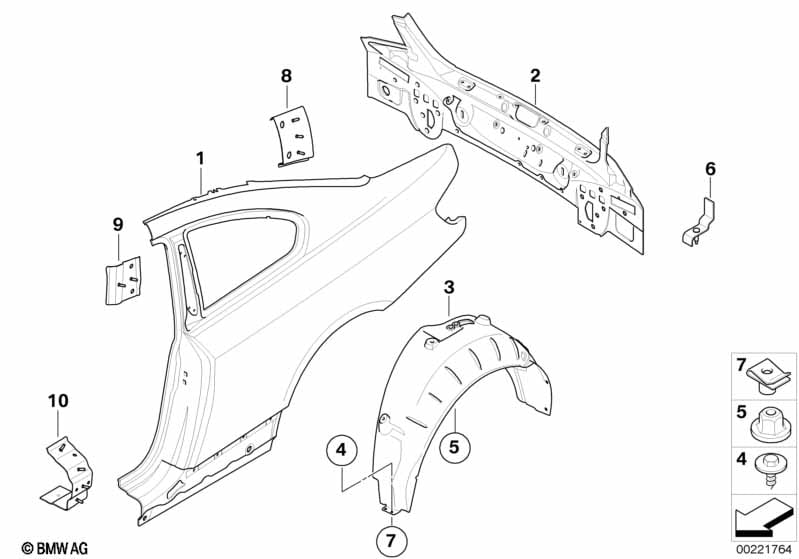

This แผงด้านข้าง/ขอบปิดท้าย technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ทำการซ่อมโดยใช้วิธี การติดกาว/หมุดย้ำ |
||||||||||
| 01 | แผงด้านข้าง ส่วนหลังซ้าย | 1 | 41007168967 | $538.92 | Shop at ECS Tuning | |||||
| จำเป็นสำหรับการซ่อม | ||||||||||
| -- | ไบลด์รีเว็ต N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | สกรู | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | กาวติดตัวถังรถ K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | รีเว็ตตอก N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | สารประสารซีล, D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | กาวติดตัวถังรถ K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | น็อตหัวหมวกพลาสติกพร้อมแหวนรอง | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | แผ่นเสริมความแข็งแรงแผงบันไดด้านซ้าย | 1 | 41217275561 | Shop at ECS Tuning | ||||||
| -- | แผ่นเสริมความแข็งแรงเสา B ด้านซ้าย | 1 | 41217275573 | Shop at ECS Tuning | ||||||
| -- | แผ่นเสริมความแข็งแรงเสา C ด้านซ้าย | 1 | 41217275580 | Shop at ECS Tuning | ||||||
| 01 | แผงด้านข้าง ส่วนหลังขวา | 1 | 41007168968 | $538.92 | Shop at ECS Tuning | |||||
| จำเป็นสำหรับการซ่อม | ||||||||||
| -- | ไบลด์รีเว็ต N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | สกรู | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | กาวติดตัวถังรถ K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | รีเว็ตตอก N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | สารประสารซีล, D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | กาวติดตัวถังรถ K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | น็อตหัวหมวกพลาสติกพร้อมแหวนรอง | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | แผ่นเสริมความแข็งแรงแผงบันไดด้านขวา | 1 | 41217275562 | Shop at ECS Tuning | ||||||
| -- | แผ่นเสริมความแข็งแรงเสา B ด้านขวา | 1 | 41217275574 | Shop at ECS Tuning | ||||||
| -- | แผ่นเสริมความแข็งแรงเสา C ด้านขวา | 1 | 41217275595 | Shop at ECS Tuning | ||||||
| 02 | แผงปิดท้าย | 1 | 41007168997 | $264.87 | Shop at ECS Tuning | |||||
| จำเป็นสำหรับการซ่อม | ||||||||||
| -- | ไบลด์รีเว็ต N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | สกรู | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | หมุดย้ำ | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | รีเว็ตตอก N4 | 10 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | สารประสารซีล, D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | กาวติดตัวถังรถ K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 03 | แผ่นปิดซุ้มล้อ ด้านหลังซ้าย | 1 | 51717154413 | $42.43 | Shop at ECS Tuning | |||||
| 03 | แผ่นปิดซุ้มล้อ ด้านหลังขวา | 1 | 51717154414 | $42.43 | Shop at ECS Tuning | |||||
| 04 | สกรูหัวหกเหลี่ยม | ST4,8X16MM | 11 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 05 | ตัวอย่างพลาสติก | 10 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 08 | แผ่นเสริมความแข็งแรงเสา C ด้านซ้าย | 1 | 41217275580 | Shop at ECS Tuning | ||||||
| 08 | แผ่นเสริมความแข็งแรงเสา C ด้านขวา | 1 | 41217275595 | Shop at ECS Tuning | ||||||
| 09 | แผ่นเสริมความแข็งแรงเสา B ด้านซ้าย | 1 | 41217275573 | Shop at ECS Tuning | ||||||
| 09 | แผ่นเสริมความแข็งแรงเสา B ด้านขวา | 1 | 41217275574 | Shop at ECS Tuning | ||||||
| 10 | แผ่นเสริมความแข็งแรงแผงบันไดด้านซ้าย | 1 | 41217275561 | Shop at ECS Tuning | ||||||
| 10 | แผ่นเสริมความแข็งแรงแผงบันไดด้านขวา | 1 | 41217275562 | Shop at ECS Tuning | ||||||
