แผ่นปิดโพรงกรอบด้านข้าง for BMW MINI Countryman F60 One

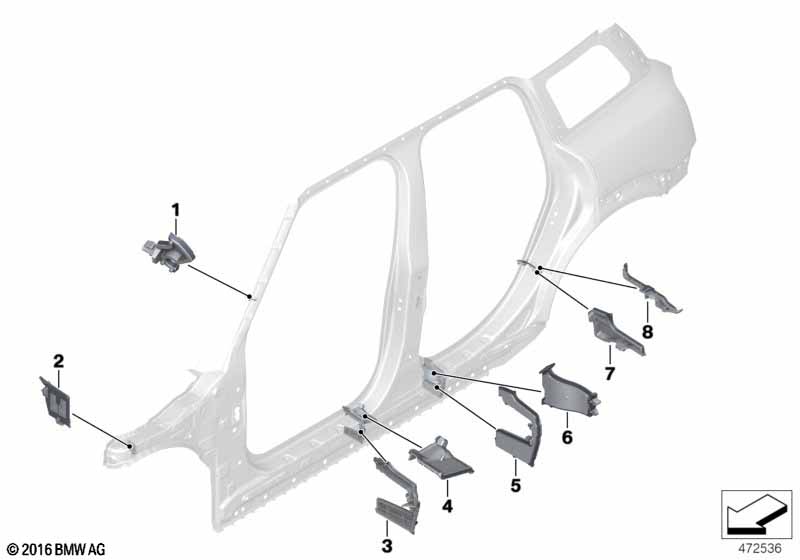

This แผ่นปิดโพรงกรอบด้านข้าง technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ชิ้นส่วนขึ้นรูปเสา A ด้านบนด้านนอก | 1 | 41007376513 | Shop at ECS Tuning | ||||||
| 02 | ชิ้นส่วนขึ้นรูปของสตรัทซุ้มล้อหน้า | 1 | 41007320735 | Shop at ECS Tuning | ||||||
| 03 | ชิ้นส่วนขึ้นรูปเสาB ด้านนอกด้านหน้าซ้าย | 1 | 41007409723 | Shop at ECS Tuning | ||||||
| 03 | ชิ้นส่วนขึ้นรูปเสา B ด้านนอกด้านหน้าขวา | 1 | 41007409724 | Shop at ECS Tuning | ||||||
| 04 | ส่วนขึ้นรูปเสา B ภายในด้านหน้าซ้าย | 1 | 41007410485 | Shop at ECS Tuning | ||||||
| 04 | ส่วนขึ้นรูปเสา B ภายในด้านหน้าขวา | 1 | 41007410486 | Shop at ECS Tuning | ||||||
| 05 | ชิ้นส่วนขึ้นรูป, เสา B, ด้านนอกล่างซ้าย | 1 | 41007411089 | Shop at ECS Tuning | ||||||
| 05 | ชิ้นส่วนขึ้นรูป, เสา B, ด้านนอกล่างขวา | 1 | 41007411090 | Shop at ECS Tuning | ||||||
| 06 | ชิ้นส่วนขึ้นรูป, เสา B, ด้านในล่างซ้าย | 1 | 41007411087 | Shop at ECS Tuning | ||||||
| 06 | ชิ้นส่วนขึ้นรูป, เสา B, ด้านในล่างขวา | 1 | 41007411088 | Shop at ECS Tuning | ||||||
| 07 | ชิ้นส่วนขึ้นรูปของเสา C, ภายใน,ซ้าย | 1 | 41007411091 | Shop at ECS Tuning | ||||||
| 07 | ชิ้นส่วนขึ้นรูปของเสา C, ภายใน,ขวา | 1 | 41007411092 | Shop at ECS Tuning | ||||||
| 08 | ชิ้นส่วนขึ้นรูป-เสา C,ภายนอก,ซ้าย | 1 | 41007411093 | Shop at ECS Tuning | ||||||
| 08 | ชิ้นส่วนขึ้นรูปของเสา C, ภายนอก,ขวา | 1 | 41007411094 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 One แผ่นปิดโพรงกรอบด้านข้าง?
- This technical diagram illustrates the แผ่นปิดโพรงกรอบด้านข้าง within the ตัวถังรถ group for the MINI Countryman F60 One. It provides a detailed exploded view of the components, identifying key parts such as the ชิ้นส่วนขึ้นรูปเสา A ด้านบนด้านนอก (Part #41007376513).
- Which models use the hardware listed in this แผ่นปิดโพรงกรอบด้านข้าง?
- The hardware and components featured in the แผ่นปิดโพรงกรอบด้านข้าง are specific to the MINI Countryman F60 One. These technical specifications ensure that parts like the ชิ้นส่วนขึ้นรูปเสา A ด้านบนด้านนอก (41007376513) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the แผ่นปิดโพรงกรอบด้านข้าง assembly?
- Each item in the แผ่นปิดโพรงกรอบด้านข้าง corresponds to the numbered list below the illustration. For the MINI Countryman F60 One, you can identify the ชิ้นส่วนขึ้นรูปเสา A ด้านบนด้านนอก by locating its position on the schematic, which then links to the official BMW part number 41007376513 for the ตัวถังรถ section.
