ชุดจับยึด, กันชนด้านหน้า for BMW 7 Series E32 730iL (1992)

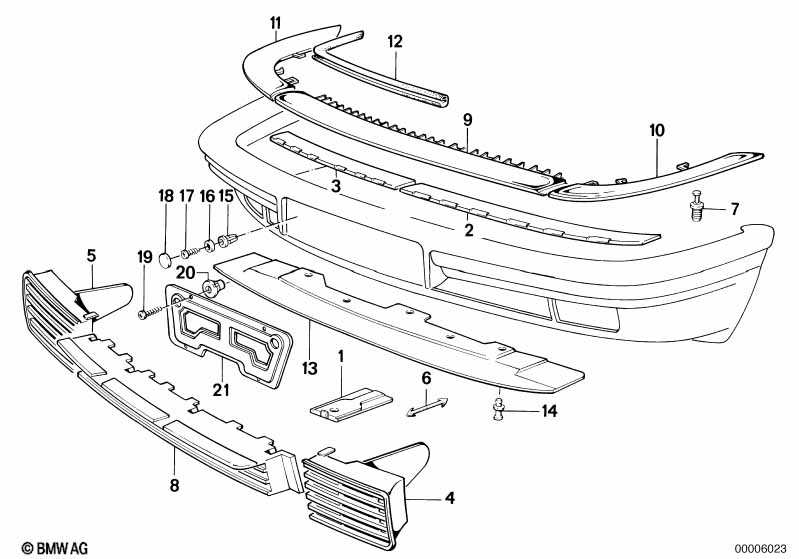

This ชุดจับยึด, กันชนด้านหน้า technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ตัวยึด | 4 | 51111928930 | $3.23 | Shop at ECS Tuning | |||||
| 02 | แหวนสเปเซอร์ ด้านซ้าย | 1 | 51118141561 | $19.84 | Shop at ECS Tuning | |||||
| 02 | แหวนสเปเซอร์ ด้านซ้าย | 1 | 51111969677 | ENDED | Shop at ECS Tuning | |||||
| 03 | แหวนสเปเซอร์ ด้านขวา | 1 | 51118141562 | $19.84 | Shop at ECS Tuning | |||||
| 03 | แหวนสเปเซอร์ ด้านขวา | 1 | 51111969678 | ENDED | Shop at ECS Tuning | |||||
| 04 | แผ่นเปิดปิด ด้านหน้าซ้าย | 1 | 09/1987 | 51111974441 | $21.86 | Shop at ECS Tuning | ||||
| 05 | แผ่นเปิดปิด ด้านหน้าขวา | 1 | 09/1987 | 51111974442 | $28.77 | Shop at ECS Tuning | ||||
| 06 | สายรัด | 4 | 51111973721 | $0.77 | Shop at ECS Tuning | |||||
| 07 | หมุดขยาย | D = 6MM | X | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 08 | ตะแกรง | 1 | 51111928276 | $70.88 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี ระบบปรับอากาศ |
=ใช่ |
|||||||||
| 08 | ตะแกรง | 1 | 51111908072 | $70.88 | Shop at ECS Tuning | |||||
| 09 | แผ่นปิด ตรงกลาง | 1 | 51111908066 | $105.19 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี ระบบล้างทำความสะอาดไฟหน้า |
=ใช่ |
|||||||||
| 09 | แผ่นปิด ตรงกลาง | 1 | 51111928134 | $117.05 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี เส้นตกแต่ง Shadow |
=ใช่ |
|||||||||
| 09 | แผ่นปิด ตรงกลาง | 1 | 51118111573 | $117.05 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี ระบบล้างทำความสะอาดไฟหน้า และ เส้นตกแต่ง Shadow |
=ใช่ =ใช่ |
|||||||||
| 09 | แผ่นปิด ตรงกลาง | 1 | 51118111574 | $117.05 | Shop at ECS Tuning | |||||
| 10 | แผ่นปิด ด้านซ้าย | 1 | 51111908067 | $37.97 | ENDED | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี เส้นตกแต่ง Shadow |
=ใช่ |
|||||||||
| 10 | แผ่นปิด ด้านซ้าย | 1 | 51118111571 | $37.97 | ENDED | Shop at ECS Tuning | ||||
| 11 | แผ่นปิด ด้านขวา | 1 | 51111908068 | $37.97 | ENDED | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี เส้นตกแต่ง Shadow |
=ใช่ |
|||||||||
| 11 | แผ่นปิด ด้านขวา | 1 | 51118111572 | $37.97 | Shop at ECS Tuning | |||||
| 12 | ปะเก็น | 670MM | 2 | 51111958067 | $10.52 | ENDED | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี ระบบปรับอากาศ |
=ใช่ |
|||||||||
| 13 | ซีล ด้านล่าง | 1 | 51711938181 | $11.00 | Shop at ECS Tuning | |||||
| 14 | หมุดขยาย | D=7,5MM | 7 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 15 | น็อตแบบเสียบ | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 16 | แหวนรอง | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 17 | สกรูเกลียวปล่อยหัวทรงกระบอก | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 17 | สกรูเกลียวปล่อยหัวทรงกระบอก | ST4,8X20 | 2 | 51181835719 | $0.33 | Shop at ECS Tuning | ||||
| 18 | ฝาปิด | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 18 | ฝาปิด | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 18 | ฝาปิด | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 19 | สกรูเกลียวปล่อยหัวทรงกระบอก | ST4,8X13-Z2 | 4 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 20 | น็อตตัวถัง | 4 | 51111945028 | $0.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
