ฝาปิด/ปลั๊ก for BMW 5 Series E12 520 (1976)

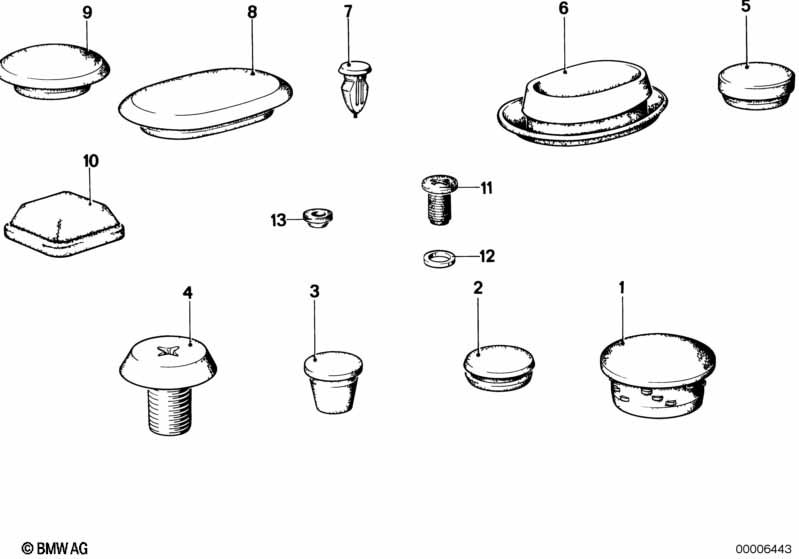

This ฝาปิด/ปลั๊ก technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ปลั๊กซีล | D=20MM | X | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 02 | ปลั๊กซีล | D=11MM | 3 | 41516442164 | $0.30 | Shop at ECS Tuning | ||||
| 03 | ปลั๊กซีล | D=9MM | 2 | 41125676193 | $1.17 | Shop at ECS Tuning | ||||
| 04 | ปลั๊กสกรู | 7/16"X14 | 2 | 51711822930 | ENDED | Shop at ECS Tuning | ||||
| 05 | ปลั๊กซีล | D=13MM | 1 | 61138560584 | $4.34 | Shop at ECS Tuning | ||||
| 06 | ปลั๊กซีล | D=8,5MM | 1 | 41355780223 | ENDED | Shop at ECS Tuning | ||||
| 07 | ปลั๊กซีล | D=3,7MM | 4 | 51711850078 | $0.21 | Shop at ECS Tuning | ||||
| 08 | ปลั๊กซีล | 5,5X15 | 4 | 51221875179 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 08 | ปลั๊กซีล | 20X50 | X | 51711852763 | $1.19 | Shop at ECS Tuning | ||||
| 08 | ปลั๊กซีล | 14X25.5MM | X | 51711863869 | $0.94 | Shop at ECS Tuning | ||||
| 09 | ปลั๊กซีล | D=18,5MM | X | 51211838473 | $1.34 | Shop at ECS Tuning | ||||
| 11 | ปลั๊กสกรู | 7/16" | 4 | 51711822900 | $0.46 | Shop at ECS Tuning | ||||
| 12 | แหวนรอง | D=11,5MM | 4 | 52201816037 | $0.33 | ENDED | Shop at ECS Tuning | |||
| 13 | ปลั๊กซีล | D=14MM | 2 | 51715690082 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 ฝาปิด/ปลั๊ก?
- This technical diagram illustrates the ฝาปิด/ปลั๊ก within the อุปกรณ์ตัวถังรถ group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the ปลั๊กซีล (Part #51711801066).
- Which models use the hardware listed in this ฝาปิด/ปลั๊ก?
- The hardware and components featured in the ฝาปิด/ปลั๊ก are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the ปลั๊กซีล (51711801066) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ฝาปิด/ปลั๊ก assembly?
- Each item in the ฝาปิด/ปลั๊ก corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the ปลั๊กซีล by locating its position on the schematic, which then links to the official BMW part number 51711801066 for the อุปกรณ์ตัวถังรถ section.
