ช่องเก็บของ for BMW 3 Series E36 328i (1994)

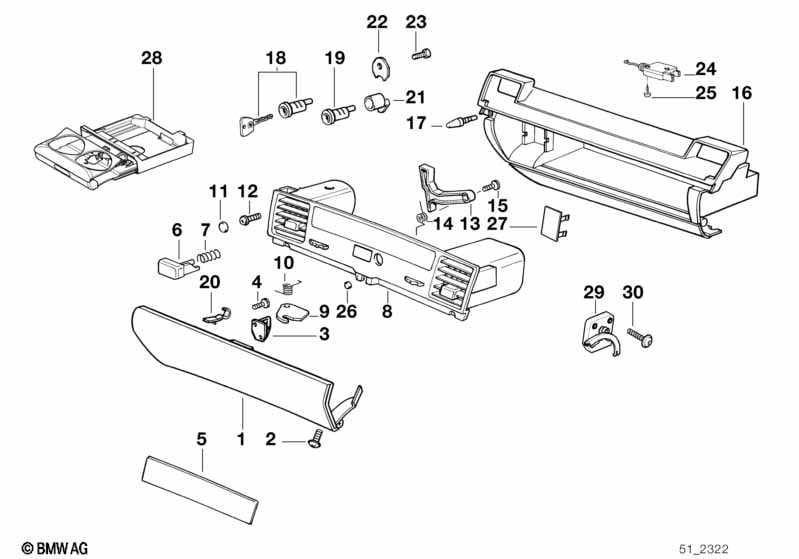

This ช่องเก็บของ technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | แผ่นปิดลิ้นชักเก็บของส่วนล่าง | SCHWARZ | 1 | 01/1996 | 51168167282 | $179.96 | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี อุปกรณ์หนังทั้งหมด, หนัง Walknappa |
=ใช่ |
|||||||||
| 01 | แผ่นปิดลิ้นชักเก็บของส่วนล่าง | 0462 LOTOSWEISS | 1 | 51162255848 | $386.98 | ENDED | Shop at ECS Tuning | |||
| 02 | สกรูยึดแผ่นโลหะ | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 03 | สลักล็อค | 1 | 51168177889 | $4.32 | Shop at ECS Tuning | |||||
| 04 | สกรู | 3X10 | 2 | 51161977387 | $0.27 | Shop at ECS Tuning | ||||
| 05 | แถบปิด ทำด้วยไม้ | PLATANE | 1 | 51162261197 | $139.90 | ENDED | Shop at ECS Tuning | |||
| 05 | แถบปิด ทำด้วยไม้ | BEIGE 0110 | 1 | 51162261198 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | แถบปิด ทำด้วยไม้ | GRAU 0120 | 1 | 51162261199 | $139.90 | Shop at ECS Tuning | ||||
| 05 | แถบปิด ทำด้วยไม้ | GRAPHIT 0130 | 1 | 51162261200 | $139.90 | ENDED | Shop at ECS Tuning | |||
| 05 | แถบปิดทำด้วยไม้เบิร์ชวูด | ANTHRAZIT 0690 | 1 | 51162423550 | $139.90 | ENDED | Shop at ECS Tuning | |||
| 05 | แถบปิด ทำด้วยไม้ | BRUYERE | 1 | 51162493303 | $139.90 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | แผ่นปิด | SCHWARZ | 1 | 51168170665 | $71.66 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | แผ่นปิด | GRAU | 1 | 51168170666 | $71.66 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | แผ่นปิด | BEIGE | 1 | 51168170667 | $71.66 | ENDED, +core | Shop at ECS Tuning | |||
| รุ่นเฉพาะ, Classic ปี 96 | ||||||||||
| 05 | แถบปิด ทำด้วยไม้ | BRUYERE | 1 | 51162493303 | $139.90 | ENDED, +core | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี อุปกรณ์ไม้ SA438 |
=ใช่ |
|||||||||
| 05 | แถบปิด ทำด้วยไม้ | NUSSBAUM-WUR.91 | 1 | 51168186140 | $103.87 | ENDED | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี คิ้วตกแต่งลายไม้แบบหรู |
S738A=ใช่ |
|||||||||
| 05 | แถบปิด ทำด้วยไม้ | EIBE CLUB | 1 | 51162261229 | $139.90 | ENDED | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี ขอบปิดที่ทำจากไม้ SA773 |
=ใช่ |
|||||||||
| 05 | แถบปิด ทำด้วยไม้ | NUSSBAUM-WUR.93 | 1 | 06/1994 | 51162260999 | $139.90 | ENDED | Shop at ECS Tuning | ||
| 06 | ปุ่มกด | SCHWARZ | 1 | 51168170671 | $2.53 | Shop at ECS Tuning | ||||
| 06 | ปุ่มกด | GRAU | 1 | 51168170672 | $2.53 | Shop at ECS Tuning | ||||
| 06 | ปุ่มกด | BEIGE | 1 | 51168170673 | $2.53 | Shop at ECS Tuning | ||||
| 07 | สปริงอัด | 1 | 51168168865 | $0.48 | Shop at ECS Tuning | |||||
| 08 | แผ่นปิดตะแกรงและตัวล็อค | SCHWARZ | 1 | 64228391649 | $75.27 | ENDED | Shop at ECS Tuning | |||
| 08 | แผ่นปิดตะแกรงและตัวล็อค | GRAU | 1 | 64228391650 | $75.27 | Shop at ECS Tuning | ||||
| 08 | แผ่นปิดตะแกรงและตัวล็อค | BEIGE | 1 | 64228391651 | $75.27 | Shop at ECS Tuning | ||||
| 09 | แผงฐานสลักล็อค | 1 | 51168122492 | $5.95 | Shop at ECS Tuning | |||||
| 10 | สปริงประกบวาล์ว | 1 | 51168122467 | $0.60 | Shop at ECS Tuning | |||||
| 11 | ฝาปิด | SCHWARZ | 2 | 51161960458 | $0.32 | Shop at ECS Tuning | ||||
| 11 | ฝาปิด | DUNKELGRAU | 2 | 51168191241 | $0.32 | Shop at ECS Tuning | ||||
| 11 | ฝาปิด | DUNKELBEIGE | 2 | 51168191242 | $0.32 | Shop at ECS Tuning | ||||
| 12 | สกรูยึดแผ่นโลหะ | ST4,2X19 | 2 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 13 | คันจับ | 1 | 51168168863 | $0.90 | ENDED | Shop at ECS Tuning | ||||
| 14 | สปริงประกบวาล์ว | 1 | 51168122468 | $1.43 | ENDED | Shop at ECS Tuning | ||||
| 15 | สกรู | 4X14 | 1 | 07149115641 | $0.27 | Shop at ECS Tuning | ||||
| 16 | ตัวเรือนลิ้นชักเก็บของ | SCHWARZ | 1 | 51168171270 | $73.28 | Shop at ECS Tuning | ||||
| 16 | ตัวเรือนลิ้นชักเก็บของ | GRAU | 1 | 51168171271 | $73.28 | Shop at ECS Tuning | ||||
| 16 | ตัวเรือนลิ้นชักเก็บของ | BEIGE | 1 | 51168171272 | $73.28 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี อุปกรณ์ที่ทำจากหนังทั้งหมด |
=ใช่ |
|||||||||
| 16 | ตัวเรือนลิ้นชักเก็บของ | 0462 LOTOSWEISS | 1 | 51162255854 | $95.14 | ENDED | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี อุปกรณ์ที่ทำจากหนังทั้งหมด ใช้ได้กับรหัสที่รองนั่งเท่านั้น : L7SW/0318/0638/0639 |
=ใช่ |
|||||||||
| 16 | ตัวเรือนลิ้นชักเก็บของ | SCHWARZ | 1 | 51162252070 | $105.57 | Shop at ECS Tuning | ||||
| 17 | ยางกันกระแทก | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 18 | ชุดซ่อมสำหรับแกนตัวล็อค | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 19 | ชุดซ่อมสำหรับแกนตัวล็อค | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 20 | สปริงยึด | 1 | 51161977382 | $5.43 | Shop at ECS Tuning | |||||
| 21 | ลูกเบี้ยวเลือกเกียร์ | 1 | 51168153020 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 22 | ตัวยึดลูกเบี้ยวเปลี่ยนเกียร์ | 1 | 51168171298 | $0.68 | Shop at ECS Tuning | |||||
| 23 | สกรู | 4X14 | 1 | 07149115641 | $0.27 | Shop at ECS Tuning | ||||
| 24 | แอ๊คทูเอเตอร์ | 1 | 67118360169 | Shop at ECS Tuning | ||||||
| 25 | โบลท์ทอกซ์สำหรับวัสดุพลาสติก | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 26 | กันชน | 1 | 51318236877 | $0.58 | Shop at ECS Tuning | |||||
| 27 | แผ่นปิด | 1 | 51168169805 | $0.29 | Shop at ECS Tuning | |||||
| 28 | ที่ยึดเครื่องดื่ม | 1 | 51168184470 | $27.50 | ENDED | Shop at ECS Tuning | ||||
| 29 | แดมเปอร์ | 1 | 51168203279 | $24.50 | ENDED | Shop at ECS Tuning | ||||
| 30 | สกรูหัวทรงกระบอก | E4X8 | 2 | 51458102577 | $0.33 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (ไม่มีการเก็บชิ้นส่วนที่อยู่ตรงกลาง)
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i ช่องเก็บของ?
- This technical diagram illustrates the ช่องเก็บของ within the อุปกรณ์ตัวถังรถ group for the 3 Series E36 328i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the แผ่นปิดลิ้นชักเก็บของส่วนล่าง (Part #51168167282).
- Which models use the hardware listed in this ช่องเก็บของ?
- The hardware and components featured in the ช่องเก็บของ are specific to the 3 Series E36 328i produced during 1994. These technical specifications ensure that parts like the แผ่นปิดลิ้นชักเก็บของส่วนล่าง (51168167282) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ช่องเก็บของ assembly?
- Each item in the ช่องเก็บของ corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the แผ่นปิดลิ้นชักเก็บของส่วนล่าง by locating its position on the schematic, which then links to the official BMW part number 51168167282 for the อุปกรณ์ตัวถังรถ section.
