แผ่นปิด, ด้านหลัง for BMW 6 Series F06 Gran Coupé LCI 650i (2018)

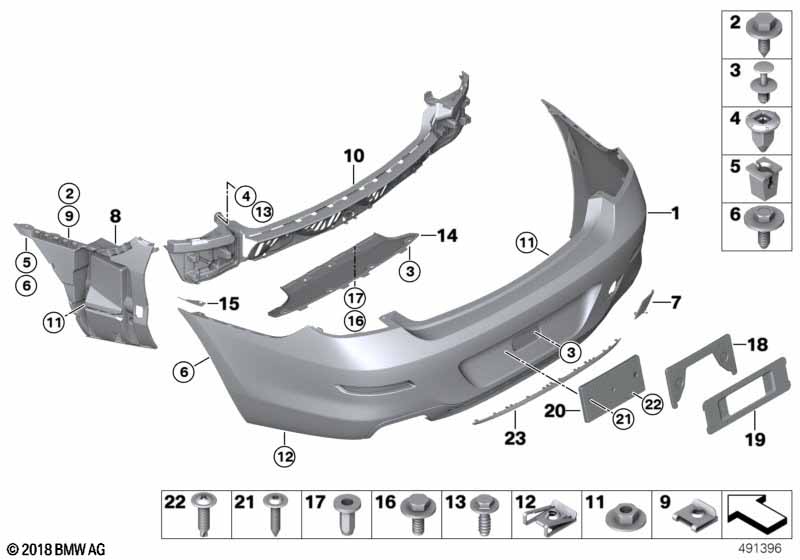

This แผ่นปิด, ด้านหลัง technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี ระบบควบคุมระยะการจอด (PDC) และ ชุดแอโรไดนามิกแบบ เอ็มเทคนิค |
S508A=ไม่ S715A=ไม่ |
|||||||||
| 01 | ขอบปิดกันชนลงสีพื้นด้านหลัง | 1 | 51127395515 | Shop at ECS Tuning | ||||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ชุดจับยึด, กันชน, ด้านหลัง | VALUE PARTS | 1 | 51122452064 | Shop at ECS Tuning | |||||
| -- | ฟอยล์หุ้ม ด้านซ้าย | 1 | 51127268381 | Shop at ECS Tuning | ||||||
| -- | ฟอยล์หุ้ม ด้านขวา | 1 | 51127268382 | Shop at ECS Tuning | ||||||
| สำหรับรถยนต์ที่มี ระบบควบคุมระยะการจอด (PDC) และ ชุดแอโรไดนามิกแบบ เอ็มเทคนิค |
S508A=ใช่ S715A=ไม่ |
|||||||||
| 01 | ขอบปิดกันชนลงสีพื้นด้านหลัง | PDC | 1 | 51127395516 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ชุดจับยึด, กันชน, ด้านหลัง | VALUE PARTS | 1 | 51122452064 | Shop at ECS Tuning | |||||
| -- | ฟอยล์หุ้ม ด้านซ้าย | 1 | 51127268381 | Shop at ECS Tuning | ||||||
| -- | ฟอยล์หุ้ม ด้านขวา | 1 | 51127268382 | Shop at ECS Tuning | ||||||
| 02 | สกรูหัวหกเหลี่ยม | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 03 | หมุดขยาย | D = 8MM | 6 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 04 | น็อตแบบถ่างตัวออก | 2 | 51127046911 | $0.48 | Shop at ECS Tuning | |||||
| 05 | น็อตแบบถ่างตัวออก | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 06 | สกรูหกเหลี่ยมสำหรับพลาสติก | 2 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 07 | แผ่นปิด,หูลาก,ด้านหลัง, ลงสีพื้น | 1 | 51127261580 | Shop at ECS Tuning | ||||||
| 08 | แท่นยึด, ด้านหลังซ้าย | 1 | 51127223165 | Shop at ECS Tuning | ||||||
| 08 | แท่นยึด, ด้านหลังขวา | 1 | 51127223166 | Shop at ECS Tuning | ||||||
| 09 | น็อตตัวถัง | ST4,8-13-ZNS3 | 6 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 10 | นำร่อง, ด้านหลังตรงกลาง | 1 | 51127223161 | Shop at ECS Tuning | ||||||
| 11 | น็อตหกเหลี่ยมพร้อมแผ่นรอง | M6 | 9 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
| 12 | คลิปยึด C, แบบล็อคตัวเอง | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี รุ่นประเทศญี่ปุ่น |
L807A=ใช่ |
|||||||||
| 13 | สกรู | SECHSKANT | 2 | 07143428231 | $0.36 | Shop at ECS Tuning | ||||
| 14 | ตัวนำ, ส่วนล่างตรงกลาง | 1 | 51127223162 | Shop at ECS Tuning | ||||||
| 15 | ฟอยล์หุ้ม ด้านซ้าย | 1 | 51127268381 | Shop at ECS Tuning | ||||||
| 15 | ฟอยล์หุ้ม ด้านขวา | 1 | 51127268382 | Shop at ECS Tuning | ||||||
| 16 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M6X16-U2-ZNS3 | 3 | 07119902913 | Shop at ECS Tuning | |||||
| 17 | ไบลด์รีเว็ต, หัวแบน | M6 | 3 | 07149174618 | Shop at ECS Tuning | |||||
| 20 | ตัวยึด, ที่ยึดด้านหลังป้ายทะเบียน | US | 1 | 51127293748 | Shop at ECS Tuning | |||||
| 21 | โบลท์ทอกซ์สำหรับวัสดุพลาสติก | ISA L=22MM | 2 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 22 | สกรูหัวทรงกระบอก | TS5X20 | X | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
| 23 | แถบปิดโครเมี่ยม | 1 | 51127374814 | Shop at ECS Tuning | ||||||
| สำหรับรถยนต์ที่มี Design pure experience |
P7RXA=ใช่ |
|||||||||
| 23 | คิ้วตกแต่ง, สีดำ | 1 | 51127415960 | Shop at ECS Tuning | ||||||
