กันชนหลัง USA for BMW 1502-2002tii 2002 (1970)

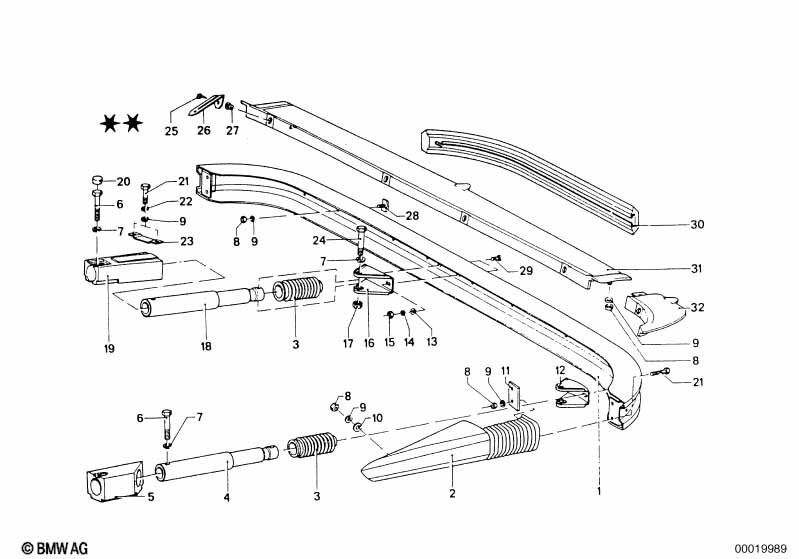

This กันชนหลัง USA technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | กันชน กลาง | 1 | 51121825863 | $759.89 | ENDED | Shop at ECS Tuning | ||||
| 02 | กันชน ด้านหลัง | 1 | 51121826921 | $105.61 | Shop at ECS Tuning | |||||
| 02 | กันชนหลัง ส่วนขวา | 1 | 51121826922 | ENDED | Shop at ECS Tuning | |||||
| 03 | ยางพับยืด | 3 | 51121830772 | ENDED | Shop at ECS Tuning | |||||
| 04 | โช้คอัพ ด้านหลัง | 2 | 51121826691 | ENDED | Shop at ECS Tuning | |||||
| 05 | ตัวสอดนำ | 1 | 51121820593 | ENDED | Shop at ECS Tuning | |||||
| 05 | ตัวสอดนำ | 1 | 51121820594 | ENDED | Shop at ECS Tuning | |||||
| 06 | โบลท์หัวหกเหลี่ยม | M14X85 | 3 | 07119912872 | ENDED | Shop at ECS Tuning | ||||
| 07 | แหวนรองสปริง | B14 | 3 | 07119933148 | $0.20 | Shop at ECS Tuning | ||||
| 08 | น็อตหกเหลี่ยมแบบล็อคด้วยตนเอง | M6 | 22 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 09 | แหวนรอง | A6,4-ZNNIV SI | 24 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | แผงยึด | 2 | 51111880449 | $4.07 | Shop at ECS Tuning | |||||
| 12 | ส่วนรองรับโช้คอัพ ด้านหลัง | 2 | 51121830646 | ENDED | Shop at ECS Tuning | |||||
| 13 | แหวนรอง | 8,4X24X2-ZNS3 | 6 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 14 | แหวนรองสปริง | B8 | 6 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 15 | น็อตหกเหลี่ยมพร้อมแผ่นรอง | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 16 | ส่วนรองรับโช้คอัพ ด้านหลัง | 1 | 51121830649 | $9.91 | Shop at ECS Tuning | |||||
| 17 | น็อตหกเหลี่ยมแบบล็อคด้วยตนเอง | M14 | 2 | 07129922739 | $2.13 | Shop at ECS Tuning | ||||
| 18 | ตัวดูดซับแรงกระแทกสำหรับกันชน | 1 | 51121826690 | $142.85 | ENDED | Shop at ECS Tuning | ||||
| 19 | ตัวสอดนำ | 1 | 51121830680 | ENDED | Shop at ECS Tuning | |||||
| 20 | ฝาปิด | 1 | 51121830629 | ENDED | Shop at ECS Tuning | |||||
| 21 | โบลท์หัวหกเหลี่ยม | M6X25 | 3 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 22 | แหวนรองสปริง | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 23 | โครงรอบ | 1 | 51111830500 | ENDED | Shop at ECS Tuning | |||||
| 24 | โบลท์หัวหกเหลี่ยม | M14X75 | 2 | 07119912870 | $5.38 | ENDED | Shop at ECS Tuning | |||
| 25 | ชุดสกรูหัวกลมยาว,ยึดโลหะ เบอร์ 20 | ST4,2X13 | 4 | 07509064383 | ENDED | Shop at ECS Tuning | ||||
| 26 | ส่วนรองรับ | 2 | 51121832808 | ENDED | Shop at ECS Tuning | |||||
| 27 | น็อตแบบถ่างตัวออก | 3,9 | 4 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 28 | คลิป | 6 | 51111838076 | $1.98 | Shop at ECS Tuning | |||||
| 29 | สกรูหัวกลมแบน | M8X25 | 6 | 07119910457 | $0.62 | ENDED | Shop at ECS Tuning | |||
| 30 | คิ้วยาง ด้านหลัง | 1 | 51121829897 | ENDED | Shop at ECS Tuning | |||||
| 31 | แผ่นปิด | 1 | 51121831019 | ENDED | Shop at ECS Tuning | |||||
| 32 | แผ่นปิด | 1 | 51121831011 | ENDED | Shop at ECS Tuning | |||||
| 32 | แผ่นปิด | 1 | 51121831012 | $52.65 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 กันชนหลัง USA?
- This technical diagram illustrates the กันชนหลัง USA within the อุปกรณ์ตัวถังรถ group for the 1502-2002tii 2002 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the กันชน กลาง (Part #51121825863).
- Which models use the hardware listed in this กันชนหลัง USA?
- The hardware and components featured in the กันชนหลัง USA are specific to the 1502-2002tii 2002 produced during 1970. These technical specifications ensure that parts like the กันชน กลาง (51121825863) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the กันชนหลัง USA assembly?
- Each item in the กันชนหลัง USA corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the กันชน กลาง by locating its position on the schematic, which then links to the official BMW part number 51121825863 for the อุปกรณ์ตัวถังรถ section.
