กระจกประตูแบบยึดตายตัว for BMW 2.5CS-3.0CSL 3.0CSiL (1975)

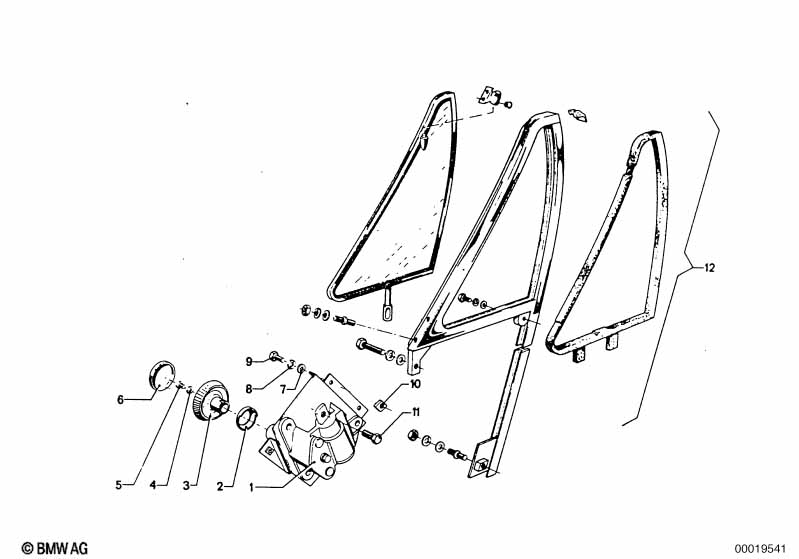

This กระจกประตูแบบยึดตายตัว technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSiL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | กลไกช่องลม | 1 | 51321815615 | ENDED | Shop at ECS Tuning | |||||
| 01 | กลไกช่องลม | 1 | 51321815616 | ENDED | Shop at ECS Tuning | |||||
| 02 | Rosette | 2 | 51326754364 | ENDED | Shop at ECS Tuning | |||||
| 03 | คันสั่งงาน | 2 | 51321801246 | ENDED | Shop at ECS Tuning | |||||
| 04 | แหวนรองสปริง | B4 | 2 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 05 | สกรูหัวทรงกระบอก | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 06 | ฝาปิด | 2 | 51326754357 | ENDED | Shop at ECS Tuning | |||||
| 07 | แหวนรอง | A6,4-200HV-ZNS3 | 8 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | แหวนรองสปริง | B6 | 8 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 09 | โบลท์หัวหกเหลี่ยม | M6X16-8.8-ZNS3 | 8 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | น็อตสี่เหลี่ยม | M6 | 2 | 07119921220 | ENDED | Shop at ECS Tuning | ||||
| 11 | โบลท์หัวหกเหลี่ยม | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 12 | หน้าต่างช่องลมแบบใส,ซ้าย | 1 | 51321812553 | ENDED | Shop at ECS Tuning | |||||
| 12 | หน้าต่างช่องลมแบบใส,ขวา | 1 | 51321812554 | ENDED | Shop at ECS Tuning | |||||
| 12 | หน้าต่างช่องลมด้านซ้าย สีเขียว | 1 | 51321812571 | ENDED | Shop at ECS Tuning | |||||
| 12 | หน้าต่างช่องลมด้านขวา สีเขียว | 1 | 51321812572 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSiL กระจกประตูแบบยึดตายตัว?
- This technical diagram illustrates the กระจกประตูแบบยึดตายตัว within the อุปกรณ์ตัวถังรถ group for the 2.5CS-3.0CSL 3.0CSiL produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the กลไกช่องลม (Part #51321815615).
- Which models use the hardware listed in this กระจกประตูแบบยึดตายตัว?
- The hardware and components featured in the กระจกประตูแบบยึดตายตัว are specific to the 2.5CS-3.0CSL 3.0CSiL produced during 1975. These technical specifications ensure that parts like the กลไกช่องลม (51321815615) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the กระจกประตูแบบยึดตายตัว assembly?
- Each item in the กระจกประตูแบบยึดตายตัว corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSiL, you can identify the กลไกช่องลม by locating its position on the schematic, which then links to the official BMW part number 51321815615 for the อุปกรณ์ตัวถังรถ section.
