ตัวยกกระจกประตู ด้านหลัง for BMW MINI Cabrio R52 Cooper (2002)

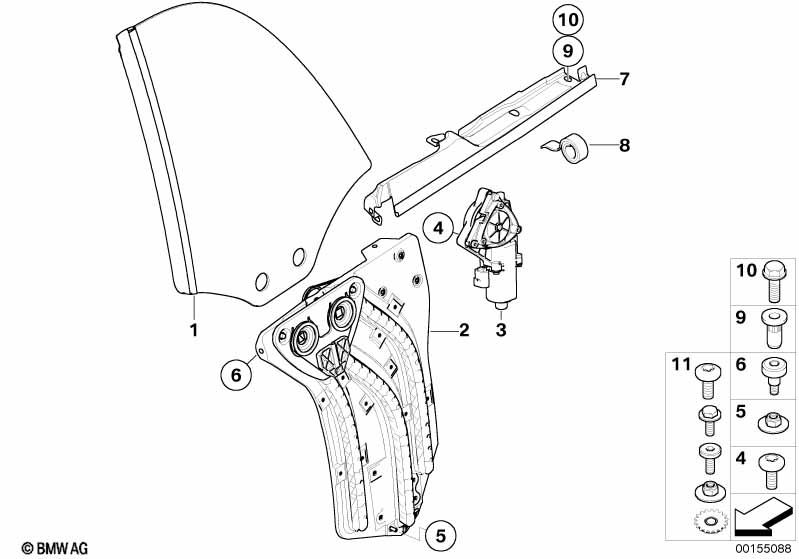

This ตัวยกกระจกประตู ด้านหลัง technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | กระจกประตูด้านหลังซ้าย | 1 | 51377111021 | $179.60 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| 01 | กระจกประตูด้านหลังขวา | 1 | 51377111022 | $179.60 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ชุดอะไหล่จับยึด | 1 | 51377201455 | $13.50 | Shop at ECS Tuning | |||||
| 02 | ตัวยกกระจกไฟฟ้า ด้านหลังซ้าย | 1 | 51377111017 | $217.64 | Shop at ECS Tuning | |||||
| 02 | ตัวยกกระจกไฟฟ้า ด้านหลังขวา | 1 | 51377111018 | $217.64 | Shop at ECS Tuning | |||||
| 03 | มอเตอร์ตัวยกกระจก ด้านหลังซ้าย | 1 | 67626934299 | $110.29 | Shop at ECS Tuning | |||||
| 03 | มอเตอร์ตัวยกกระจก ด้านหลังขวา | 1 | 67626934300 | $110.29 | Shop at ECS Tuning | |||||
| 04 | สกรูหัวกลมแบน | 3 | 51333414002 | $0.52 | Shop at ECS Tuning | |||||
| 05 | น็อตหกเหลี่ยมพร้อมแผ่นรอง | M6 | 2 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
| 06 | โบลท์ Torx พร้อมแหวนรอง | ISA M6X17 | 4 | 07146986927 | $0.47 | Shop at ECS Tuning | ||||
| 07 | ตัวต่อมุม, ด้านซ้าย | 1 | 51377111019 | $18.71 | Shop at ECS Tuning | |||||
| 07 | ตัวต่อมุม, ด้านขวา | 1 | 51377111020 | $18.71 | Shop at ECS Tuning | |||||
| 08 | ส่วนยึดติดที่เป็นโฟม | 350MM X 15MM | 2 | 51377159181 | $35.34 | Shop at ECS Tuning | ||||
| 09 | น็อตไบลด์รีเว็ต, หัวแบน | M6 | 2 | 07146986939 | $1.51 | Shop at ECS Tuning | ||||
| 10 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 11 | ชุดอะไหล่จับยึด | 2 | 51377201455 | $13.50 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio R52 Cooper ตัวยกกระจกประตู ด้านหลัง?
- This technical diagram illustrates the ตัวยกกระจกประตู ด้านหลัง within the อุปกรณ์ตัวถังรถ group for the MINI Cabrio R52 Cooper produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the กระจกประตูด้านหลังซ้าย (Part #51377111021).
- Which models use the hardware listed in this ตัวยกกระจกประตู ด้านหลัง?
- The hardware and components featured in the ตัวยกกระจกประตู ด้านหลัง are specific to the MINI Cabrio R52 Cooper produced during 2002. These technical specifications ensure that parts like the กระจกประตูด้านหลังซ้าย (51377111021) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ตัวยกกระจกประตู ด้านหลัง assembly?
- Each item in the ตัวยกกระจกประตู ด้านหลัง corresponds to the numbered list below the illustration. For the MINI Cabrio R52 Cooper, you can identify the กระจกประตูด้านหลังซ้าย by locating its position on the schematic, which then links to the official BMW part number 51377111021 for the อุปกรณ์ตัวถังรถ section.
