แผ่นปิดชุดแต่ง, ด้านหลัง for BMW MINI F66 JCW

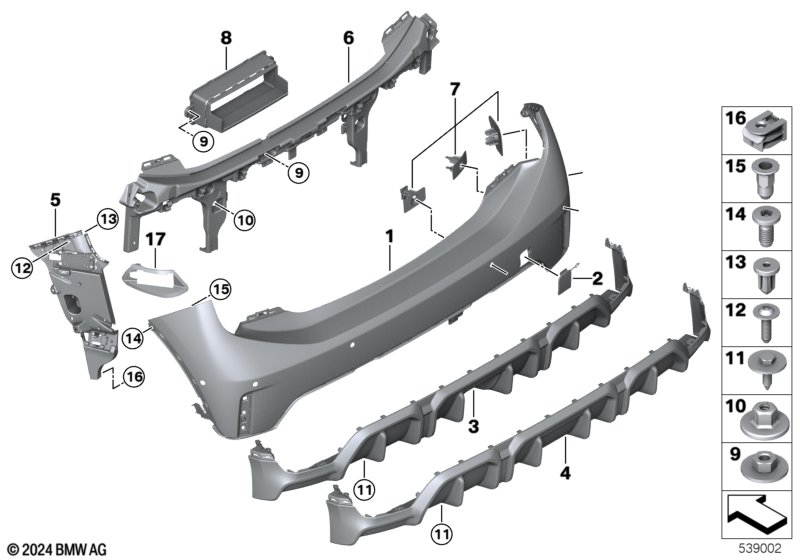

This แผ่นปิดชุดแต่ง, ด้านหลัง technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | สำหรับรถยนต์ที่มี รายการเพิ่มเติมเฉพาะ JCW trim |
S9T9A=ใช่ |
||||||||
| 01 | แผงปิดกันชนด้านหลังบนเคลือบผิว | 1 | 51125A2F799 | Shop at ECS Tuning | ||||||
| 02 | แผ่นปิด,หูลาก,ด้านหลัง, ลงสีพื้น | 1 | 51125A2F830 | Shop at ECS Tuning | ||||||
| 03 | แผงปิด, กันชน, ด้านหลัง, ด้านล่าง | JCW SCHWARZ HGL | 1 | 51125A2F9F3 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | หมุดขยาย | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 05 | ตัวนำร่องสำหรับกันชนด้านหลังซ้าย | 1 | 51125A2F823 | Shop at ECS Tuning | ||||||
| 05 | ตัวนำร่องสำหรับกันชนด้านหลังขวา | 1 | 51125A2F824 | Shop at ECS Tuning | ||||||
| 06 | ตัวนำร่องสำหรับกันชนด้านหลังตรงกลาง | 1 | 51125A2F828 | Shop at ECS Tuning | ||||||
| 07 | ชุดการยึดเซ็นเซอร์ PDC ด้านหลัง | 1 | 51125B389C3 | Shop at ECS Tuning | ||||||
| 08 | แผ่นปิดช่องระบายอากาศ ด้านหลัง | 1 | 51125A2FB49 | Shop at ECS Tuning | ||||||
| 09 | น็อต | 1 | 07147305178 | Shop at ECS Tuning | ||||||
| 10 | น็อตหัวหมวกพลาสติกพร้อมแหวนรอง | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 11 | โบลท์หัวหกเหลี่ยม | TS5X20 SW8 D=22 | 8 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 12 | สกรูหัวทรงกระบอก | ST5X17-ZNS3 | 6 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 13 | น็อตแบบเสียบ | 6 | 51127461407 | Shop at ECS Tuning | ||||||
| 14 | สกรูทอกซ์ | 2 | 07149194838 | $0.38 | Shop at ECS Tuning | |||||
| 15 | ไบลด์รีเว็ต, หัวแบน | M5 | 2 | 07147411141 | Shop at ECS Tuning | |||||
| 16 | คลิป C, น็อตพลาสติก | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี Driving Assistant |
S5ASA=ใช่ |
|||||||||
| 17 | กรวยรองรับแรงกระแทกด้านหลังซ้าย | 1 | 51125A2FB53 | Shop at ECS Tuning | ||||||
| 17 | กรวยรองรับแรงกระแทกด้านหลังขวา | 1 | 51125A2FB54 | Shop at ECS Tuning | ||||||
