แผงป้องกันใต้ท้องรถ for BMW MINI F66 JCW

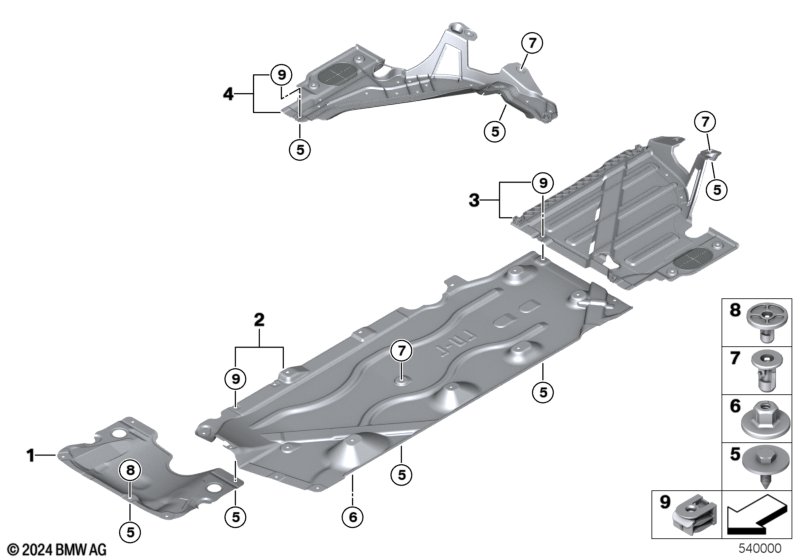

This แผงป้องกันใต้ท้องรถ technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | แผ่นปิดใต้ท้องรถ, ด้านข้างซ้าย | 1 | 51757290803 | NoS | Shop at ECS Tuning | |||||
| 02 | แผ่นปิดใต้ท้องรถ, ด้านข้างขวา | 1 | 51757290804 | NoS | Shop at ECS Tuning | |||||
| 03 | แผงปิดใต้ถังน้ำมัน, ด้านซ้าย | 1 | 51755A34051 | Shop at ECS Tuning | ||||||
| 04 | แผงปิดใต้ถังน้ำมัน, ด้านขวา | 1 | 51755A34052 | Shop at ECS Tuning | ||||||
| 05 | โบลท์หัวหกเหลี่ยม | TS5X20SW10 D=22 | 23 | 07149481168 | Shop at ECS Tuning | |||||
| 06 | น็อตหัวหมวกพลาสติกพร้อมแหวนรอง | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 07 | น็อตแบบถ่างตัวออก | L=18.4, DMAX=18 | 10 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 08 | น็อตแบบถ่างตัวออก | L= 19.9MM | 5 | 07147306224 | Shop at ECS Tuning | |||||
| 09 | คลิป C, น็อตพลาสติก | TS5 | 9 | 07147311312 | Shop at ECS Tuning |
Notes
- NoS = No Stock (ไม่มีการเก็บชิ้นส่วนที่อยู่ตรงกลาง)
