Black Band, JCW for BMW MINI F55 LCI One

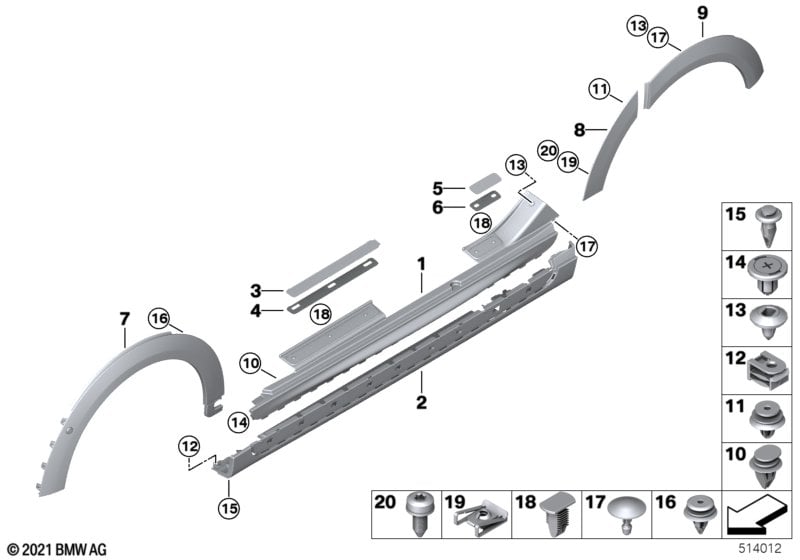

This Black Band, JCW technical drawing provides a detailed breakdown of the assembly for the MINI F55 LCI One. It includes part names, part numbers and all associated mounting hardware.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | สำหรับรถยนต์ที่มี JCW, ชุดแอโรไดนามิกส์ |
S3A1A=ใช่ |
||||||||
| สำหรับรถยนต์ที่มี JCW, ชุดแอโรไดนามิกส์ |
S3A1A=ใช่ |
|||||||||
| 01 | แผ่นปิดแผงบันได, ลงสีพื้น, ด้านซ้าย | JOHN COOPER W | 1 | 51777398781 | Shop at ECS Tuning | |||||
| 01 | แผ่นปิดแผงบันได, ลงสีพื้น, ด้านขวา | JOHN COOPER W | 1 | 51777398782 | Shop at ECS Tuning | |||||
| 02 | แผ่นปิดแผงบันได ด้านซ้าย | JOHN COOPER W. | 1 | 51777381033 | Shop at ECS Tuning | |||||
| 02 | แผ่นปิดแผงบันได ด้านขวา | JOHN COOPER W. | 1 | 51777381034 | Shop at ECS Tuning | |||||
| 03 | แผ่นปิดกรอบประตูด้านหน้า | JOHN COOPER W. | 2 | 51775A393F4 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | แผ่นกาว, ด้านหน้า | 1 | 51777403246 | Shop at ECS Tuning | ||||||
| 04 | แผ่นกาว, ด้านหน้า | 2 | 51777403246 | Shop at ECS Tuning | ||||||
| สำหรับรถยนต์ที่มี JCW, ชุดแอโรไดนามิกส์ |
S3A1A=ใช่ |
|||||||||
| 05 | แผ่นปิด, กรอบประตู, ด้านหลัง | JOHN COOPER W. | 2 | 51775A393F5 | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | แผ่นกาว, ด้านหลัง | 1 | 51777403247 | Shop at ECS Tuning | ||||||
| 06 | แผ่นกาว, ด้านหลัง | 2 | 51777403247 | Shop at ECS Tuning | ||||||
| สำหรับรถยนต์ที่มี JCW, ชุดแอโรไดนามิกส์ และ ระบบช่วยในการจอด |
S3A1A=ใช่ S5DPA=ไม่ |
|||||||||
| 07 | แผ่นปิดบังโคลนล้อด้านหน้าซ้าย | 1 | 51119450649 | Shop at ECS Tuning | ||||||
| 07 | แผ่นปิดบังโคลนล้อด้านหน้าขวา | 1 | 51119450650 | Shop at ECS Tuning | ||||||
| สำหรับรถยนต์ที่มี JCW, ชุดแอโรไดนามิกส์ และ ระบบช่วยในการจอด |
S3A1A=ใช่ S5DPA=ใช่ |
|||||||||
| 07 | แผ่นปิด, บังโคลนล้อ, ด้านหน้าซ้าย | PMA | 1 | 51115A3C7F1 | Shop at ECS Tuning | |||||
| 07 | แผ่นปิด, บังโคลนล้อ, ด้านหน้าซ้าย | PMA | 1 | 51115A3C7F2 | Shop at ECS Tuning | |||||
| 08 | แผ่นปิดประตูด้านหลังซ้าย | 1 | 51779881803 | Shop at ECS Tuning | ||||||
| 08 | แผ่นปิดประตูด้านหลังขวา | 1 | 51779881804 | Shop at ECS Tuning | ||||||
| 09 | แผ่นปิดบังโคลนล้อด้านหลังซ้าย | 1 | 51119450675 | Shop at ECS Tuning | ||||||
| 09 | แผ่นปิดบังโคลนล้อด้านหลังขวา | 1 | 51119450676 | Shop at ECS Tuning | ||||||
| 10 | คลิป | SCHWARZ / BLACK | 20 | 07131480419 | $0.75 | Shop at ECS Tuning | ||||
| 11 | คลิปยึดพร้อมแหวนรองสีเทา | 18 | 07142754954 | $0.64 | Shop at ECS Tuning | |||||
| 12 | คลิป C, น็อตพลาสติก | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 13 | คลิปยึดส่วนล่าง | 12 | 51717154239 | $0.79 | Shop at ECS Tuning | |||||
| 14 | หมุดขยาย | 6 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 15 | หมุดขยาย | 2 | 07147422322 | Shop at ECS Tuning | ||||||
| 16 | คลิปสีธรรมชาติ | 4 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 17 | คลิปยึดส่วนบน | 16 | 51417008526 | $7.56 | Shop at ECS Tuning | |||||
| 18 | คลิป | 8 | 51711496621 | $0.35 | Shop at ECS Tuning | |||||
| 19 | น็อตสำหรับสายรัดรูปตัว C | 4,8 | 2 | 51779808118 | Shop at ECS Tuning | |||||
| 20 | สกรูยึดแผ่นโลหะ | ST4,8X13 ZNS3 | 2 | 07119907353 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F55 LCI One Black Band, JCW?
- This technical diagram illustrates the Black Band, JCW within the อุปกรณ์ตัวถังรถ group for the MINI F55 LCI One. It provides a detailed exploded view of the components, identifying key parts such as the แผ่นปิดแผงบันได, ลงสีพื้น, ด้านซ้าย (Part #51777398781).
- Which models use the hardware listed in this Black Band, JCW?
- The hardware and components featured in the Black Band, JCW are specific to the MINI F55 LCI One. These technical specifications ensure that parts like the แผ่นปิดแผงบันได, ลงสีพื้น, ด้านซ้าย (51777398781) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Black Band, JCW assembly?
- Each item in the Black Band, JCW corresponds to the numbered list below the illustration. For the MINI F55 LCI One, you can identify the แผ่นปิดแผงบันได, ลงสีพื้น, ด้านซ้าย by locating its position on the schematic, which then links to the official BMW part number 51777398781 for the อุปกรณ์ตัวถังรถ section.
