ชุดจับยึด, หลังคาแบบพับทบ for BMW MINI Cabrio R52 Cooper (2002)

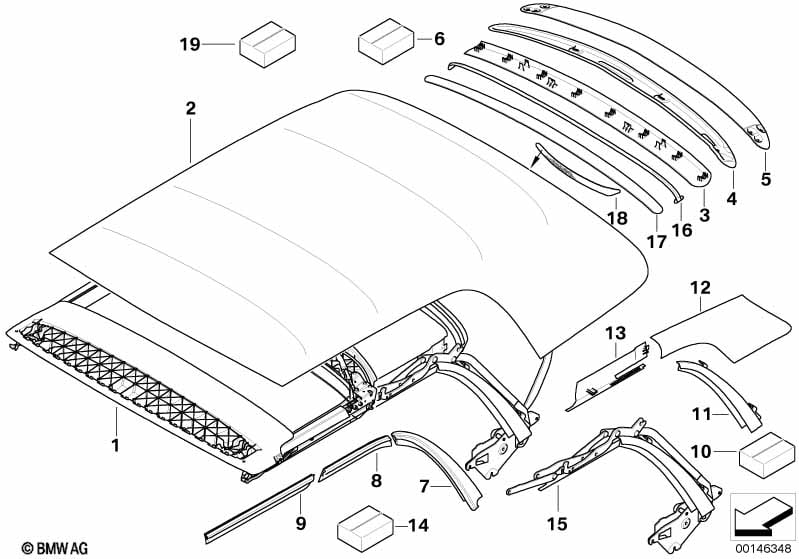

This ชุดจับยึด, หลังคาแบบพับทบ technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | โครงหลังคาแบบพับ | 1 | 07/2006 | 54347180037 | $3856.14 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ชุดหลังคาแบบพับตรงกลาง | 1 | 07/2006 | 54347184988 | $33.38 | Shop at ECS Tuning | ||||
| 01 | โครงหลังคาแบบพับ | 1 | 54347180037 | $3856.14 | Shop at ECS Tuning | |||||
| 02 | แผงหลังคา | SCHWARZ | 1 | 54347135290 | $1682.20 | Shop at ECS Tuning | ||||
| 02 | แผงหลังคา | SCHWARZ | 1 | 54347135290 | $1682.20 | Shop at ECS Tuning | ||||
| 03 | แผ่นปิด ด้านหลัง | 1 | 54347154504 | $47.62 | Shop at ECS Tuning | |||||
| 04 | แผ่นปิดเสาหลังคา | 1 | 54347162734 | $75.28 | Shop at ECS Tuning | |||||
| 05 | ที่ยึดโครงหลังคา ด้านหลัง | 1 | 54347154503 | $109.52 | Shop at ECS Tuning | |||||
| 06 | ชุดจับยึดเสาหลังคา | 1 | 54347162748 | $37.07 | Shop at ECS Tuning | |||||
| 07 | ปะเก็น ด้านหลังซ้าย | 1 | 07/2006 | 54347194447 | $120.17 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ซีลรางเลื่อน ด้านหลังซ้าย | 1 | 07/2006 | 54347194445 | $83.89 | Shop at ECS Tuning | ||||
| 07 | ปะเก็น ด้านหลังขวา | 1 | 07/2006 | 54347194448 | $120.17 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ซีลรางเลื่อน ด้านหลังขวา | 1 | 07/2006 | 54347194446 | $89.61 | Shop at ECS Tuning | ||||
| 07 | ปะเก็น ด้านหลังซ้าย | 1 | 54347194447 | $120.17 | Shop at ECS Tuning | |||||
| 07 | ปะเก็น ด้านหลังขวา | 1 | 54347194448 | $120.17 | Shop at ECS Tuning | |||||
| 08 | ปะเก็นโครงหลังคาด้านซ้าย | 1 | 54347177319 | $105.90 | Shop at ECS Tuning | |||||
| 08 | ปะเก็นโครงหลังคาด้านขวา | 1 | 54347177320 | $105.90 | Shop at ECS Tuning | |||||
| 09 | ซีลด้านหน้าซ้าย | 1 | 54347121573 | $117.85 | Shop at ECS Tuning | |||||
| 09 | ซีลด้านหน้าขวา | 1 | 54347121574 | $117.85 | Shop at ECS Tuning | |||||
| 10 | ชุดจับยึดชุดแกนหลังคา | 1 | 54347162749 | $75.74 | Shop at ECS Tuning | |||||
| 11 | ซีลรางเลื่อน ด้านหลังซ้าย | 1 | 07/2006 | 54347194445 | $83.89 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ปะเก็น ด้านหลังซ้าย | 1 | 07/2006 | 54347194447 | $120.17 | Shop at ECS Tuning | ||||
| 11 | ซีลรางเลื่อน ด้านหลังขวา | 1 | 07/2006 | 54347194446 | $89.61 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ปะเก็น ด้านหลังขวา | 1 | 07/2006 | 54347194448 | $120.17 | Shop at ECS Tuning | ||||
| 11 | ซีลรางเลื่อน ด้านหลังซ้าย | 1 | 54347194445 | $83.89 | Shop at ECS Tuning | |||||
| 11 | ซีลรางเลื่อน ด้านหลังขวา | 1 | 54347194446 | $89.61 | Shop at ECS Tuning | |||||
| 12 | แผ่นปิดแผงหลังคาด้านซ้าย | 1 | 54347132819 | $141.25 | Shop at ECS Tuning | |||||
| 12 | แผ่นปิดแผงหลังคาด้านขวา | 1 | 54347132820 | $141.25 | Shop at ECS Tuning | |||||
| 13 | แผ่นปิด ด้านหลังซ้าย | 1 | 54347154511 | $21.69 | Shop at ECS Tuning | |||||
| 13 | แผ่นปิด ด้านหลังขวา | 1 | 54347154512 | $21.69 | Shop at ECS Tuning | |||||
| 14 | ชุดจับยึดปะเก็น | 1 | 54347162750 | $83.52 | Shop at ECS Tuning | |||||
| 15 | ชุดข้อต่อ | 1 | 07/2006 | 54347165443 | ENDED | Shop at ECS Tuning | ||||
| 15 | โครงหลังคาแบบพับ | 1 | 07/2006 | 54347180037 | $3856.14 | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ชุดหลังคาแบบพับตรงกลาง | 1 | 07/2006 | 54347184988 | $33.38 | Shop at ECS Tuning | ||||
| 15 | โครงหลังคาแบบพับ | 1 | 54347180037 | $3856.14 | Shop at ECS Tuning | |||||
| 16 | โครงสำหรับผ้าคลุมหลังคา | 1 | 54347162757 | $108.95 | Shop at ECS Tuning | |||||
| 17 | ฐานรองรับ, แผ่นปิดโครง | 1 | 54347173662 | $33.40 | Shop at ECS Tuning | |||||
| 18 | แผ่นปิดกระจกหลัง, ด้านบน | 2 | 54347164589 | $31.36 | Shop at ECS Tuning | |||||
| 19 | ชุดชิ้นส่วนอะไหล่บริการ White Marks | 1 | 54347171047 | $116.34 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
