ชุดสายไฟ for BMW 3 Series E30 M3 (1990)

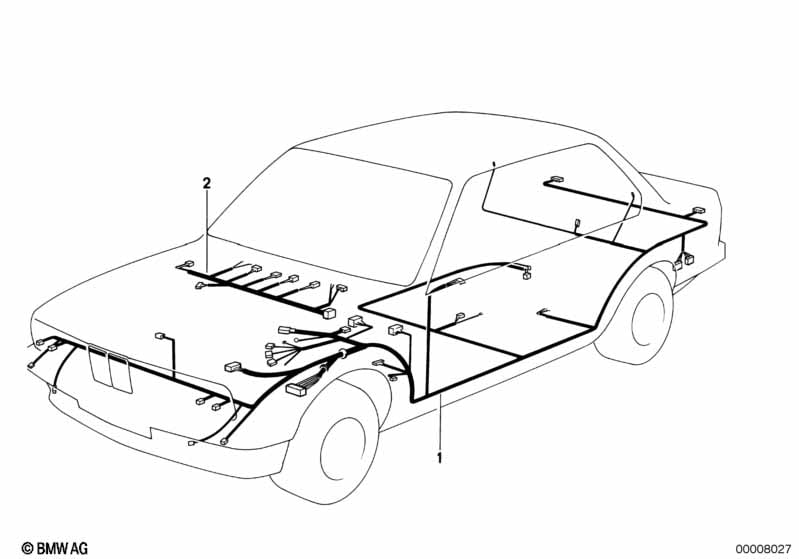

This ชุดสายไฟ technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| สำหรับรถยนต์ที่มี รุ่นประเทศญี่ปุ่น |
L807A=ใช่ |
|||||||||
| 01 | ชุดสายไฟ | 1 | 09/1989 | 61111394139 | ENDED | Shop at ECS Tuning | ||||
| 02 | ชุดสายไฟส่วนแผงหน้าปัด | 1 | 09/1987 | 61111385572 | $168.08 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 ชุดสายไฟ?
- This technical diagram illustrates the ชุดสายไฟ within the ระบบไฟฟ้าทั่วไป group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the ชุดสายไฟ (Part #61111394139).
- Which models use the hardware listed in this ชุดสายไฟ?
- The hardware and components featured in the ชุดสายไฟ are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the ชุดสายไฟ (61111394139) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ชุดสายไฟ assembly?
- Each item in the ชุดสายไฟ corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the ชุดสายไฟ by locating its position on the schematic, which then links to the official BMW part number 61111394139 for the ระบบไฟฟ้าทั่วไป section.
